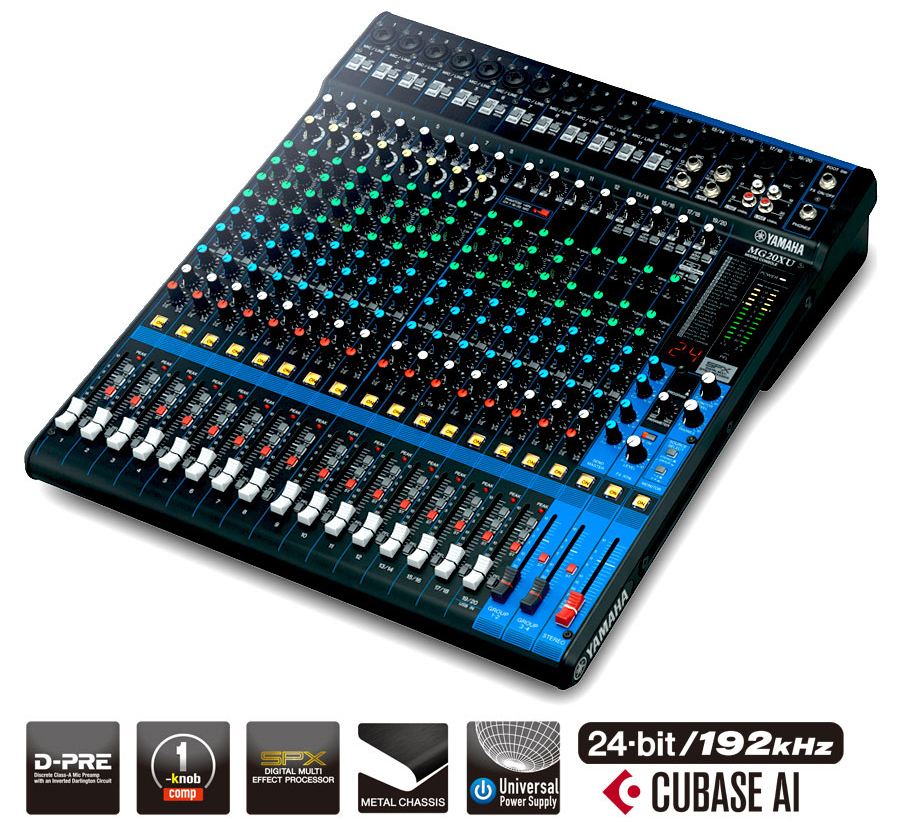

Yamaha MG20XU

  • Lees recensies (4)
  • Gerelateerde accessoires
  • Vergelijkbare producten
  • Yamaha Mg20xu - Analoge Mengtafel - Main picture
  • Yamaha Mg20xu - Analoge Mengtafel - Variation 1
  • Yamaha Mg20xu - Analoge Mengtafel - Variation 2
  • Yamaha Mg20xu - Analoge Mengtafel - Variation 3
819,00 €
  • Gratis bezorging
  • Gegarandeerd lage prijzen
  • Tevreden of terugbetaald
  • 3 jaar garantie
  • Ref : 34664
Laatst stuk
1 Kamer beschikbaar.
Binnen 2 à 3 dagen verzonden
Voorraad in de winkel
Zie beschikbaarheid. winkel
Star's Music Paris
Andere versie(s) of bijbehorende product(en)

Het merk Yamaha

Leer meer over het merk Yamaha en ontdek de volledige catalogus.

Het grootste netwerk van winkels in Frankrijk

Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

Analoge mengtafel

Here's the third generation of Yamaha MG Series: Analog mixer 20 channels with 16 Mic / 20 Line Inputs (12 mono + 4 stereo) / 4 GROUP Buses and 1 Stereo Bus / 4 AUX (incl. FX).

Its USB 2.0 interface allows 24-bit/192kHz sampling for high-res stero recording.

The MG16XU boasts an intuitive interface with capacities suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence
Lire la suite

Technisch papier

  • Aantal kanalen mengtafel 10 tot 22 kanalen
  • Mengtafel connectiviteit Zonder informatica aansluiting
  • Mixing capability
  • On-board processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
  • I/O: Phantom power +48 V
  • Digital I/O: USB Audio Class 2.0 compliant
  • Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
  • Input Channels
  • Mono[MIC/LINE] : 12
  • Mono/Stereo[MIC/LINE] : 4
  • Output Channels
  • STEREO OUT : 2
  • MONITOR OUT : 1
  • PHONES: 1
  • AUX SEND: 4
  • GROUP OUT: 4
  • Bus: Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
  • Input Channel Function
  • PAD: 26 dB (Mono)
  • HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
  • COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH : Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ MID: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
  • EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter : 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
  • General specifications
  • Total harmonic distortion : 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
  • Frequency response : +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level
  • Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise : -102 dBu (STEREO OUT, STEREO master fader: Min)
  • Crosstalk: -78 dB
  • Power requirements : AC 100 – 240 V, 50 / 60 Hz
  • Power consumption : 36 W
  • Dimensions
  • W : 444 mm (17.5")
  • H : 130 mm (5.1")
  • D : 500mm (19.7")
  • Net weight : 7.1kg (15.7 lbs.)
  • Accessories:
  • Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
  • Others
  • Operating Temperature: 0 to +40?C
Meer specificaties
