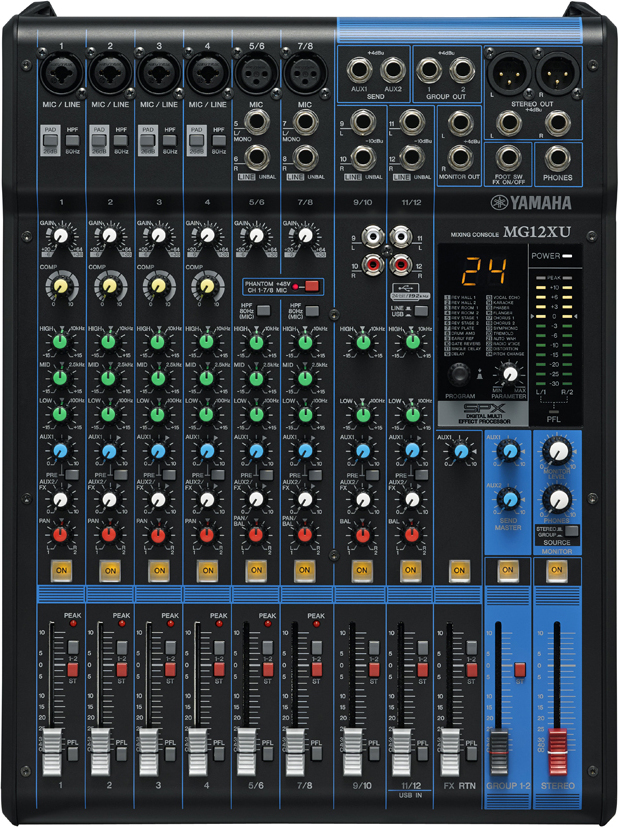

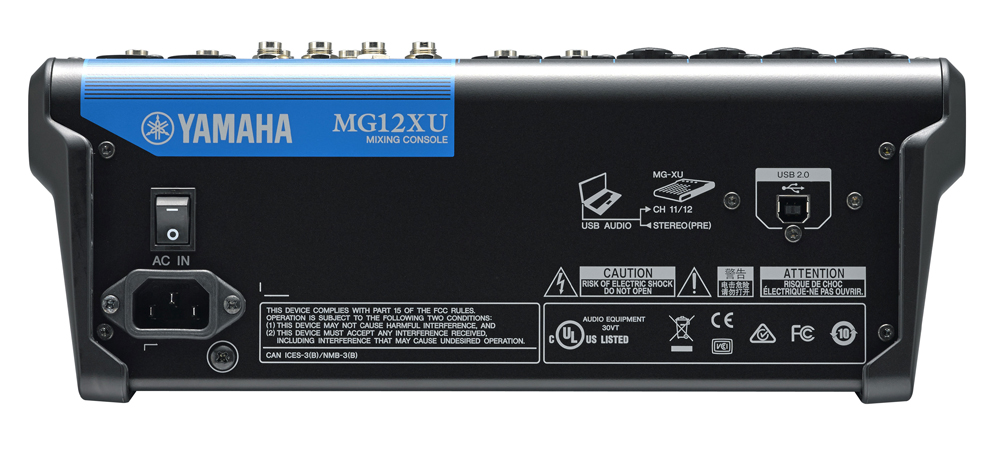

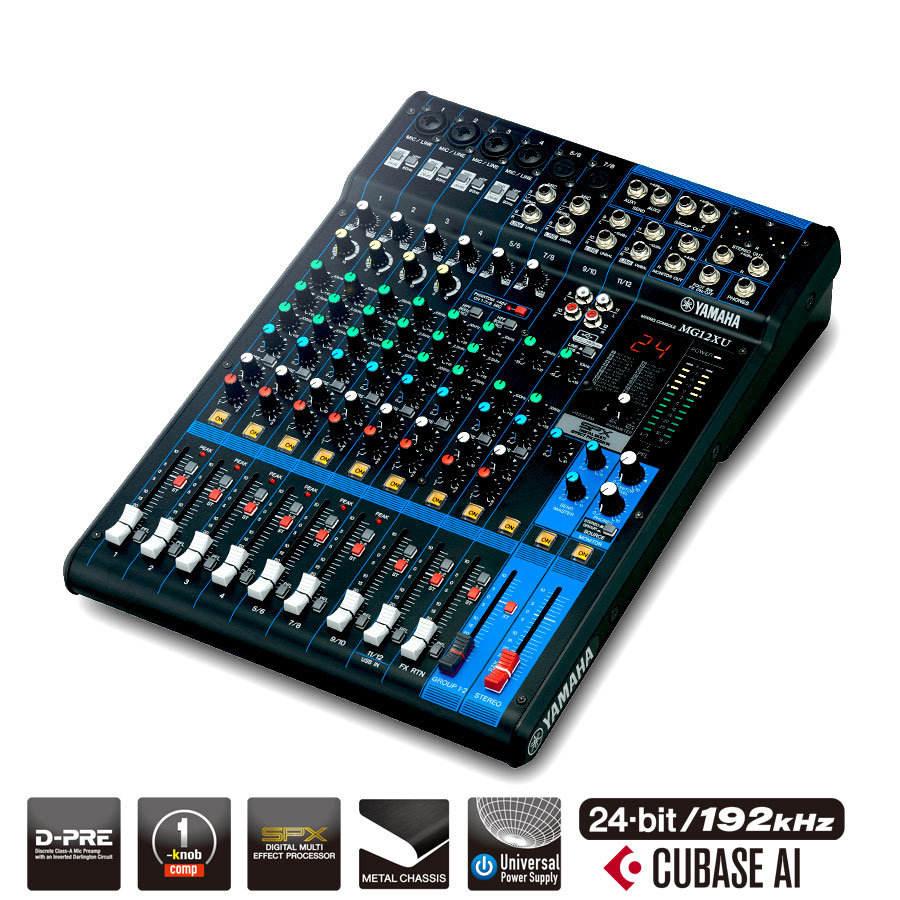

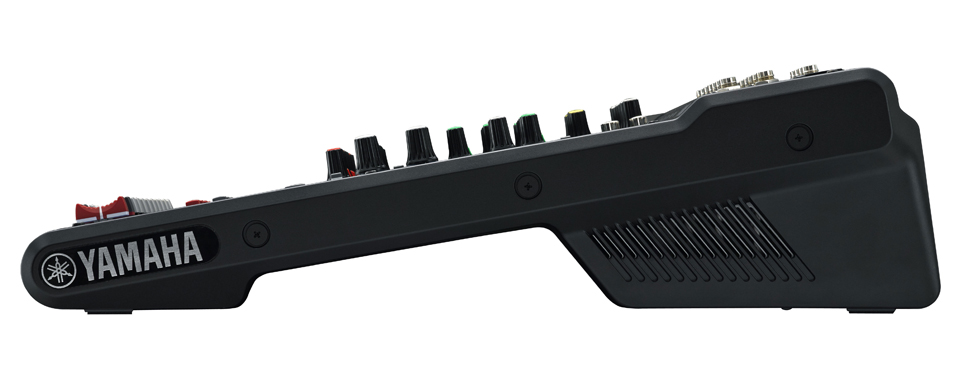

Yamaha MG12XU

  • Lees recensies (4)
  • Gerelateerde accessoires
  • Vergelijkbare producten
  • Yamaha Mg12xu - Analoge Mengtafel - Main picture
  • Yamaha Mg12xu - Analoge Mengtafel - Variation 1
  • Yamaha Mg12xu - Analoge Mengtafel - Variation 2
  • Yamaha Mg12xu - Analoge Mengtafel - Variation 3
VIDEO
VIDEO
604.80 €
444,00 €
  • Gratis bezorging
  • Gegarandeerd lage prijzen
  • Tevreden of terugbetaald
  • 3 jaar garantie
  • Ref : 34660
In voorraad
binnen 24 uur leverbaar
Voorraad in de winkel
Zie beschikbaarheid. winkel
Star's Music Bordeaux
Star's Music Bruxelles
Star's Music Lille
Star's Music Lyon
Star's Music Paris
Star's Music Toulouse
Andere versie(s) of bijbehorende product(en)

Het merk Yamaha

Leer meer over het merk Yamaha en ontdek de volledige catalogus.

Het grootste netwerk van winkels in Frankrijk

Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

Analoge mengtafel

Unveiling the third generation of Yamaha MG series with the Yamaha MG12XU mixing console, a model that packs quite a punch for its small size!

Its USB 2.0 interface allows 24-Bit/192kHz sampling for high resolution stereo recording.

These consoles offer serious presets and natural , soft and airy highs , very low distortion and an impressive bandwidth.
Lire la suite

Technisch papier

  • Aantal kanalen mengtafel 10 tot 22 kanalen
  • Mengtafel connectiviteit Zonder informatica aansluiting
  • Mixing capability
  • On-board processors
  • SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
  • I/O
  • Phantom power: +48 V
  • Digital I/O
  • USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
  • Input Channels
  • Mono[MIC/LINE]: 4
  • Mono/Stereo[MIC/LINE]: 2
  • Stereo[LINE]: 2
  • Output Channels
  • STEREO OUT: 2
  • MONITOR OUT: 1
  • PHONES: 1
  • AUX SEND: 2
  • GROUP OUT: 2
  • Bus
  • Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
  • Input Channel Function
  • PAD: 26 dB (Mono)
  • HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
  • COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ MID : Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
  • EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
  • General specifications
  • Total harmonic distortion: 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
  • Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level
  • Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
  • Crosstalk: -78 dB
  • Power requirements: AC 100 – 240 V, 50 / 60 Hz
  • Power consumption: 22 W
  • Dimensions
  • W: 308 mm (12.1")
  • H : 118 mm (4.6")
  • D : 422 mm (16.6")
  • Net weight: 4.2 kg (9.3 lbs.)
  • Accessories :
  • Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5
  • Others:
  • Operating Temperature: 0 to +40?C
Meer specificaties
Minder specificaties
