Analoge mengtafel

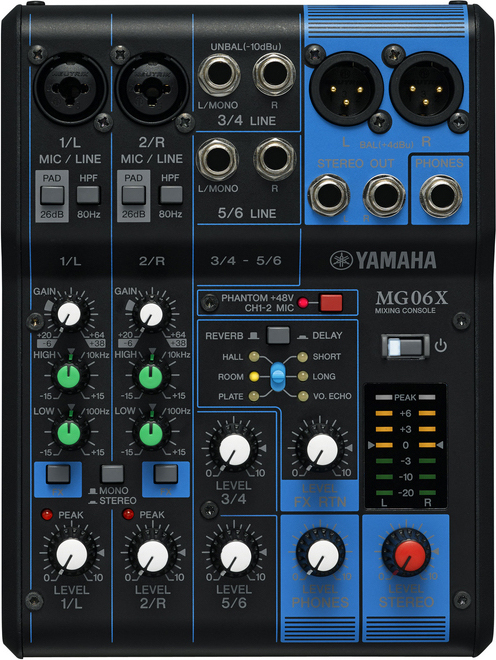

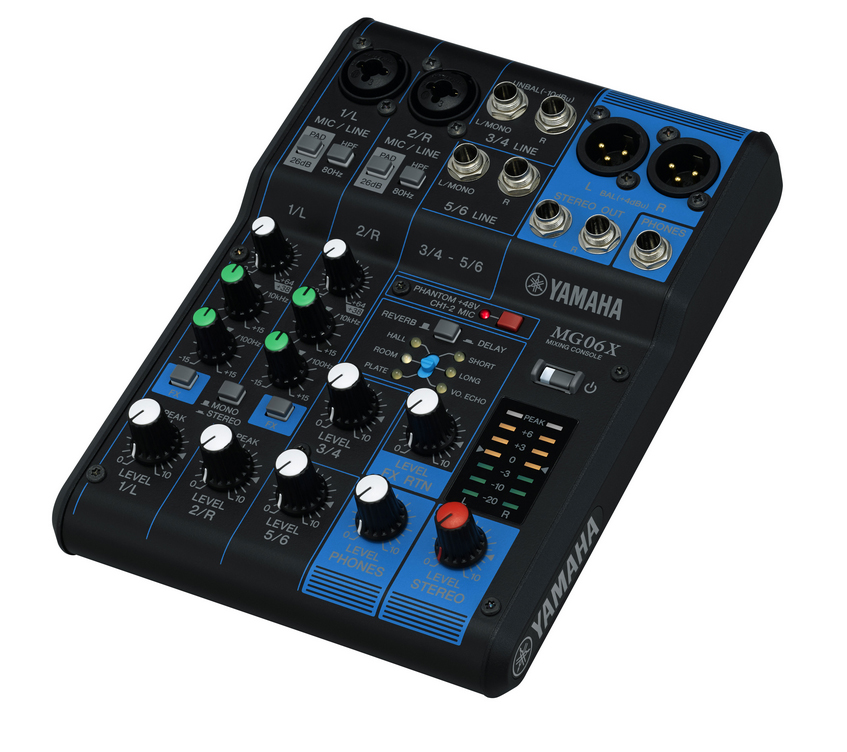

The Yamaha MG06X/strong> is a 6-channel mixing console, with high-quality D-PRE preamp,
two XLR/Jack combo inputs with 2-band tone control and including a pad switch as well as a integrated multieffects SPX circuit.
Its great sound, 6 channels and preamps allow for a warmth of sound, deep bass and natural highs.
The two stereo inputs can function as mono inputs as well.
This product is perfect for entertainers and home recorders and you can take it anywhere you want.
Equipped with SPX effects of very high quality. The MG06X also offers reverb and delay, easily modifiable via the comprehensive control panel.
two XLR/Jack combo inputs with 2-band tone control and including a pad switch as well as a integrated multieffects SPX circuit.
Its great sound, 6 channels and preamps allow for a warmth of sound, deep bass and natural highs.
The two stereo inputs can function as mono inputs as well.
This product is perfect for entertainers and home recorders and you can take it anywhere you want.
Equipped with SPX effects of very high quality. The MG06X also offers reverb and delay, easily modifiable via the comprehensive control panel.
Lire la suite
Technisch papier
- Aantal kanalen mengtafel 6 en 8 kanalen
- Mengtafel connectiviteit Zonder informatica aansluiting
- Mixing capability
- On-board processors : SPX algorithm: 6 programs
- I/O
- Phantom power : +48 V
- Input Channels
- Mono[MIC/LINE] 2
- Stereo[LINE] : 2
- Output Channels
- STEREO OUT : 2
- PHONES : 1
- Bus
- Stereo: 1
- Input Channel
- Function
- PAD : 26 dB (Mono)
- HPF : 80 Hz, 12 dB/oct (Mono)
- EQ HIGH : (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ LOW : (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter : 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
- General specifications
- Total harmonic distortion : 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
- Frequency response : +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level :
- Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Residual output noise : -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
- Crosstalk : -88 dB
- Power requirements : PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
- Power consumption : 12 W
- Dimensions
- W : 149 mm (5.9")
- H : 62 mm (2.4")
- D : 202 mm (7.9")
- Net weight : 0.9 kg (1.98 lbs.)
- Accessories
- Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
- Others
- Operating Temperature: 0 to +40?C
Meer specificaties
Minder specificaties
