Yamaha MG06

  • Lees recensies (4)
  • Gerelateerde accessoires
  • Vergelijkbare producten

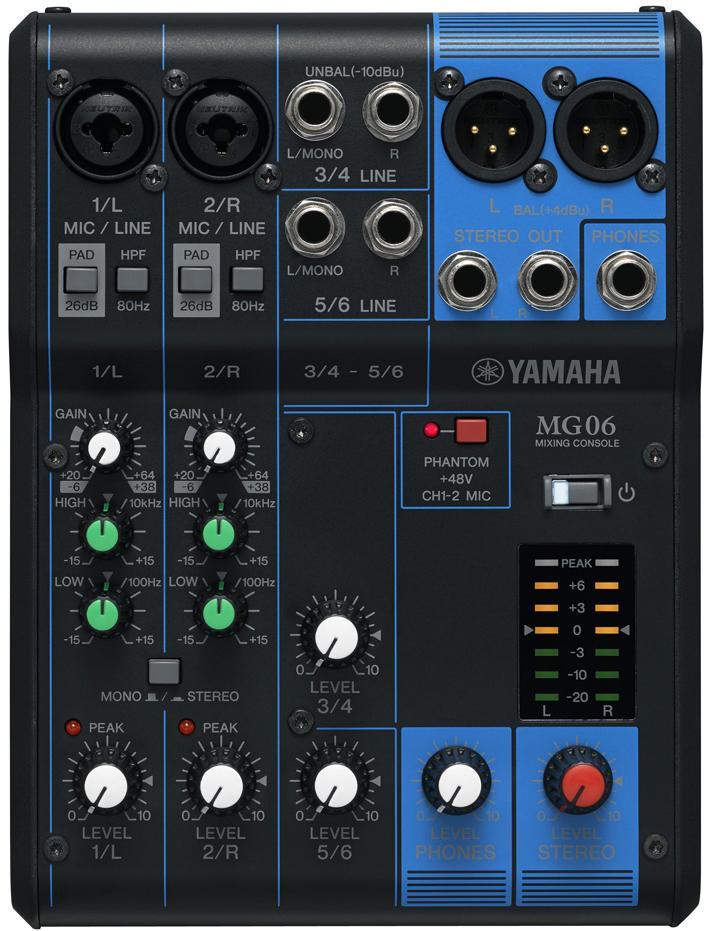

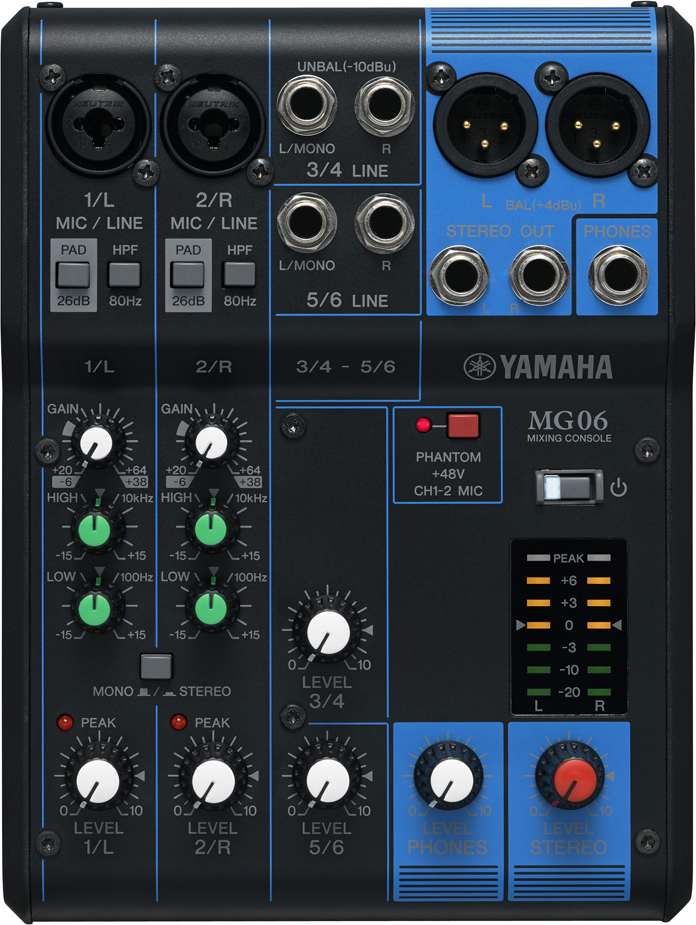

  • Yamaha Mg06 - Analoge Mengtafel - Main picture

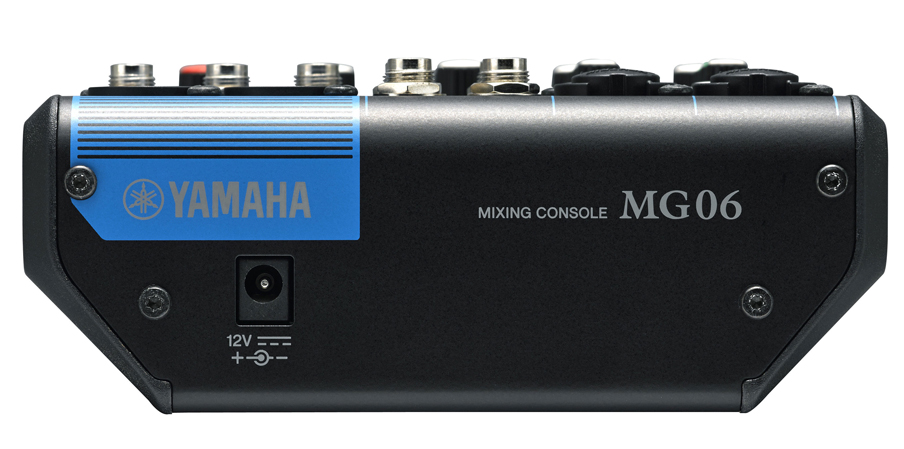

  • Yamaha Mg06 - Analoge Mengtafel - Variation 1

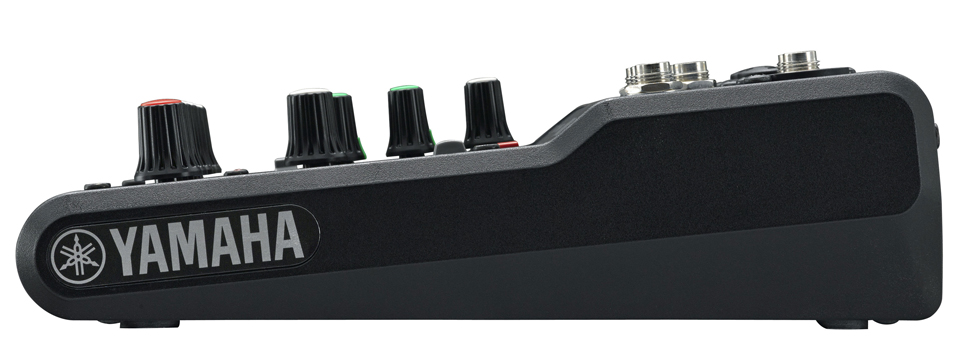

  • Yamaha Mg06 - Analoge Mengtafel - Variation 2

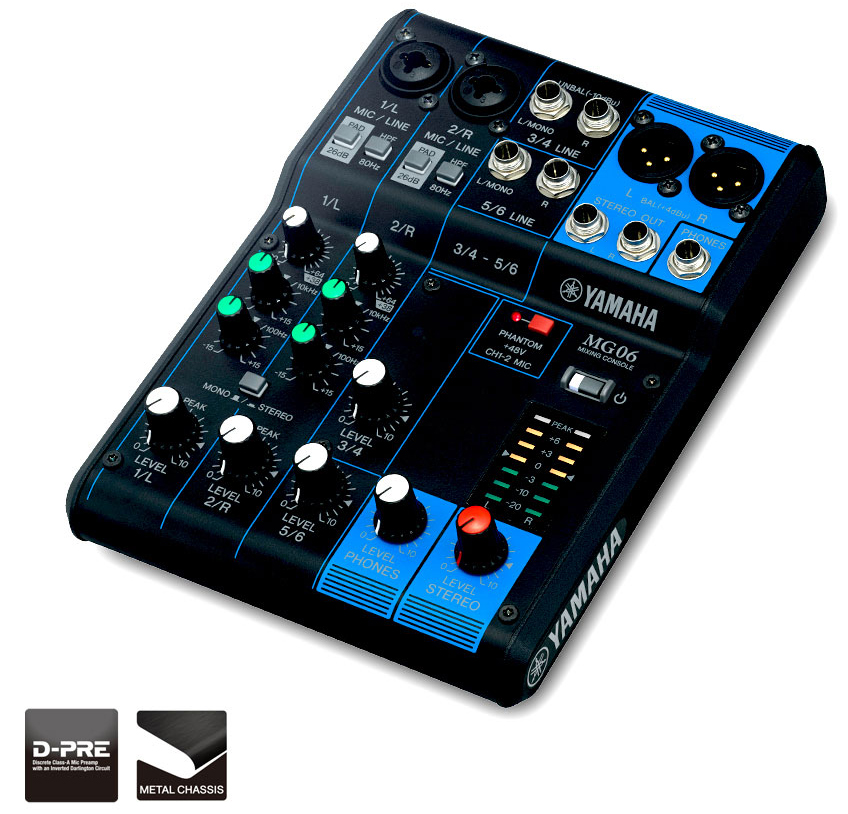

  • Yamaha Mg06 - Analoge Mengtafel - Variation 3
180.00 €
132,00 €
  • Gratis bezorging
  • Gegarandeerd lage prijzen
  • Tevreden of terugbetaald
  • 3 jaar garantie
  • Ref : 34649
In voorraad
binnen 24 uur leverbaar
Voorraad in de winkel
Zie beschikbaarheid. winkel
Star's Music Bordeaux
Star's Music Bruxelles
Star's Music Lille
Star's Music Lyon
Star's Music Paris
Star's Music Toulouse
Andere versie(s) of bijbehorende product(en)

Het merk Yamaha

Leer meer over het merk Yamaha en ontdek de volledige catalogus.

Het grootste netwerk van winkels in Frankrijk

Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

Analoge mengtafel

The Yamaha MG06 is a 6-channel mixing console, with high-quality D-PRE preamp,
two XLR/Jack combo inputs with 2-band tone control and including a pad switch as well as a high pass filter of 80 Hz.


Its great sound, 6 channels and preamps allow for a warmth of sound, deep bass and natural highs.
The two stereo inputs can function as mono inputs as well.

This product is perfect for entertainers and home recorders and you can take it anywhere you want.
Lire la suite

SPECIFICATIES

  • Aantal kanalen mengtafel : 6 en 8 kanalen
  • Mengtafel connectiviteit : zonder informatica aansluiting
  • I/O
  • Phantom power : +48 V
  • Input Channels
  • Mono[MIC/LINE] : 2
  • Stereo[LINE] : 2
  • Output Channels
  • STEREO OUT : 2
  • PHONES : 1
  • Bus
  • Stereo: 1
  • Input Channel
  • Function
  • PAD : 26 dB (Mono)
  • HPF : 80 Hz, 12 dB/oct (Mono)
  • EQ HIGH : (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ LOW : (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter : 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
  • General specifications
  • Total harmonic distortion : 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
  • Frequency response : +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level
  • Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise : -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
  • Crosstalk : -88 dB
  • Power requirements : PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
  • Power consumption : 12 W
  • Dimensions
  • W : 149 mm (5.9")
  • H : 62 mm (2.4")
  • D : 202 mm (7.9")
  • Net weight : 0.9 kg (1.98 lbs.)
  • Accessories
  • Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
  • Others :
  • Operating
Lire la suite
