Yamaha MG10

  • Lees recensies (3)
  • Gerelateerde accessoires
  • Vergelijkbare producten
  • Yamaha Mg10 - Analoge Mengtafel - Main picture
  • Yamaha Mg10 - Analoge Mengtafel - Variation 1
  • Yamaha Mg10 - Analoge Mengtafel - Variation 2
  • Yamaha Mg10 - Analoge Mengtafel - Variation 3
279.60 €
198,00 €
  • Gratis bezorging
  • Gegarandeerd lage prijzen
  • Tevreden of terugbetaald
  • 3 jaar garantie
  • Ref : 38679
In voorraad
binnen 24 uur leverbaar
Voorraad in de winkel
Zie beschikbaarheid. winkel
Star's Music Bordeaux
Star's Music Bruxelles
Star's Music Lille
Star's Music Lyon
Star's Music Paris
Star's Music Toulouse
Andere versie(s) of bijbehorende product(en)

Het merk Yamaha

Leer meer over het merk Yamaha en ontdek de volledige catalogus.

Het grootste netwerk van winkels in Frankrijk

Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

Analoge mengtafel

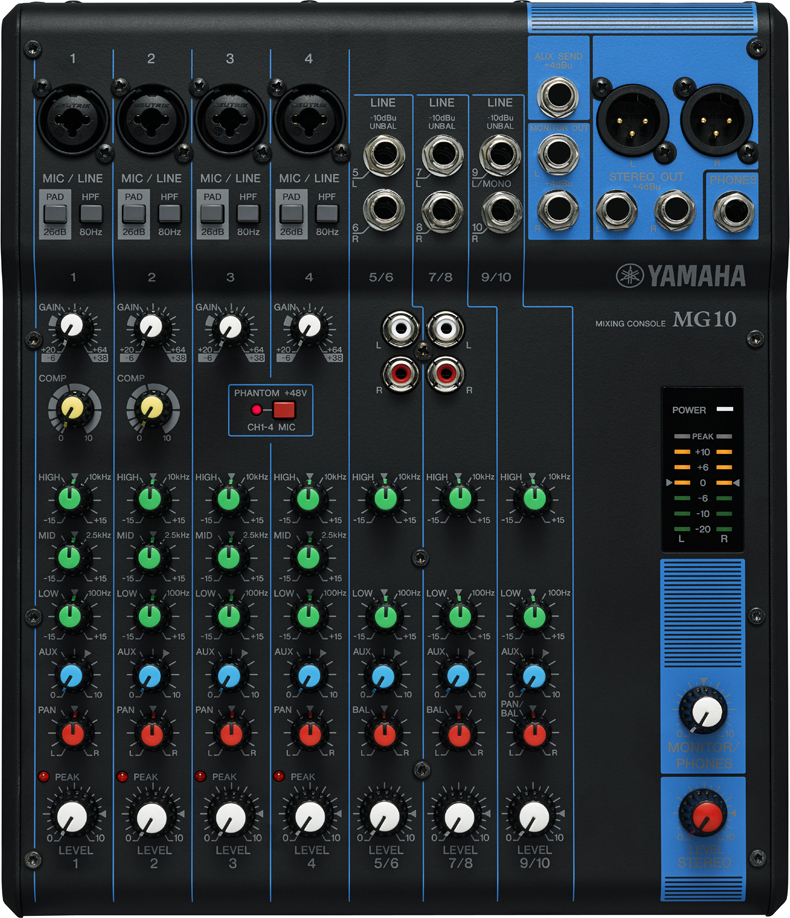

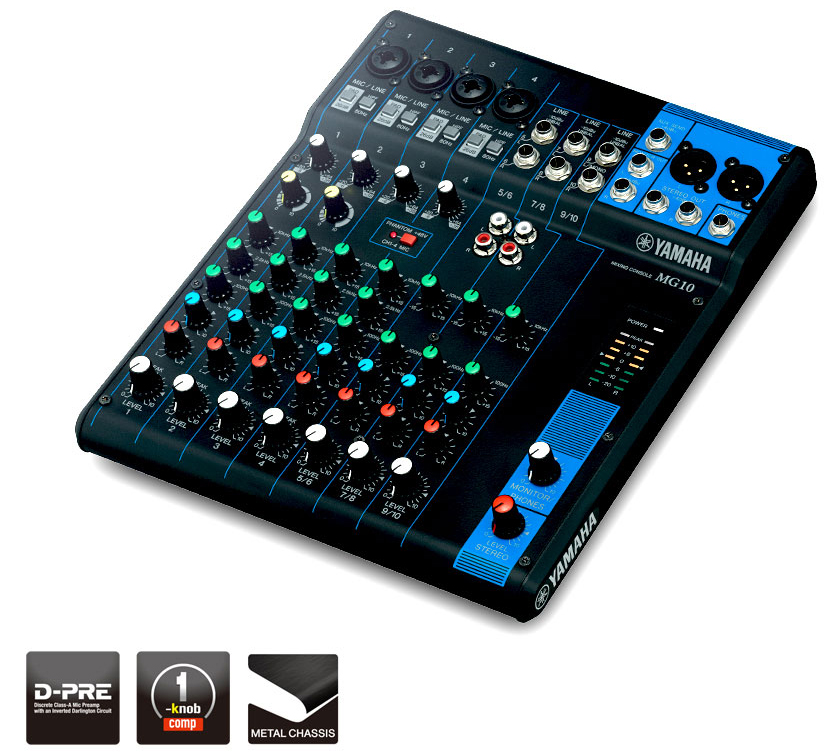

Here comes the third generation of MG series with the Yamaha MG10 mixing console, with 10 channels and 4 Mic inputs, this table is most versatile for its size.


Intuitive and easy-to-use, the solid design and capacities of those tables allows you to deliver top-notch performance.

With its high quality D-PRE preamp, its outstanding durability, and compressors coupled to the first channels for a better sound dynamic, this mixing console will satisfy every musician.
Lire la suite

Technisch papier

  • Aantal kanalen mengtafel 6 en 8 kanalen
  • Mengtafel connectiviteit Zonder informatica aansluiting
  • I/O
  • Phantom power : +48 V
  • Input Channels
  • Mono[MIC/LINE] : 4
  • Stereo[LINE] : 3
  • Output Channels
  • STEREO OUT : 2
  • MONITOR OUT : 1
  • PHONES : 1
  • AUX SEND : 1
  • Bus
  • Stereo: 1, AUX[FX]: 1
  • Input Channel Function
  • PAD 26 dB (Mono)
  • HPF 80 Hz, 12 dB/oct (Mono)
  • COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
  • EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
  • General specifications
  • Total harmonic distortion 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
  • Frequency response +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level
  • Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise : -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
  • Crosstalk : -83 dB
  • Power requirements : PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
  • Power consumption : 22.9 W
  • Dimensions
  • W : 244 mm (9.6")
  • H : 71 mm (2.8")
  • D : 294 mm (11.6")
  • Net weight : 1.9 kg (4.19 lbs.)
  • Accessories :
  • Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand
  • Adaptor BMS-10A
  • Others :
  • Operating Temperature: 0 to +40?C
Meer specificaties
