Yamaha MG20

Name: MG20
Brand: Yamaha
SKU: 38682
Availability: LimitedAvailability
Rating: 4.3 (4 reviews)

Lees recensies (4)
Gerelateerde accessoires
Vergelijkbare producten

829,00 €

Gratis bezorging
Gegarandeerd lage prijzen
Tevreden of terugbetaald
3 jaar garantie
Ref : 38682

Laatst stuk

Binnen 2 à 3 dagen verzonden

Voorraad in de winkel

Zie beschikbaarheid. winkel

•

Star's Music Bruxelles

•

Star's Music Lille

•

Star's Music Lyon

•

Star's Music Paris

•

Star's Music Toulouse

Andere versie(s) of bijbehorende product(en)

Het merk Yamaha

Leer meer over het merk Yamaha en ontdek de volledige catalogus.

Ontdekken

Het grootste netwerk van winkels in Frankrijk

Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.

meer te weten komen

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

+33 181 930 900 email

Analoge mengtafel

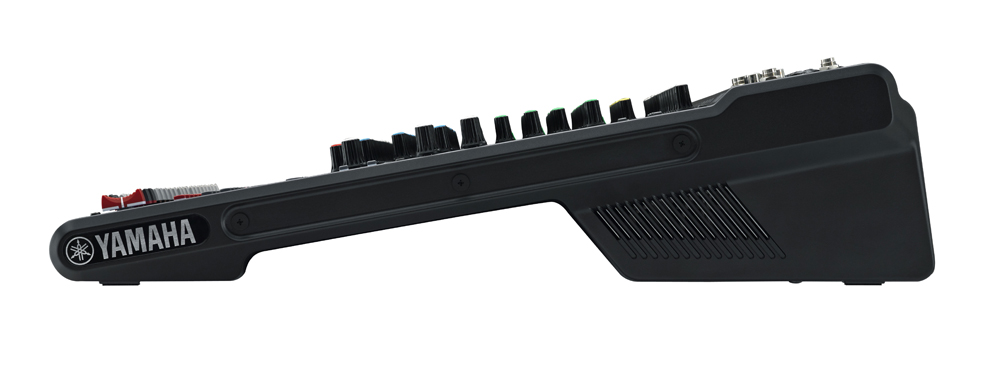

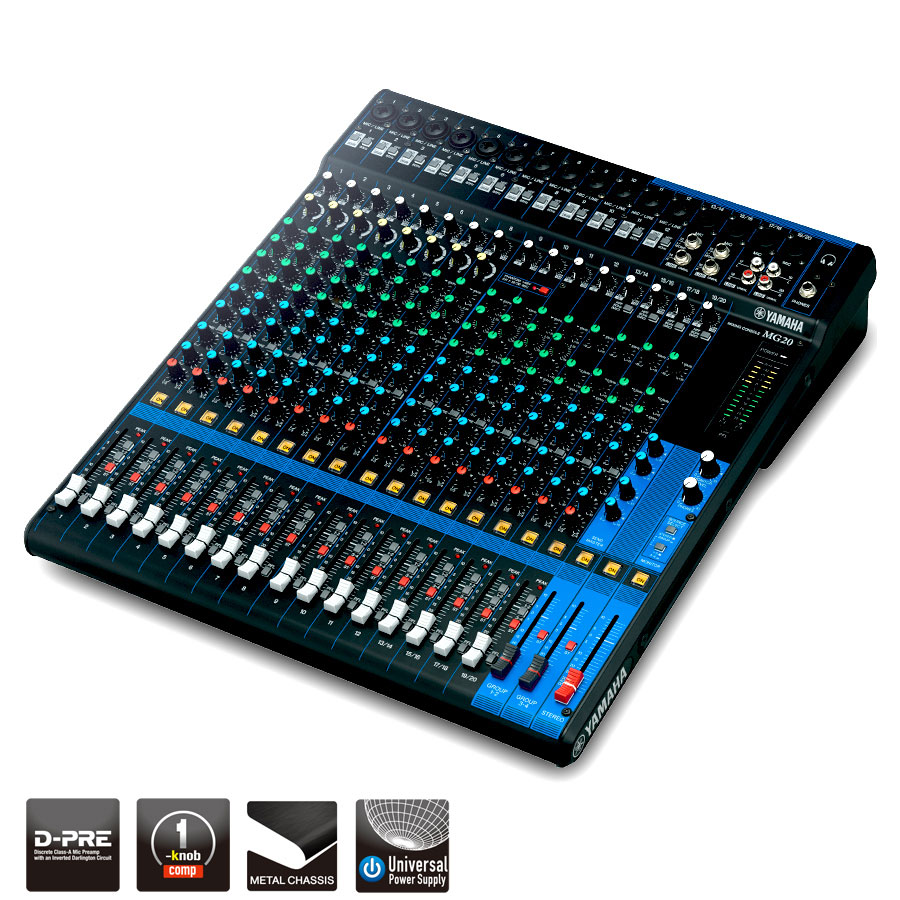

Unveiling the third generation of Yamaha MG series with the Yamaha MG20 mixing console, the largest model from the Yamaha MG standard series.

16 Microphones can be connected at the same time and it is also possible to connect a stereo source to the last channels, instead of microphones.

Combined with 4 auxiliaries, you have a mixing console with a lot of options and possibilites accounting for its size.

Technisch papier

Aantal kanalen mengtafel 10 tot 22 kanalen
Mengtafel connectiviteit Zonder informatica aansluiting

I/O
Phantom power: +48V
Input Channels
Mono[MIC/LINE] 12
Mono/Stereo[MIC/LINE] 4

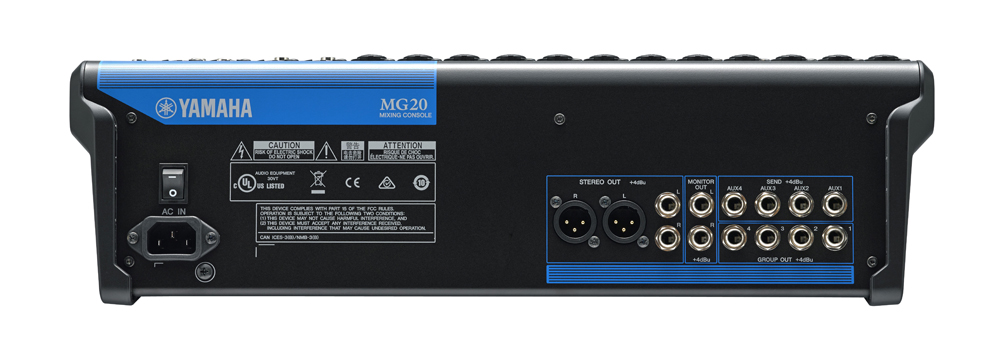

Output Channels
STEREO OUT : 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 4
GROUP OUT: 4
Bus
Stereo: 1, GROUP: 4, AUX: 4
Input Channel Function
PAD : 26 dB(Mono)
HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping(Mono)
Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
General specifications
Total harmonic distortion : 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk: -78 dB
Power requirements : AC 100 – 240 V, 50 / 60 Hz
Power consumption : 36 W
Dimensions
W: 444 mm (17.5")
H: 130 mm (5.1")
D: 500 mm (19.7")
Net weight : 6.9kg (15.2 lbs.)
Accessories : Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit
Others
Operating Temperature: 0 to +40?C
