Zoom TAC-8 thunderbolt

  • Lees recensies (0)
  • Gerelateerde accessoires
  • Vergelijkbare producten

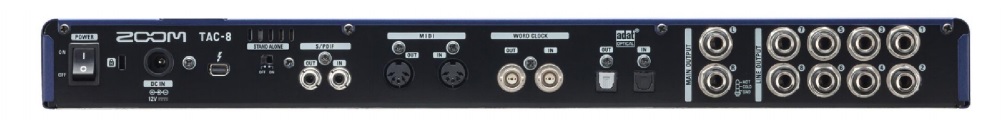

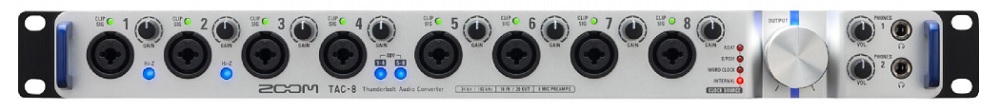

  • Zoom Tac-8 Thunderbolt - Thunderbolt audio-interface - Main picture
  • Zoom Tac-8 Thunderbolt - Thunderbolt audio-interface - Variation 1
  • Zoom Tac-8 Thunderbolt - Thunderbolt audio-interface - Variation 2
719,00 €
  • Gratis bezorging
  • Gegarandeerd lage prijzen
  • Tevreden of terugbetaald
  • 3 jaar garantie
  • Ref : 61908
Laatst stuk
1 Kamer beschikbaar.
Binnen 2 à 3 dagen verzonden
Voorraad in de winkel
Zie beschikbaarheid. winkel
Star's Music Paris

Het merk Zoom

Leer meer over het merk Zoom en ontdek de volledige catalogus.

Gids voor het kopen van geluidskaarten audio-interface

Via deze koopgids vind je alle informatie die je nodig hebt om je eerste audio-interface aan te schaffen.

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

Thunderbolt audio-interface

Last entry into the high-performance audio interfaces series "THUNDERBOLT" (10 times faster than the Firewire 800), the TAC-8 is on the cutting edge of technology. It offers, 8 analog inputs and outputs and 10 digital inputs and outputs (in S/PDIF and ADAT Optical formats), all included in a compact 1U RACK.

To put the icing on the cake: the latency is so tiny you can't even notice it.

In standalone mode, the TAC-8 can be used as an 8-channel mic preamp and analog-to-digital or digital-to-analog converter without being connected to a computer. The TAC-8 performs 4-times upsampling during both analog-to-digital and digital-to-analog conversion.
For A/D conversion, this means less aliasing noise; for D/A conversion, this means increased clarity and fidelity.

The TAC-8 also comes with MixEfx, a free Macintosh application designed specially by Zoom for the TAC-8. It provides a comprehensive onscreen mixer, with independent level, phase reversal, and panning control for each channel.
It comes with a free download license for Sternberg’s Cubase LE music production software as well.
Lire la suite

Technisch papier

  • DSP Nee
  • ANALOG INPUTS:
  • INPUTS 1–8
  • Connectors: XLR/TRS combo jacks
  • (XLR: 2 hot, TRS: TIP hot)
  • Input gain: 0–60 dB (1 dB steps)
  • In- put impedance: 5 kΩ
  • 1 MΩ (When IN1/IN2 Hi-Z on)
  • Maximum input level:
  • +13 dBu (XLR at 0 dBFS)
  • +21 dBu (TRS at 0 dBFS)
  • Phantom power: +48 V
  • ANALOG OUTPUTS:
  • MASTER OUTPUTS
  • L/R Connectors: TRS jacks (balanced)
  • ANALOG OUTPUTS:
  • LINE OUTPUTS 1-8
  • Maximum output level: +14 dBu (at 0 dBFS)
  • Output impedance: 150 Ω
  • ANALOG OUTPUTS:
  • PHONES ½
  • Connectors: Standard stereo phone jacks
  • 20 mW × 2 (into 32 Ω load)
  • Maximum output level: +10 dBu
  • Output impedance: 33 Ω
  • DIGITAL IN/OUT: ADAT OPTICAL
  • Connectors: ADAT Optical (lightpipe)
  • 8 IN/OUT: 44.1 kHz/48 kHz
  • 4 IN/OUT: 88.2kHz/96kHz, S/MUX compatible
  • 2 IN/OUT: 176.4kHz/192kHz, S/MUX4 compatible
  • DIGITAL IN/OUT: S/PDIF
  • Connectors: RCA (coaxial)
  • Supported sampling frequencies: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
  • DIGITAL IN/OUT: WORD CLOCK
  • Connectors: BNC
  • Supported sampling frequencies: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
  • Output impedance: 75 Ω
  • OTHER
  • Frequency characteristics:
  • 44.1 kHz: ?1.0 dB, 20 Hz–20 kHz
  • 96 kHz: ?1.0 dB, 20 Hz–40 kHz
  • 192 kHz: ?1.0 dB, 20 Hz–60 kHz
  • Input conversion noise: Measured EIN: 125 dB (IHF-A) at 60dB, 150Ω input
  • Dynamic range:
  • AD: 120 dB typical (IHF-A)
  • DA: 120 dB typical (IHF-A)
  • Sampling frequencies: 192 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
  • Bit depth: 24-bit
  • Interface: Thunderbolt™
  • MIDI IN/OUT: 5-pin DIN jacks
  • Power supply: AD-19 DC12V 2A AC adapter
  • External dimensions:
  • 6.2 in. (D) × 19 in. (W) × 1.8 in. (H)
  • 157.65 mm (D) × 482.6 mm (W) × 46.03 mm (H)
  • Weight (main unit only): 4.4 pounds / 2.01 kg
  • Note: 0dBm?0.775Vrms
  • Number of recording and playback channels
  • At 44.1 kHz and 48 kHz:
  • Recording: 18 channels (ANALOG: 8, S/PDIF: 2, ADAT Optical: 8)
  • Playback: 20 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 8)
  • At 88.2 kHz and 96 kHz:
  • Recording: 14 channels (ANALOG: 8, S/PDIF: 2, ADAT Optical: 4)
  • Playback: 16 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 4)
  • At 176.4 kHz and 192 kHz:
  • Recording: 12 channels (ANALOG: 8, S/PDIF: 2, ADAT Optical: 2)
  • Playback: 14 channels (ANALOG: 10, S/PDIF: 2, ADAT OPTICAL: 2)
  • TAC-8 System Requirements
  • Mac: OS: Mac® OS X 10.9.5 or later / 10.10 / 10.11
  • Thunderbolt-equipped Macintosh computers
