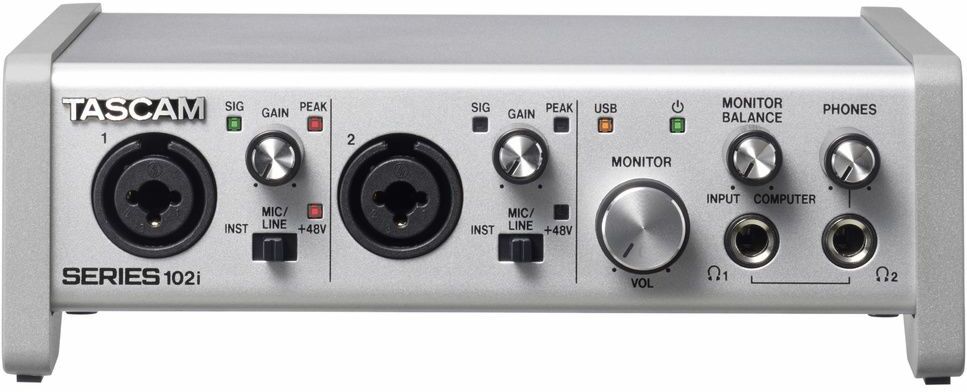

  • Tascam Series 102i - USB audio-interface - Main picture

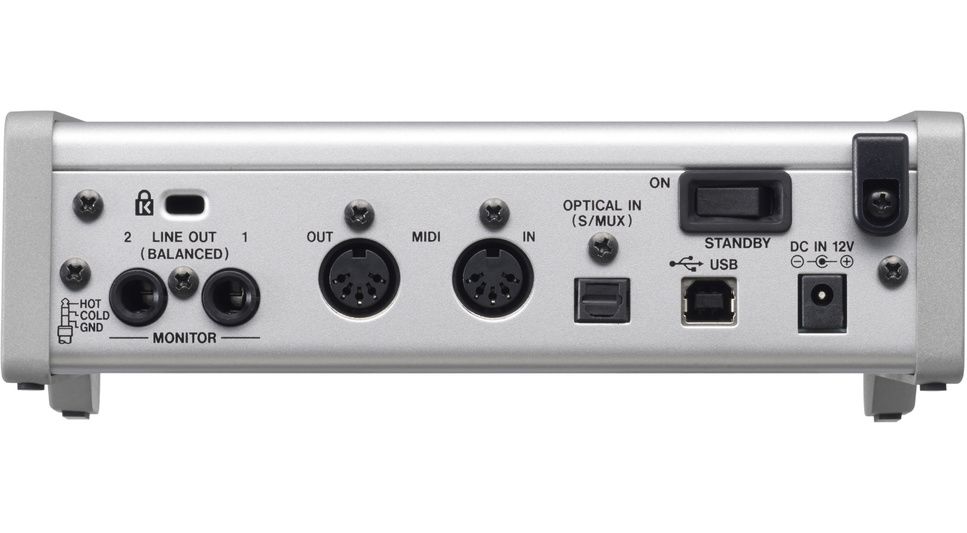

  • Tascam Series 102i - USB audio-interface - Variation 1

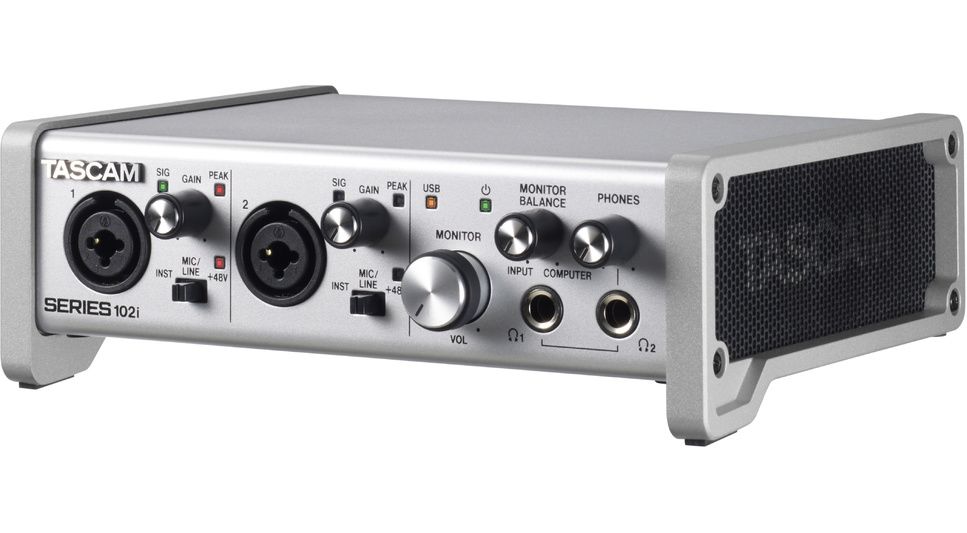

  • Tascam Series 102i - USB audio-interface - Variation 2
370.80 €
259,00 €
  • Gratis bezorging
  • Gegarandeerd lage prijzen
  • Tevreden of terugbetaald
  • 3 jaar garantie
  • Ref : 92259
In voorraad
binnen 24 uur leverbaar
Voorraad in de winkel
Zie beschikbaarheid. winkel
Star's Music Paris

Het merk Tascam

Leer meer over het merk Tascam en ontdek de volledige catalogus.

Gids voor het kopen van geluidskaarten audio-interface

Via deze koopgids vind je alle informatie die je nodig hebt om je eerste audio-interface aan te schaffen.

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

Usb audio-interface

The Tascam Series 102I is a 10-input and 2-output audio interface.

Provides up to 10 audio inputs and 2 audio outputs to your computer under MacOS or Windows or to your device under iOS
- Audio resolution up to 192 kHz / 24 bit
- USB Audio Compliance 2.0 for use under iOS

Hardware features
- 2 analog mic/line inputs on balanced Combo connectors (mixed XLR/ TRS jacks)
- High-end microphone preamps, using Ultra-HDDA (High Definition Discrete Architecture) technology, for ultra-low background noise (EIN : -127 dBu)
- High quality audio input circuits for low background noise on recordings
- 48-volt phantom power supply can be switched separately to XLR inputs
- Each TRS input can be switched to instrument position for direct recording of an electric guitar or bass
- Gain adjustment and signal presence and clipping indicators on each analog input
- Multi-channel optical audio input for up to eight additional inputs ideal for use with the Tascam SERIES 8p Dyna microphone preamplifier
- S/MUX format with support for high sampling rates (ADAT compatible): 8 inputs at 44.1/48 kHz, 4 inputs at 88.2/96 kHz, 2 inputs at 176.4/192 kHz
- 2 line outputs (Monitor) on balanced TRS jack, with volume control
- Direct Monitor option, for low latency listening
- Monitor Balance potentiometer to mix the live input signals with the signal read on the computer
- 2 headphone outputs on 6.35 mm stereo jack, with volume control (power 2 x 18 mW)
- MIDI Input/Output
- Mains power supply, via dedicated PS-P1220E power supply unit (delivered)
- Robust metal frame
Lire la suite

Technisch papier

  • DSP Nee
  • General information
  • Sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
  • Digital resolution: 16/24 bits
  • Analog audio inputs
  • Microphone inputs (when the input selector is set to MIC/LINE position)
  • XLR-3-3-31 (1: mass, 2: hot spot, 3: cold spot)
  • Input impedance: 1.5 kΩ
  • Nominal input level: -64 dBu (0.0005 Vrms, input level on maximum), -6 dBu (0.388 Vrms, input level on minimum)
  • Maximum input level: +10 dBu (2.45 Vrms)
  • Maximum gain: 58 dB
  • Instrument inputs (input selector in INST position)
  • 6.35 mm TS jack connector (tip: hot point, body: ground)
  • Input impedance: ?1 MΩ MΩ
  • Nominal input level: -64 dBV (0.0006 Vrms, input level on maximum), -6 dBV (0.501 Vrms, input level on minimum)
  • Maximum input level: +10 dBV (3.162 Vrms)
  • Maximum gain: 58 dB
  • Line Inputs (MIC/LINE input selector switch)
  • TRS connector 6.3 mm, symmetrical (tip: hot point, ring: cold point, body: ground)
  • Input impedance: 10 kΩ
  • Nominal input level: -54 dBu (0.0015 Vrms, input level on maximum), +4 dBu (1.228 Vrms, input level on minimum.)
  • Maximum input level: +24 dBu (12.282 Vrms)
  • Maximum gain: 58 dB
  • Analog audio outputs
  • Line outputs (balanced)
  • TRS connector 6.3 mm, symmetrical (tip: hot point, ring: cold point, body: ground)
  • Output impedance: 230 Ω
  • Nominal output level: +4 dBu (1.228 Vrms)
  • Maximum output level: +20 dBu (7.75 Vrms)
  • Headphone outputs (PHONES)
  • Stereo jack connector 6.35 mm
  • Maximum output power (THD+N ?0,1 %, 32 Ω) SERIES 102i: 18 mW + 18 mW
  • Digital audio inputs/outputs
  • OPTICAL IN (S/MUX) Optical connector(s) (JEITA RC-5720C)
  • Signal format Multi-channel optical port
  • (S/MUX compatible to work in 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz.)
  • Other entries and exits
  • USB: type B, 4 points
  • High speed' USB 2.0 transfer rate (480 Mbit/s)
  • 5-pin DIN MIDI input/output, Standard MIDI format
  • Audio characteristics
  • Equivalent input noise: ?-129 dBu
  • Frequency response (Mic/Line to computer input): 44.1 kHz and 48 kHz 20 Hz - 20 kHz, +0/-0.4 dB (JEITA), 88.2 kHz and 96 kHz 20 Hz - 40 kHz, +0/-0.8 dB (JEITA), 176.4 kHz and 192 kHz 20 Hz - 80 kHz (JEITA)
  • Signal/Noise ratio : 109 dB (Microphone input to computer, input level on minimum, low-pass filter in 20 kHz, A-weighted), 110 dB (Computer to line output, MONITOR potentiometer on maximum, low-pass filter in 20 kHz, A-weighted)
  • Distortion (THD + N): 0.0016% (Microphone input to computer, 1 kHz sinusoidal, input level on minimum, low-pass filter in 20 kHz), 0.0023% (Line input to computer, 1 kHz sinusoidal, input level on minimum, low-pass filter in 20 kHz), 0.0014% (Computer to line output, MONITOR potentiometer on maximum, low-pass filter in 20 kHz)
  • Channel separation : ?100 dB (mic/line input with line output 1-2, 1 kHz sinusoidal, input level on minimum)
  • Computer configuration
  • Windows
  • System requirements Windows computer with USB 2.0 or USB 3.0 port
  • CPU/Processor frequency 2 GHz or higher, dual core (x86)
  • 2 GB or more RAM
  • Mac
  • System requirements Mac computer with USB 2.0 or USB 3.0 port
  • CPU/Processor frequency 2 GHz or higher, dual core
  • 2 GB or more RAM
  • iOS device Apple iOS device running on iOS 10 or later
  • Windows compatible audio driver formats: USB Audio Class 2.0, ASIO 2.2, WDM (MME), MIDI, Mac: Core Audio, Core MIDI, Device under iOS: Core Audio for iPhone
  • Power supply and various characteristics
  • Power supply: DC 12 V mains adapter (PS-P1220E)
  • Power consumption: 7.2 W
  • Dimensions (W × H × D): 186 mm × 65 mm × 160 mm
  • Weight: 1.1 kg
  • Permissible operating temperature: 5 to 35 °C
