Thunderbolt audio-interface

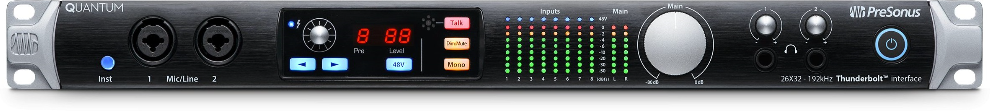

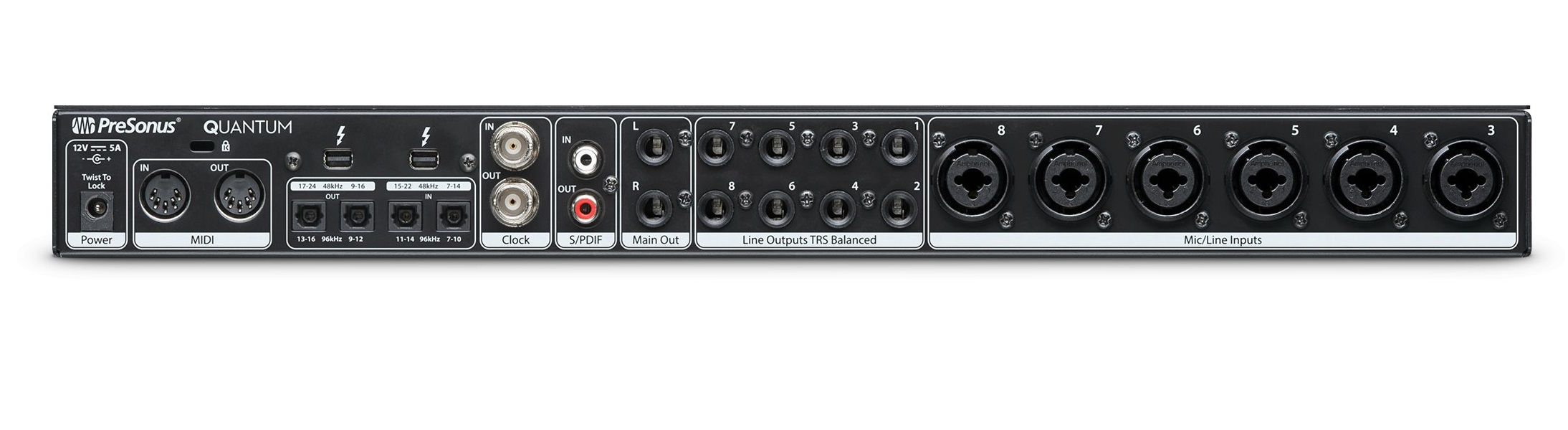

The PreSonus Quantum audio/MIDI Thunderbolt2 interface delivers up to 26 inputs and 32 outputs, with extremely low latency. offering a great audio quality; 24-bit, 192 kHz recording and playback; and recallable XMAX microphone preamps.
Lire la suite

Technisch papier

  • DSP Nee
  • Microphone Preamp
  • Type: XLR Female (via Combo), Balanced
  • Maximum Input Level: +10 dBu (Balanced, min. gain)
  • Gain Control Range: 60 dB
  • Frequency Response: 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz)
  • 20 Hz to 40 kHz (±0.22 dB, unity gain, 96 kHz)
  • Dynamic Range: > 110 dB (A-wtd, min. gain)
  • Total Harmonic Distortion: < 0.005% (1 kHz, min. gain)
  • EIN: < -131 dBu (max gain, 40Ω, 22 kHz BW, A-wtd)
  • Input Impedance: 1.6 kΩ
  • Phantom Power: +48V, > 8 mA per input
  • Instrument Inputs
  • Type: ¼” TS Female (via Combo), Unbalanced
  • Maximum Input Level: +15 dBu (Unbalanced, min. gain)
  • Gain Control Range: 60 dB
  • Frequency Response: 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
  • 20 Hz to 40 kHz: (±0.6 dB, unity gain, 96 kHz)
  • Dynamic Range: > 106 dB (A-wtd, min. gain)
  • Total Harmonic Distortion: < 0.005% (1kHz, min. gain)
  • Input Impedance: > 1 MΩ
  • Line Inputs
  • Type: ¼” TRS Female (via Combo), Balanced
  • Maximum Input Level: + 18 dBu (Balanced, min. gain)
  • Frequency Response: 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
  • 20 Hz to 40 kHz: (±0.10 dB, unity gain, 96 kHz)
  • Dynamic Range: > 118 dB (A-wtd, min. gain)
  • Total Harmonic Distortion: < 0.005% (1 kHz, min. gain)
  • Input Impedance: 10 kΩ
  • Main and Line Outputs
  • Type: ¼” TRS Female, impedance balanced
  • Maximum Output Level: +18 dBu (Balanced)
  • Frequency Response: 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
  • 20 Hz to 40 kHz: (±0.15 dB, unity gain, 96 kHz)
  • Dynamic Range: > 118 dB (A-wtd)
  • Total Harmonic Distortion: < 0.0035% (1 kHz, +4 dBu)
  • Output Impedance: 51Ω
  • Headphone Outputs
  • Type: ¼” TRS Female, Stereo, Unbalanced, x2
  • Maximum Output Level: 175 mW/channel (56Ω load)
  • Frequency Response: 20 Hz to 20 kHz (±0.5 dB, 48 kHz)
  • Dynamic Range: > 110 dB (A-wtd)
  • Total Harmonic Distortion: < 0.03% (1 kHz)
  • Headphone Impedance (working range): 16Ω to 300Ω
  • Crosstalk
  • Input to Input: < -110 dB
  • Output to Output: < -115 dB
  • Input to Output: < -120 dB
  • Signal Level LEDs
  • Clip: -0.5 dBFS
  • Signal 1: -2 dBFS
  • Signal 2: -4 dBFS
  • Signal 3: -6 dBFS
  • Signal 4: -10 dBFS
  • Signal 5: -20 dBFS
  • Signal 6: -30 dBFS
  • Signal 7: -50 dBFS
  • Digital Audio
  • Connection Type: Thunderbolt 2
  • ADC Dynamic Range: 120 dB (A-wtd)
  • DAC Dynamic Range: 120 dB (A-wtd)
  • Bit Depth: 24 bits
  • Internally Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Clock
  • Jitter: < 70 ps RMS (20 Hz – 20 kHz)
  • Jitter Attenuation: > 60 dB (1 ns in => 1 ps out)
