Draaitafelelement

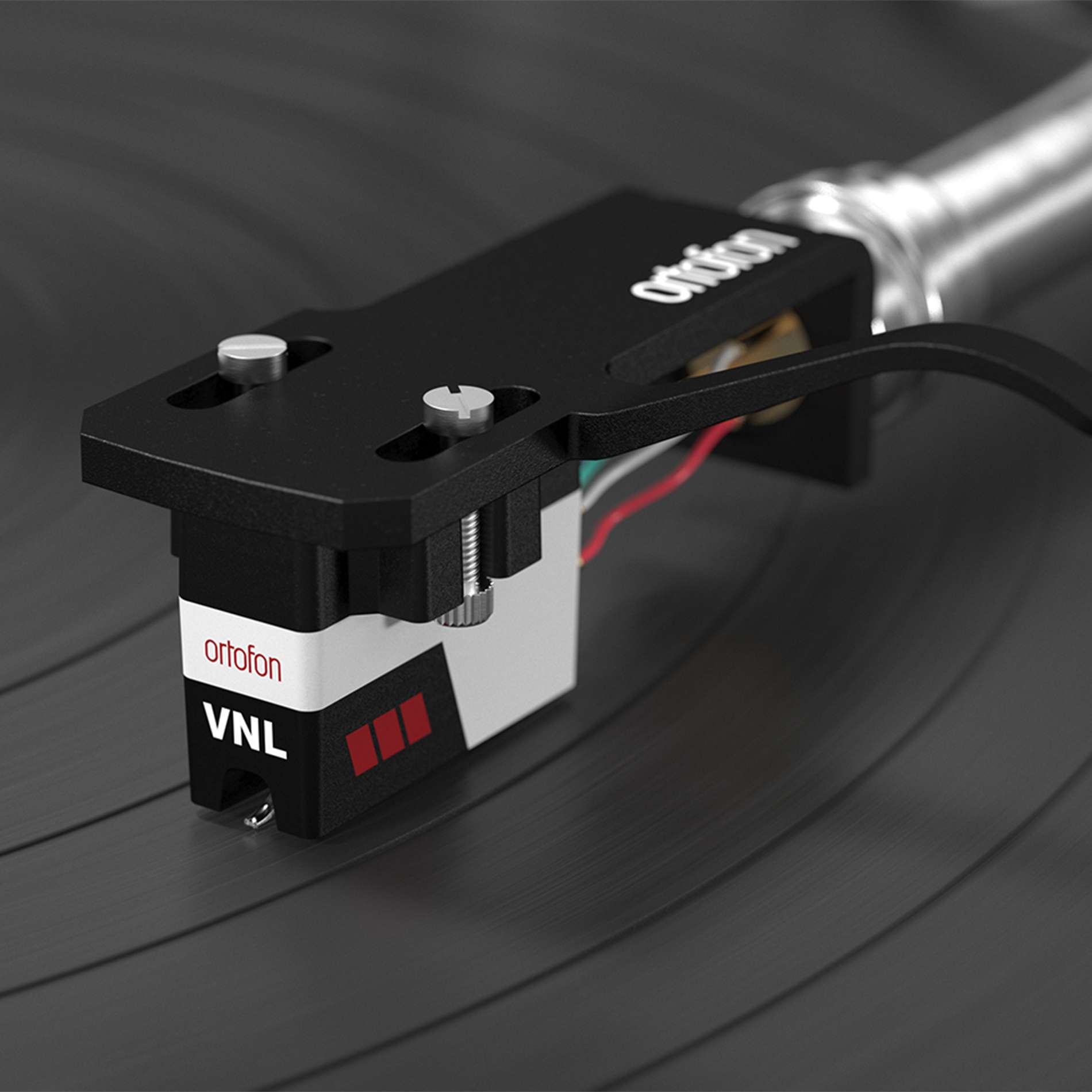

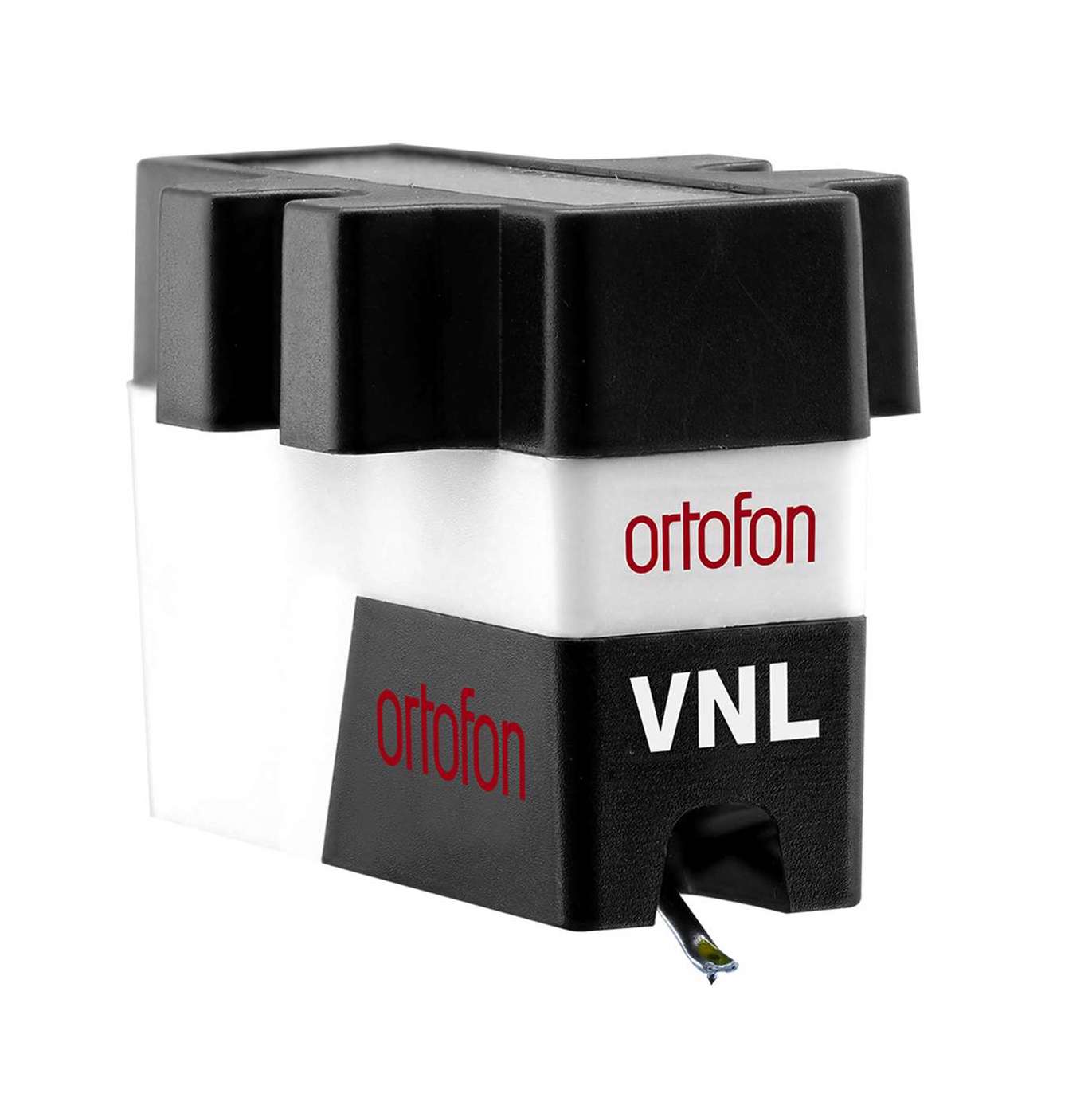

The Ortofon VNL is a DJS cartridge.
The VNL features a spherical stylus that reduces wear on the record when scratching and back-cueing.

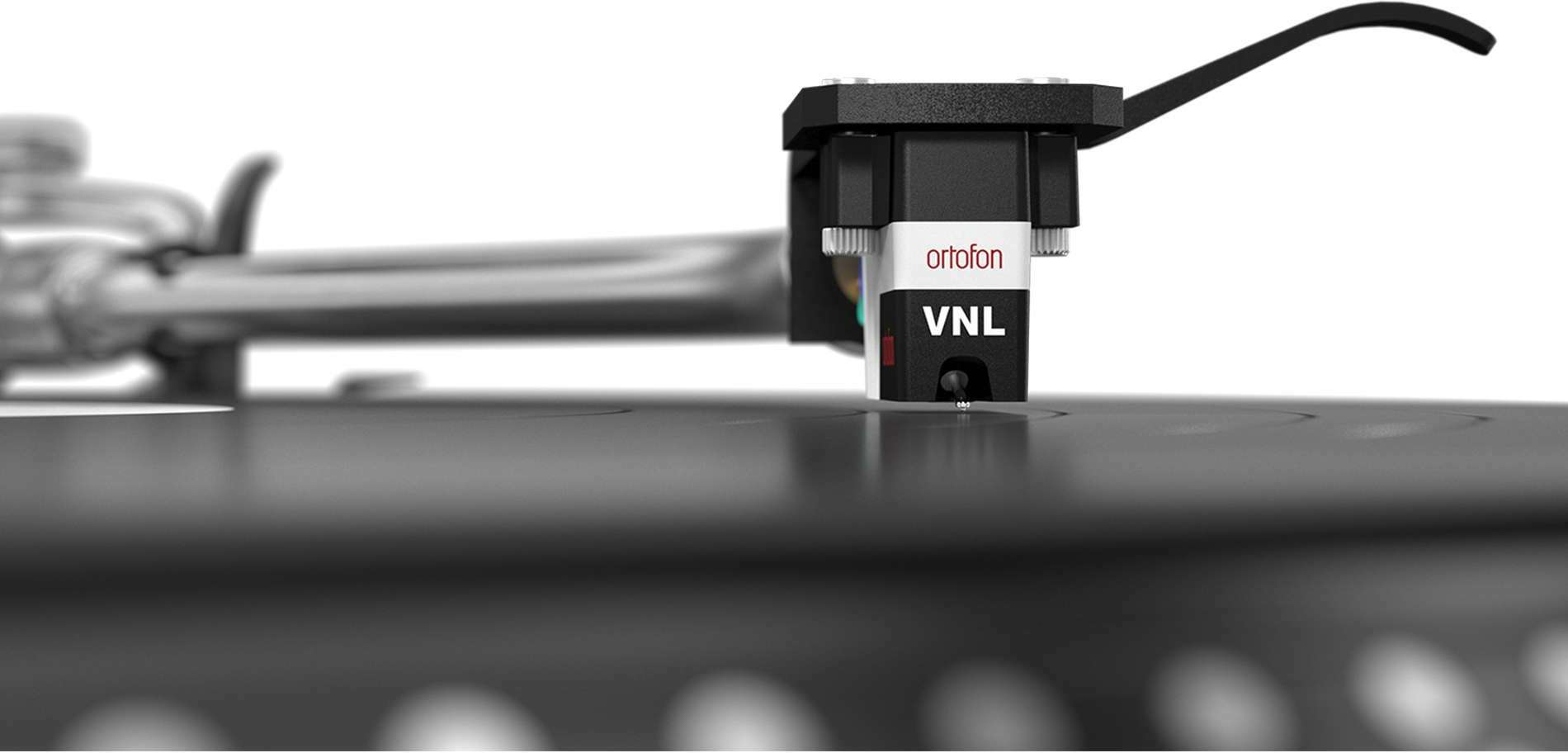

The VNL is built with Ortofon's signature solid and rugged design elements, meticulously selected colors to emphasize the ruggedness and DJ aesthetic. The body of the cartridge has been designed to allow easy mounting and alignment on various cartridge holders, ensuring groove tracking even in the most demanding conditions.
The VNL features a spherical stylus that reduces wear on the record when scratching and back-cueing.
The VNL is built with Ortofon's signature solid and rugged design elements, meticulously selected colors to emphasize the ruggedness and DJ aesthetic. The body of the cartridge has been designed to allow easy mounting and alignment on various cartridge holders, ensuring groove tracking even in the most demanding conditions.
Lire la suite
Technisch papier
- Output voltage at 1,000 Hz, 5 cm/sec: 6 mV
- Channel separation at 1 kHz: 20 dB
- Frequency response: 20 Hz - 20 kHz -2/+4 dB
- Tracking capability at 315 Hz, with recommended bearing force: 100 ?m
- Lateral dynamic adaptation: 16 ?m/mN
- Type of stylus: Spherical R 18 ?m
- Supporting force: 3 - 5 g
- Recommended support force: 4 g
- Internal impedance, DC resistance: 700 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacity: 200 - 600 pF
- Weight of the cell with stylus: 6.5 g
