Analoge mengtafel

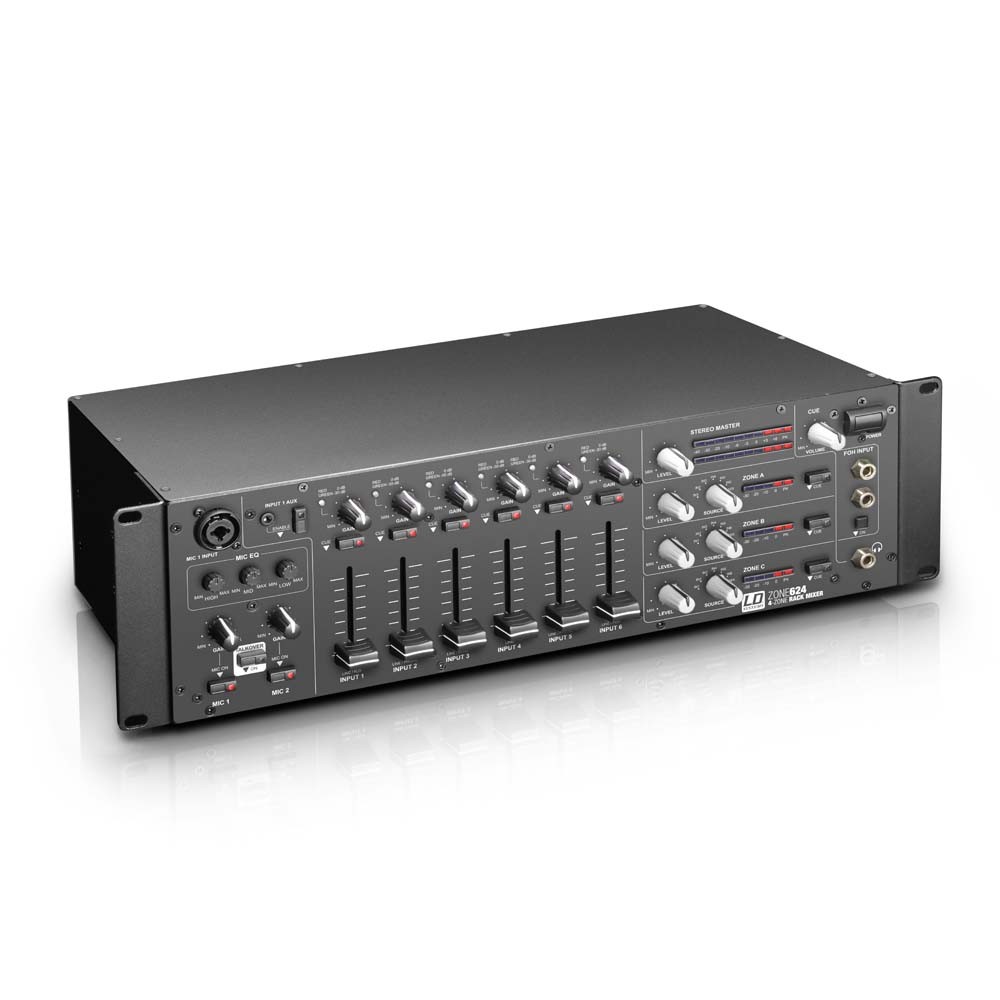

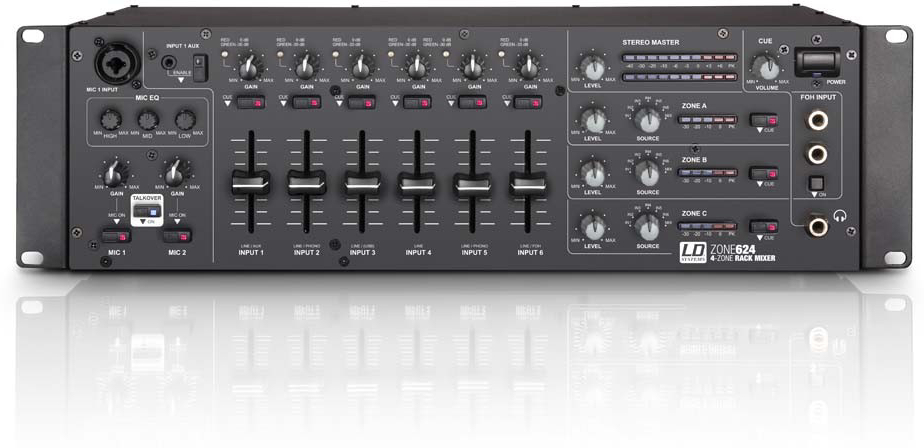

The Ld Systems Zone 624 is a 4-zone rack mixer.

The ZONE 624 is a fully equipped zone mixer with 6 line channels and 2 microphone channels, which can be assigned to a stereo or mono master output. The compact 3U rackmount device also has inputs for an external emergency announcement system and remote mute. With its breadth of connectivity, the ZONE 624 is the extremely flexible control center solution for public address systems in food outlets, clubs, hotels, fitness centers and many other areas.

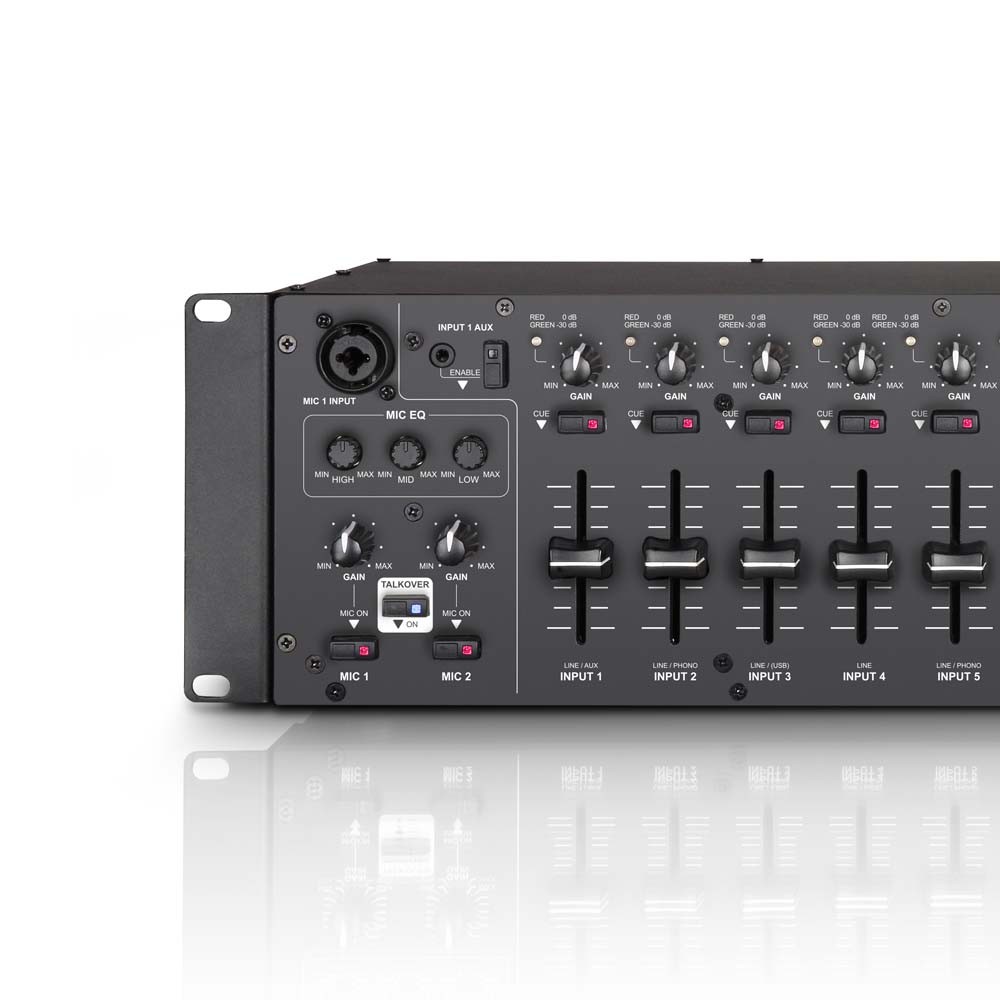

Two balanced microphone inputs featuring shared 3-band EQ, 12V phantom power and talkover capabilities; Talkover attenuation can be adjusted individually for all zone outputs on the rear of the device. The ZONE 624's 6 stereo input channels are equipped with gain control, signal and peak LEDs, 45mm faders, Cue buttons and RCA connections; channel 6, in addition to balanced TRS inputs for FOH signals. The device also has a switchable Aux input via 3.5 mm mini-jack and a USB port, which is used as stereo input and output (recording output) and turns the ZONE 624 into an external audio interface .

Technisch papier

Aantal kanalen mengtafel 4 kanalen en minder
Mengtafel connectiviteit Zonder informatica aansluiting

Type of product
Mixing consoles
Type
Facilities
Number of areas
4 (Master, Zone A-C)
Type
Stereo
Height
3U
Total Number of Input Channels
8 (2x mic, 1x AUX/line, 2x phono/line, 2x line, 1x FOH/line
Frequency response
20 - 40,000
Number of Microphone Channels
2 (with 12 Volt phantom power)
Microphone Channel Connectors
6.35 mm jack (2 x balanced), XLR
Microphone channel controls
1 x EQ Hi, 1 x EQ Low, 1 x Talkover, 1x EQ Mid, 2 x Gain, 2x On/Off
Microphone Channel Indicators
Driven on"
Microphone Channel Input Impedance
4 Kohm
Microphone Channel Input Sensitivity
4.5mV
Total Harmonic Distortion Rate on Micro Channel
0.08%
Number of Line Channels
6 (Input 1: Aux/Line, Inputs 2 + 5: Line/Phono, Input 3: USB/Line 4: Line, Input 6: Line/FOH
Line Input Connectors
input 3: 2 x RCA (cinch) + USB, input 6: 2 x RCA (cinch) + 2 x 6.35 mm TRS jack, Input 1: 2 x RCA (cinch) + 3.5 mm stereo mini-jack, channels 2, 4 and 5: 2 x RCA (cinch)
Line Channel Controls
2x Phono/Line, AUX On, Cue, FOH On, Gain, Level
Line Track Indicators
LED mark, LED signal/0 dB
Line Input Impedance
(Phono) 50 kohm, 6 kohm
Line Input Sensitivity
(Phono) 25mV, 2.1V
Total Harmonic Distortion Rate on Line Channel
(Phono) 0.05%, 0.02%
