Yamaha MG16

  • Lees recensies (4)
  • Gerelateerde accessoires
  • Vergelijkbare producten
  • Yamaha Mg16 - Analoge Mengtafel - Main picture
  • Yamaha Mg16 - Analoge Mengtafel - Variation 1
  • Yamaha Mg16 - Analoge Mengtafel - Variation 2
  • Yamaha Mg16 - Analoge Mengtafel - Variation 3
  • Yamaha Mg16 - Analoge Mengtafel - Variation 4
734.40 €
509,00 €
  • Gratis bezorging
  • Gegarandeerd lage prijzen
  • Tevreden of terugbetaald
  • 3 jaar garantie
  • Ref : 38681
In voorraad
Binnen 3-5 dagen verzonden
Voorraad in de winkel
Zie beschikbaarheid. winkel
Star's Music Bordeaux
Star's Music Lyon
Star's Music Paris
Star's Music Toulouse
Andere versie(s) of bijbehorende product(en)

Het merk Yamaha

Leer meer over het merk Yamaha en ontdek de volledige catalogus.

Het grootste netwerk van winkels in Frankrijk

Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

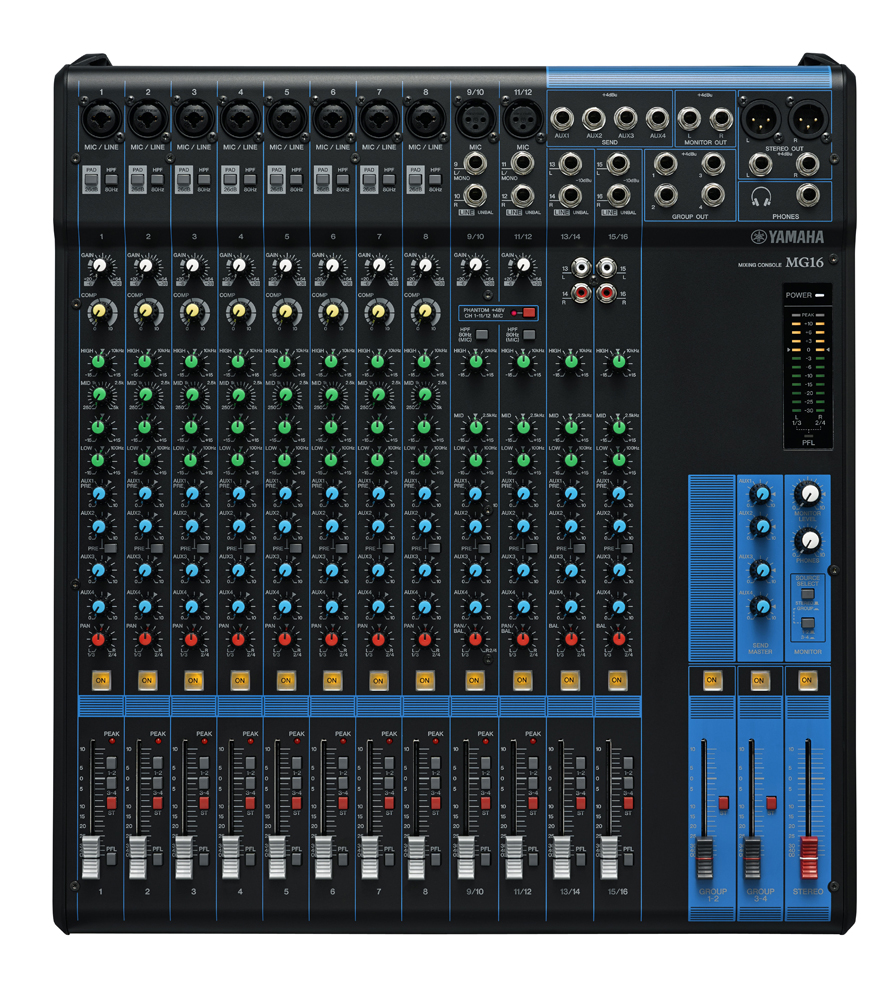

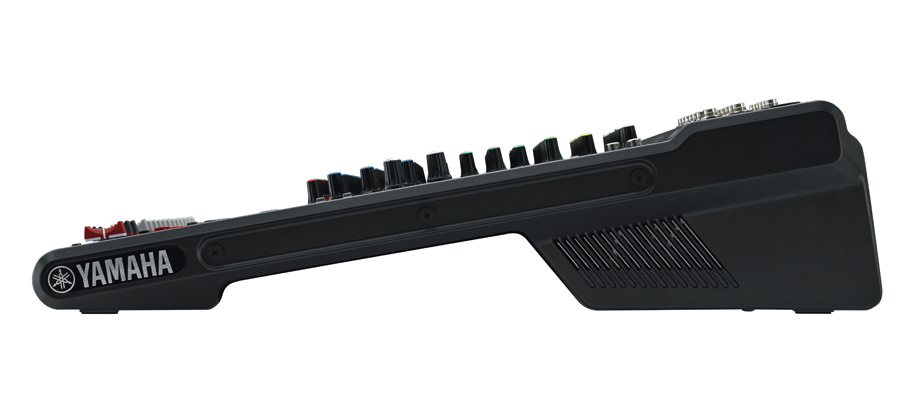

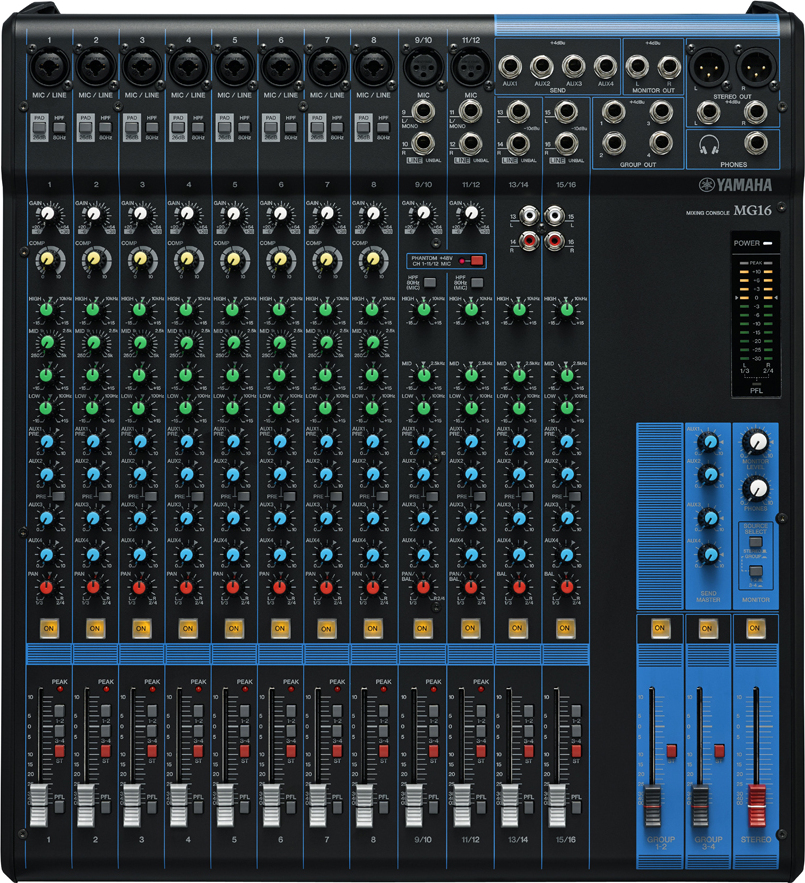

Analoge mengtafel

Lifting the veil over the third generation of Yamaha MG series with this brand new 20-channels MG16 mixing console, including studio-quality preamps, compressors, and a rugged, reliable construction.

Its fantastic sound, 16 canals and compressor allow for a warmth of sound, deep bass and natural highs, unparalleled on the market.
Lire la suite

Technisch papier

  • Aantal kanalen mengtafel 10 tot 22 kanalen
  • Mengtafel connectiviteit Zonder informatica aansluiting
  • /O
  • Phantom power: +48 V
  • Input Channels
  • Mono[MIC/LINE]: 8
  • Mono/Stereo[MIC/LINE]: 2
  • Stereo[LINE]: 2
  • Output Channels
  • STEREO OUT: 2
  • MONITOR OUT: 1
  • PHONES: 1
  • AUX SEND: 4
  • GROUP OUT: 4
  • Bus
  • Stereo: 1, GROUP: 4, AUX: 4
  • Input Channel Function
  • PAD: 26 dB (Mono)
  • HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
  • COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ MID: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking
  • EQ LOW : Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
  • General specifications
  • Total harmonic distortion: 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
  • Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level:
  • Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
  • Crosstalk: -78 dB
  • Power requirements: AC 100 – 240 V, 50 / 60 Hz
  • Power consumption: 30 W
  • Dimensions:
  • W: 444 mm (17.5")
  • H : 130 mm (5.1")
  • D : 500 mm (19.7")
  • Net weight: 6.6 kg (14.6 lbs.)
  • Accessories : Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit
  • Others
  • Operating Temperature: 0 to +40?C
Meer specificaties
