Stereo krachtversterker
The LD Systems XS200 is a class D power amplifier for sound reinforcement, 2 x 100W on 4 ohms.

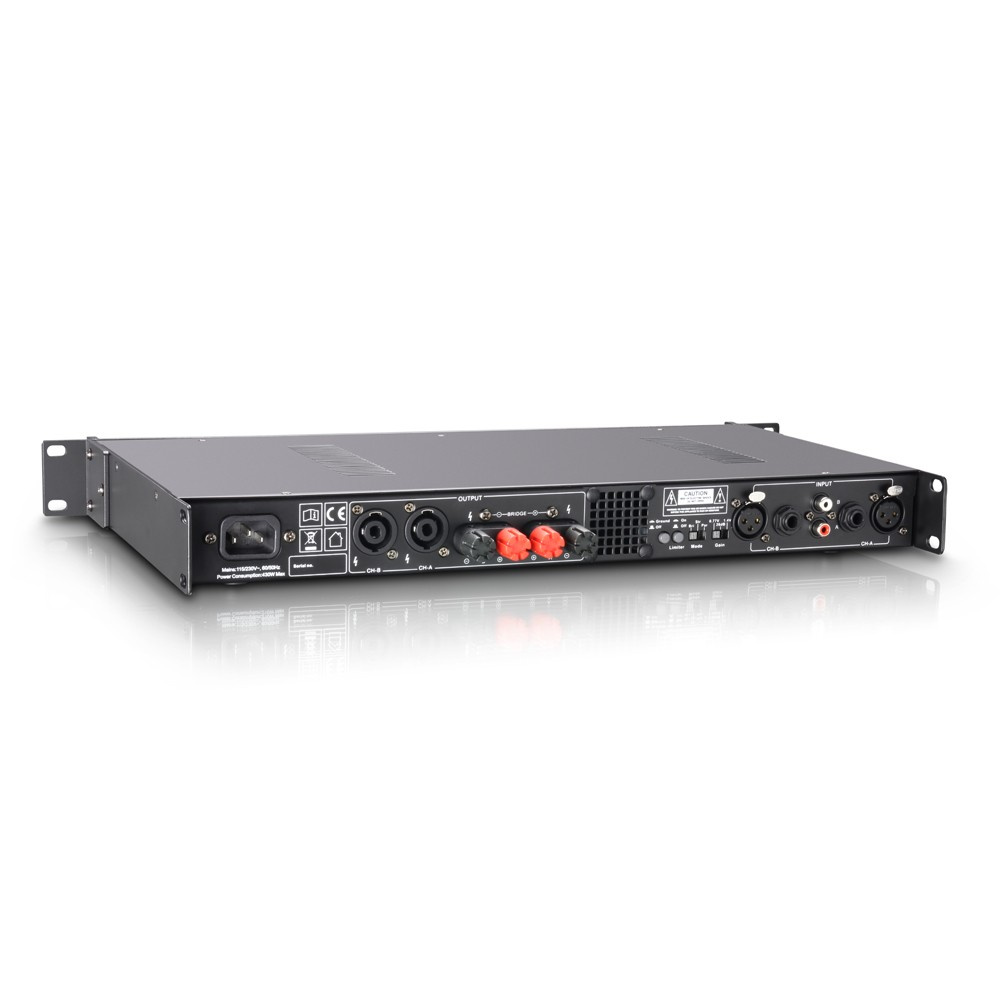

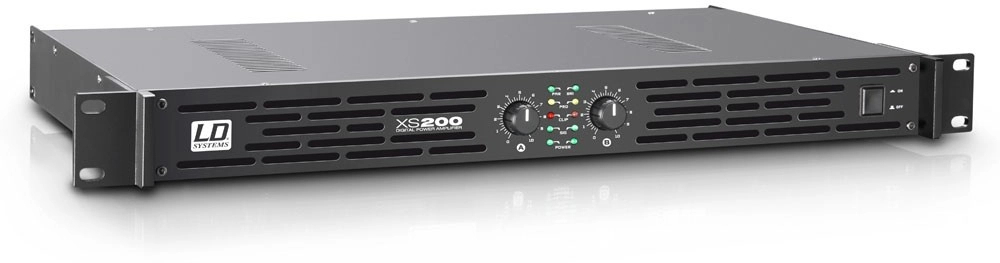

LD Systems XS200 Power Amplifier
The XS200 is an extremely compact, reliable Class D power amplifier with 100W per channel into 4 Ohms. Its response curve extends from 20 Hz to 20 kHz. It measures only 1 U in rack height and weighs only 3 kg. It is suitable for all professional applications, where its light weight and compactness make it easy to transport and set up. This is important in fixed or mobile installations, or even in domestic configurations, where the absence of a fan ensures zero background noise.
LD Systems XS200 Power Amplifier
The XS200 is an extremely compact, reliable Class D power amplifier with 100W per channel into 4 Ohms. Its response curve extends from 20 Hz to 20 kHz. It measures only 1 U in rack height and weighs only 3 kg. It is suitable for all professional applications, where its light weight and compactness make it easy to transport and set up. This is important in fixed or mobile installations, or even in domestic configurations, where the absence of a fan ensures zero background noise.
Lire la suite
Technisch papier
- Vermogensversterker Minder dan 200 watt RMS
- Type of product
- Amplifiers
- Type
- Amplifiers
- Output power (at 1 kHz, into 4 Ohms)
- 2 x 100 W
- Output power (at 1 kHz, into 8 Ohms)
- 2 x 50 W
- Output power (at 1 kHz, into 8 Ohms, Bridge mode)
- 200 W
- Switching type
- Class D
- Frequency response
- 20 - 20000 Hz
- Distortion (THD)
- < 0,1 %
- Power Amplification (Gain)
- 30 dB / 26 dB / 24 dB dB
- Input sensitivity
- 0.77 V / 1.1 V / 1.4 V (passed) V
- Protection circuits
- DC current, Short circuit, Over temperature, Over voltage, Start up delay

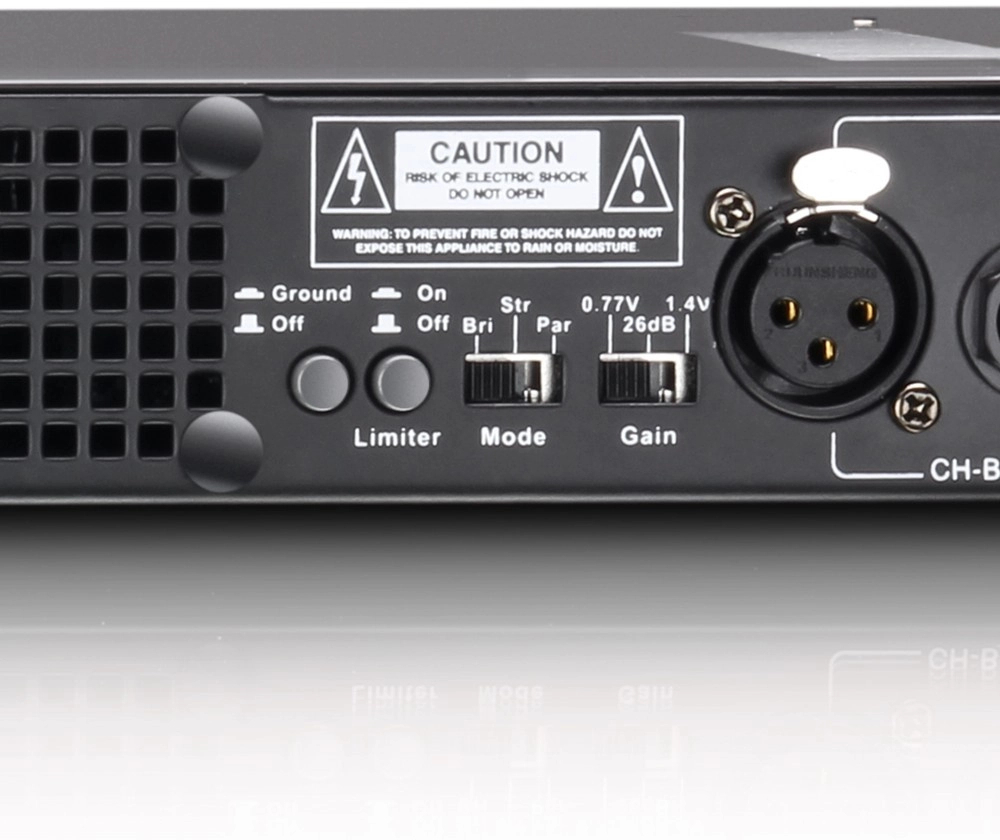

- Settings
- Gain, Ground Lift, Limiter, Mode, On / Off, Volume

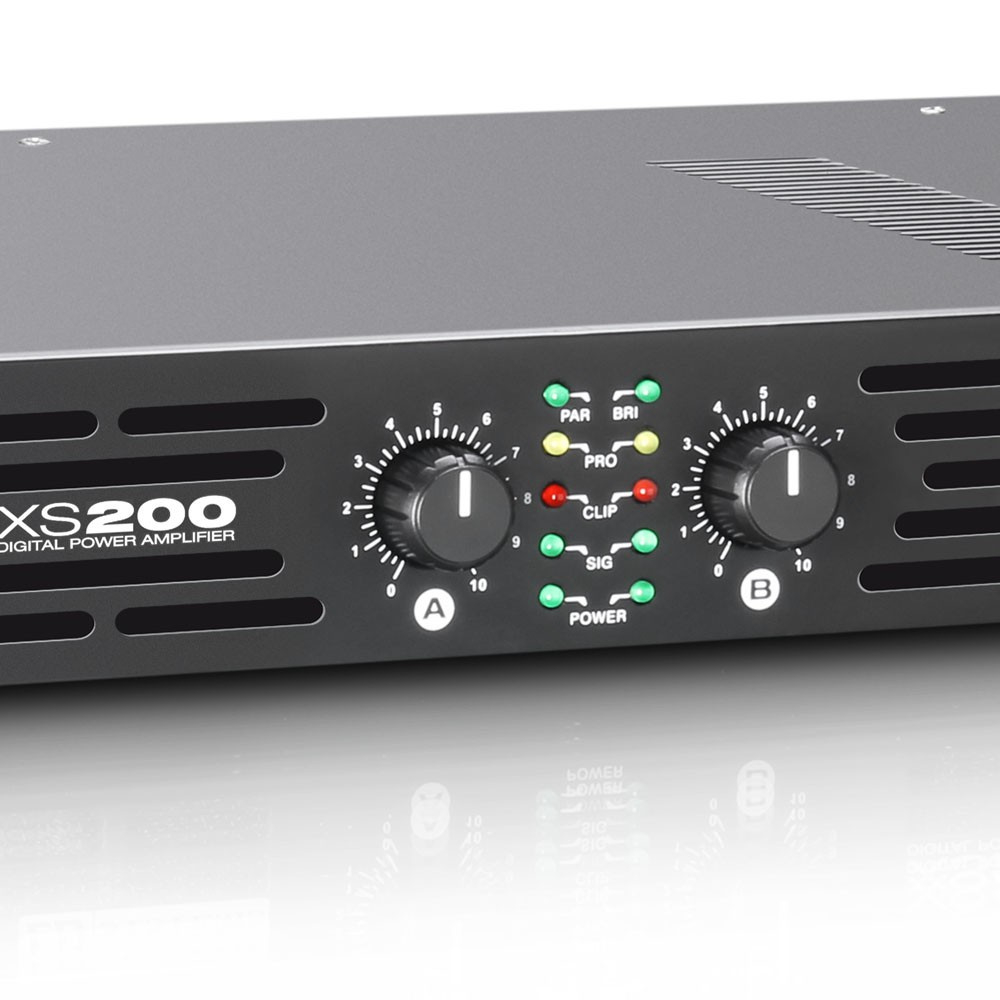

- Indicators
- Clip, Mode, Power, Protect, Signal
- Line inputs
- 2
- Line input connectors
- Cinch (RCA), 1/4" jack
- Speaker Outputs
- 2
- Speaker output connectors
- Terminal blocks, Speakon compatible
- Mains voltage
- Mains supply
- Current consumption (at full load)
- 240 W
- Mains voltage
- 115 / 230 volts (switchable)
- Width
- 482 mm
- Height (mm)
- 44 mm
- Depth
- 244 mm
- Weight
- 3 kgl.
