Actieve luidspreker

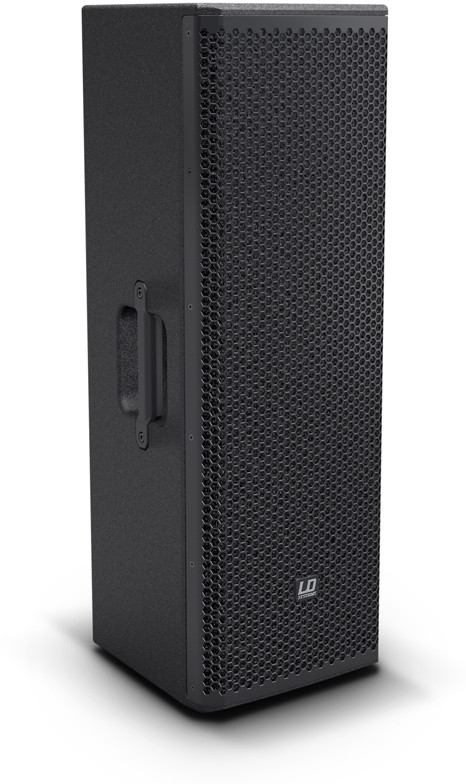

The LD Systems STINGER 28AG3 is a 2-way active bass reflex speaker, 2 x 8 inch woofer with a power of 500W rms.
For professional use, it has been designed and manufactured to guarantee absolute long-term reliability.
it incorporates a very solid bass-reflex case and its easy-to-use precision presets, this speaker can be used in broadband mode, satellite and back stage.
This loudspeaker is powered by an ultra-efficient class D amplifier with a high power of 500 W.
Two specially designed 8 "boomers and BMS tweeter provide perfect bass reproduction and light, natural sound.
The tweeter waveguide was developed taking into account edge effects (BEM), with a numerical simulation of the radiation and the propagation of sound energy. It reduces reflections on the floor and ceiling, avoids side lobes and provides a controlled and homogeneous dispersion.
With LD Systems' patented DynX® DSP technology, the Stinger® 28A G3 delivers clear and powerful sound in all operating conditions.

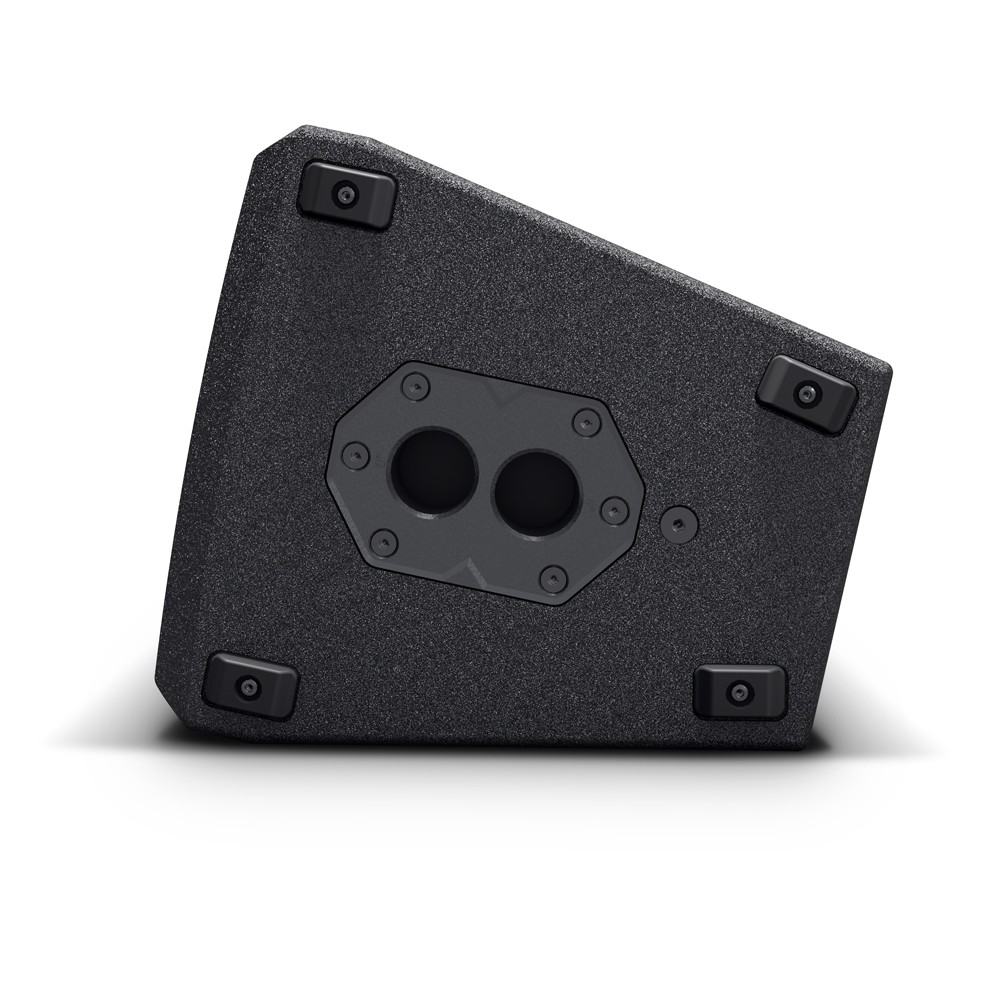

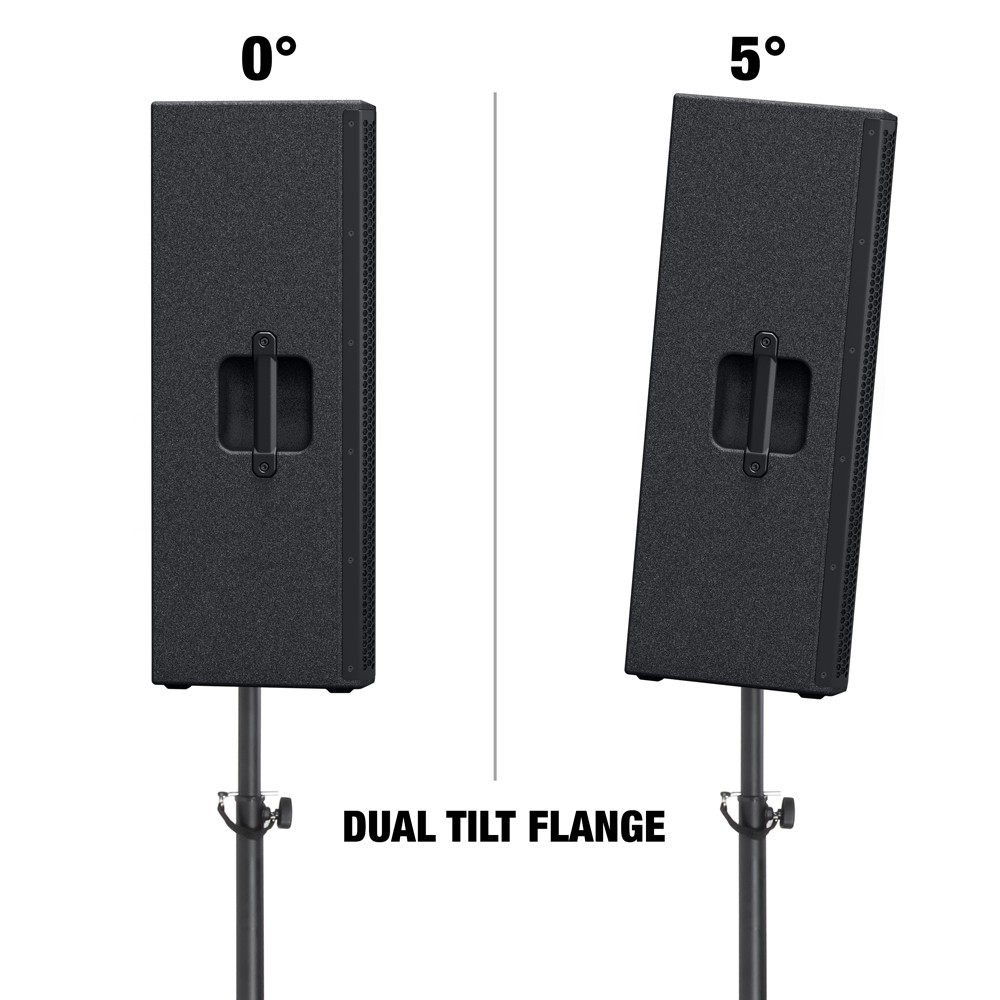

The signal conditioning filtering / frequency distribution and the multiband limiter provides maximum longevity and a total absence of distortion. Designed to withstand any challenge, the speaker cabinet is made of very strong birch plywood. Its extremely durable polyurea coating ensures exceptional stability and durability. The speaker is equipped with a steel front grille, a Dual-Tilt foot base, suspension points and ergonomic handles. The Stinger® 28 A G3 is a professional sound solution at a very attractive price, and its many accessories allow it to be used both on stage and as a fixed installation.
For professional use, it has been designed and manufactured to guarantee absolute long-term reliability.
it incorporates a very solid bass-reflex case and its easy-to-use precision presets, this speaker can be used in broadband mode, satellite and back stage.
This loudspeaker is powered by an ultra-efficient class D amplifier with a high power of 500 W.
Two specially designed 8 "boomers and BMS tweeter provide perfect bass reproduction and light, natural sound.
The tweeter waveguide was developed taking into account edge effects (BEM), with a numerical simulation of the radiation and the propagation of sound energy. It reduces reflections on the floor and ceiling, avoids side lobes and provides a controlled and homogeneous dispersion.
With LD Systems' patented DynX® DSP technology, the Stinger® 28A G3 delivers clear and powerful sound in all operating conditions.
The signal conditioning filtering / frequency distribution and the multiband limiter provides maximum longevity and a total absence of distortion. Designed to withstand any challenge, the speaker cabinet is made of very strong birch plywood. Its extremely durable polyurea coating ensures exceptional stability and durability. The speaker is equipped with a steel front grille, a Dual-Tilt foot base, suspension points and ergonomic handles. The Stinger® 28 A G3 is a professional sound solution at a very attractive price, and its many accessories allow it to be used both on stage and as a fixed installation.
Lire la suite
Technisch papier
- Kracht PA luidsprekers 301 tot 600 watt RMS
- Soort PA-luidspreker FOH luidspreker
- Product number: LDEB282AG3
- Product type: PA loudspeaker
- Type: active
- Low/mid driver dimensions: 2 x 8"
- Woofer size: 2 x 203.2mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2"
- Woofer voice coil (mm): 50.8mm
- Horn: BEM optimized CD Horn
- HF driver dimensions: 1"
- HF Driver Size: 25.4mm
- HF driver magnet: Ferrite
- HF driver brand: BMS
- HF driver voice coil: 1"
- HF Driver Voice Coil: 25.4mm
- Amplifier: Class D
- Dispersion (H x V): 90 x 50°
- RMS: 500W
- Peak power: 1000W
- Frequency response: 58 - 20000Hz
- Max. SPL (peak): 131dB
- Protection circuits: over voltage, over-current, thermal - overload, Multiband limiter
- Input sensitivity: -5dBu

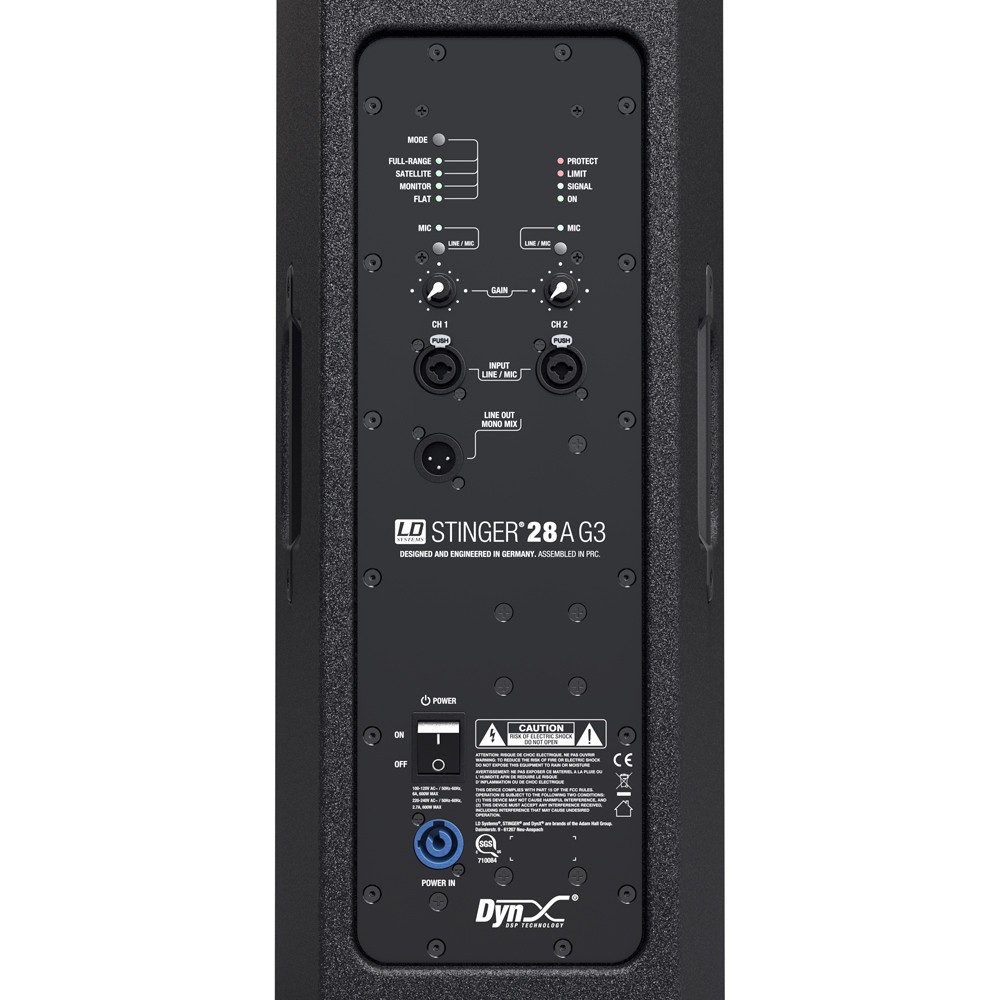

- Controls: 2 x Mic/Line, 2 x gain, mode
- Indicators: mode, Signal, Protect (protection circuit -engaged), Limit, On-
- Line inputs: 2
- Line input connectors: 6.3 mm jack, XLR
- Line outputs: 1
- Line output connectors: XLR
- Operating voltage:100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
- Operating Temperature: 0 - 40°C
- Relative Humidity:: < 80% (non-condensing)
- Cabinet material: 12 mm Plywood
- Cabinet surface: Polyurea
- Cabinet construction: vented
- Width: 270mm
- Height: 756mm
- Depth: 290mm
- Weight: 20,5kg
