Usb audio-interface

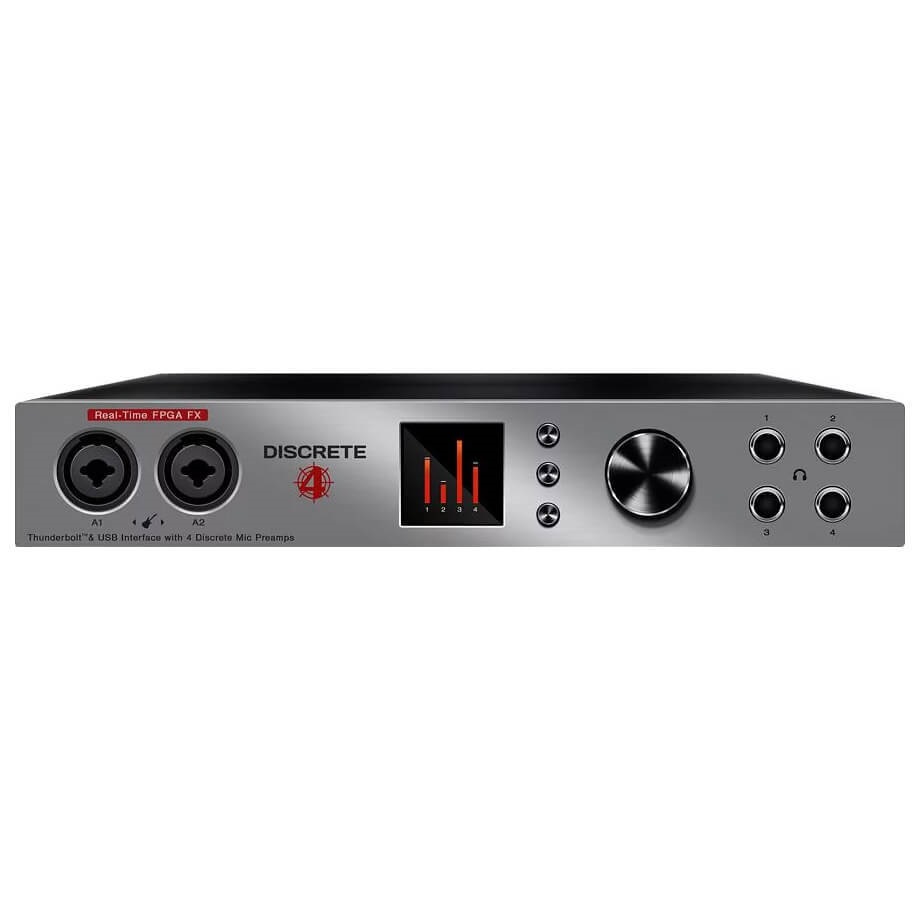

Antelope Audio’s Discrete 4 Microphone Preamp comes with 4 console grade 6-transistor discrete preamps, 121 db dynamic range conversion and rock solid clocking. Discrete 4 features the Antelope Audio premier real-time FPGA FX modeling iconic gear from BAE, Lang, Gyraf Audio and FET.
Discrete 4 includes Accusonic 3D microphone and preamp models, guitar amps, transformer and tube FX, and a huge selection of classic vintage gear, now accessible in any DAW thanks to the freshly introduced Antelope Connect AFX Plugin.

Technisch papier

DSP Ja

ANALOG

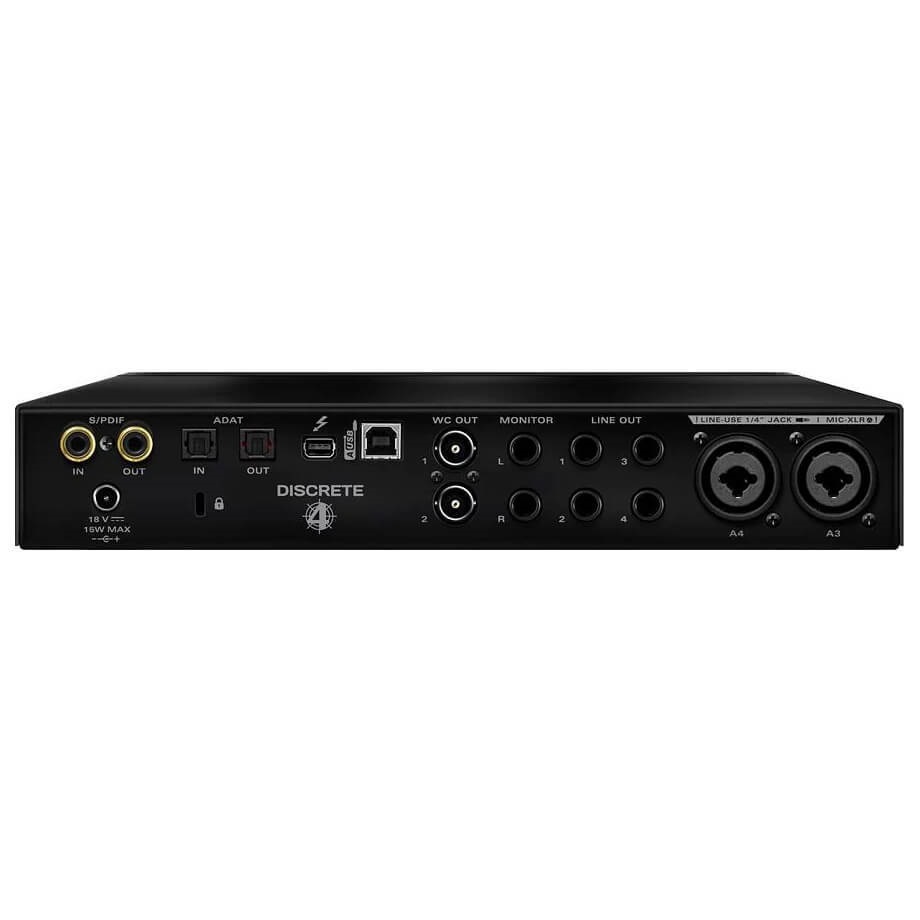

Analog Inputs
2 x Mic / Line Inputs
2 x Mic / Line / Hi-Z Inputs
Analog Outputs
1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
4 x Line Outs on TRS, +20 dBu max
4 x Stereo Headphone Outputs
Mic Preamp
EIN: -128 dBu (A-weighted)
Dynamic Range: -121 dB (A-weighted)
THD: -106 dB
Max input: +18 dBu
Gain Range: 65 dB
D/A Monitor Converter
Dynamic Range: 121 dB
THD + N: -100 dB
A/D Converter
Dynamic Range: 121 dB
THD + N: -112 dB
D/A Converters(Line Out)
Dynamic Range: 118 dB
THD + N: – 100dB
DIGITAL
Digital Inputs
1 x ADAT (up to 16CH)
1 x S/PDIF
Digital Outputs
1 x ADAT (up to 16CH)
1 x S/PDIF
USB I/O
USB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
Thunderbolt™ I/O
1 x Thunderbolt, 32 channels I/O
CLOCKING
Word Clock Outputs
2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS
Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176.4, 192
Other
Operating Temperature
0-50°C, 32-122°F
Weight (Approx)
1.7 kg/ 3.7 lbs
Dimensions (Approx)
Width: 261 mm / 10.2”
Height: 44 mm / 1.7”
Depth: 208 mm /8.2”
Power Consumption
15 Watts
