Wah/filter effectpedaal

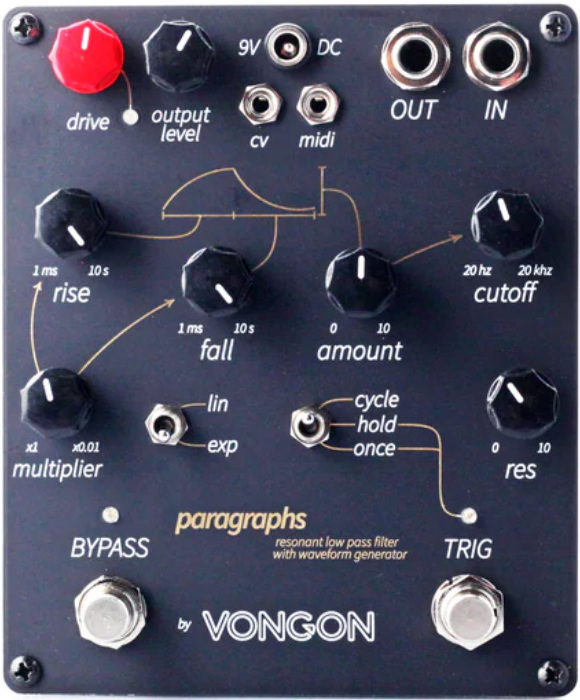

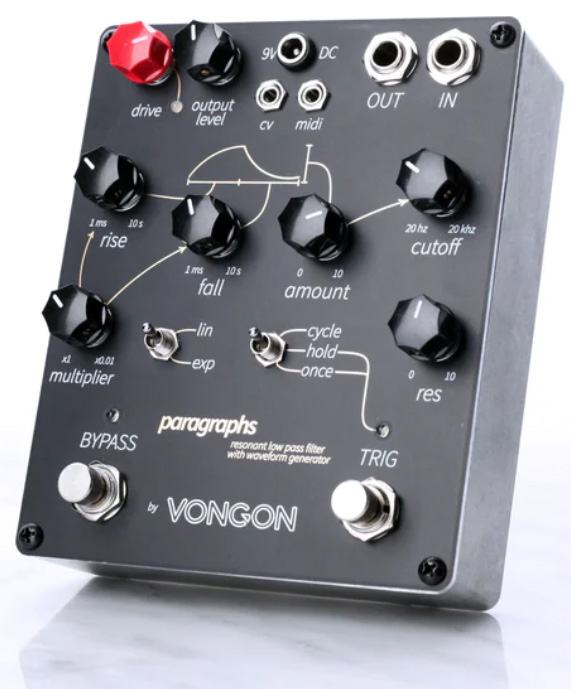

VONGON Paragraphs Resonant Lowpass Filter With Waveform Generator compact effect pedal is an analog four-pole resonant low pass filter with an attack, decay (AD) envelope generator designed with focus on simplicity and flexibility.
The heart of the LOW PASS FILTER circuit is the AS3320 analog chip — a modern replica of the same component used in analog classics like the Sequential Prophet 5, Pro-One mono-synth, Elka Synthex, and the LinnDrum. Cutoff spans the full audio spectrum and resonance starts to self-oscillate at about seventy percent.
The ENVELOPE GENERATOR offers modulations in an uncommonly wide range of frequencies — starting as low as 0.05 hz for slowly evolving 20 second long cycles, and reaching up to (and past) the audio threshold at 300 hz for a wave shaping effect similar to sounds found on west coast style synthesizers (“think Buchla”).
Paragraphs accepts instrument and line level signals. Dedicated controls for input (drive) and output level make it easy to move between a crystal clear clean tone and and a clipping fuzz. A multi-color LED provides a visual representation of the signal level. Red indicates clipping. Orange flashes indicate the start of overload. Green indicates the presence of signal at or below the nominal level.
Inputs for CONTROL VOLTAGE and MIDI are available to remotely trigger the envelope generator. This enables your Paragraphs to stay in rhythmic synchronization with external systems like midi sequencers, euroracks, and digital audio workstations.
Vongon was founded in 2020 in Oakland, California by Ryan McGill. This small effect pedal company combines unique retro beauty with high-quality, modern tech. Our custom enclosures lend a vintage vibe that melds perfectly with our iconic-inspired, original circuits. Each handmade product is designed, assembled and tested with exceptional care and attention to detail in our studio.
The heart of the LOW PASS FILTER circuit is the AS3320 analog chip — a modern replica of the same component used in analog classics like the Sequential Prophet 5, Pro-One mono-synth, Elka Synthex, and the LinnDrum. Cutoff spans the full audio spectrum and resonance starts to self-oscillate at about seventy percent.
The ENVELOPE GENERATOR offers modulations in an uncommonly wide range of frequencies — starting as low as 0.05 hz for slowly evolving 20 second long cycles, and reaching up to (and past) the audio threshold at 300 hz for a wave shaping effect similar to sounds found on west coast style synthesizers (“think Buchla”).
Paragraphs accepts instrument and line level signals. Dedicated controls for input (drive) and output level make it easy to move between a crystal clear clean tone and and a clipping fuzz. A multi-color LED provides a visual representation of the signal level. Red indicates clipping. Orange flashes indicate the start of overload. Green indicates the presence of signal at or below the nominal level.
Inputs for CONTROL VOLTAGE and MIDI are available to remotely trigger the envelope generator. This enables your Paragraphs to stay in rhythmic synchronization with external systems like midi sequencers, euroracks, and digital audio workstations.
Vongon was founded in 2020 in Oakland, California by Ryan McGill. This small effect pedal company combines unique retro beauty with high-quality, modern tech. Our custom enclosures lend a vintage vibe that melds perfectly with our iconic-inspired, original circuits. Each handmade product is designed, assembled and tested with exceptional care and attention to detail in our studio.
Lire la suite
Technisch papier
- VONGON Paragraphs Resonant Lowpass Filter With Waveform Generator
- SKU Vongon PARAGRAPHS
- For instruments & line level signals
- Compact effect pedal
- Made in USA
- 2022
- Controls : voir images
- In/out : voir images
- True Bypass
- Power : 9VDC optional supply (fiche barrel 2.1 mm, centre négatif)
- Cons. 100 mA
- 5.7 x 4.7 x 1.5 / 14.49 x 11.94 x 3.81 cm
- Manual : http://docs.vongon.com/paragraphs.pdf
