Spl SMC 7.1

  • Lees recensies (0)
  • Gerelateerde accessoires
  • Vergelijkbare producten
  • Spl Smc 7.1 - Monitor controller - Main picture
  • Spl Smc 7.1 - Monitor controller - Variation 1
1777,00 €
  • Gratis bezorging
  • Gegarandeerd lage prijzen
  • Tevreden of terugbetaald
  • 3 jaar garantie
  • Ref : 111638
Voorbestellen
neem contact op met ons
Voorraad in de winkel
Niet verkrijgbaar in de winkel
INFORMEER MIJ OVER HAAR BINNENKOMST OP VOORRAAD
Ik wil per e-mail op de hoogte worden gehouden
Go

Het merk Spl

Leer meer over het merk Spl en ontdek de volledige catalogus.

Koopgids voor monitorluidsprekers

Raadpleeg deze gids om er zeker van te zijn dat u niet de fout ingaat bij het kopen van monitorluidsprekers!

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

Monitor controller

The SMC 7.1 is a controller offered by the SPL brand.

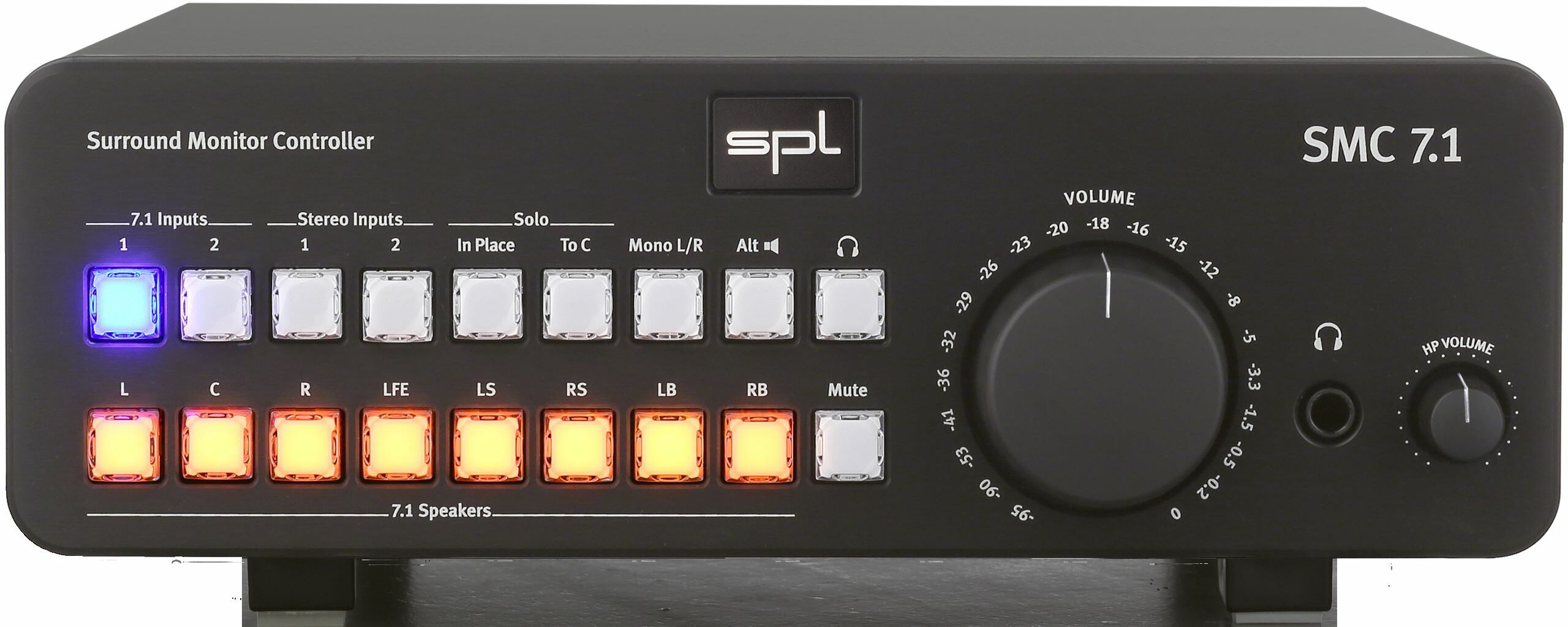

The SMC 7.1 Surround Monitor Controller is an analog studio monitor controller designed for 7.1 and stereo sources.
Either of the two 7.1 balanced inputs as well as the two balanced stereo inputs can be routed to the 7.1 balanced output.
L/R signals from the active input can also be routed to an alternative stereo output.

Equipped with a high-quality headphone amplifier, you can not only listen to the L/R signal of the active input, but also individual channels of the 7.1 inputs.
The eight-group potentiometer allows direct volume control of all channels, without the need for control circuits such as VCAs.

The SMC 7.1 is manufactured to high-quality analog standards, ensuring linear frequency response up to 100 kHz and exceptional dynamic range.
Lire la suite

Technisch papier

  • Main Features
    • Two balanced 7.1 inputs
    • Two balanced stereo inputs
    • Balanced stereo output with sub-output
    • Extended routing options
    • Solo in Place / Solo to Center
    • High-quality headphone amplifier
    • Dedicated Analog Output for Analog Meter
    • 7.1 Balanced Output
    • Internal power supply
    • Made in Germany

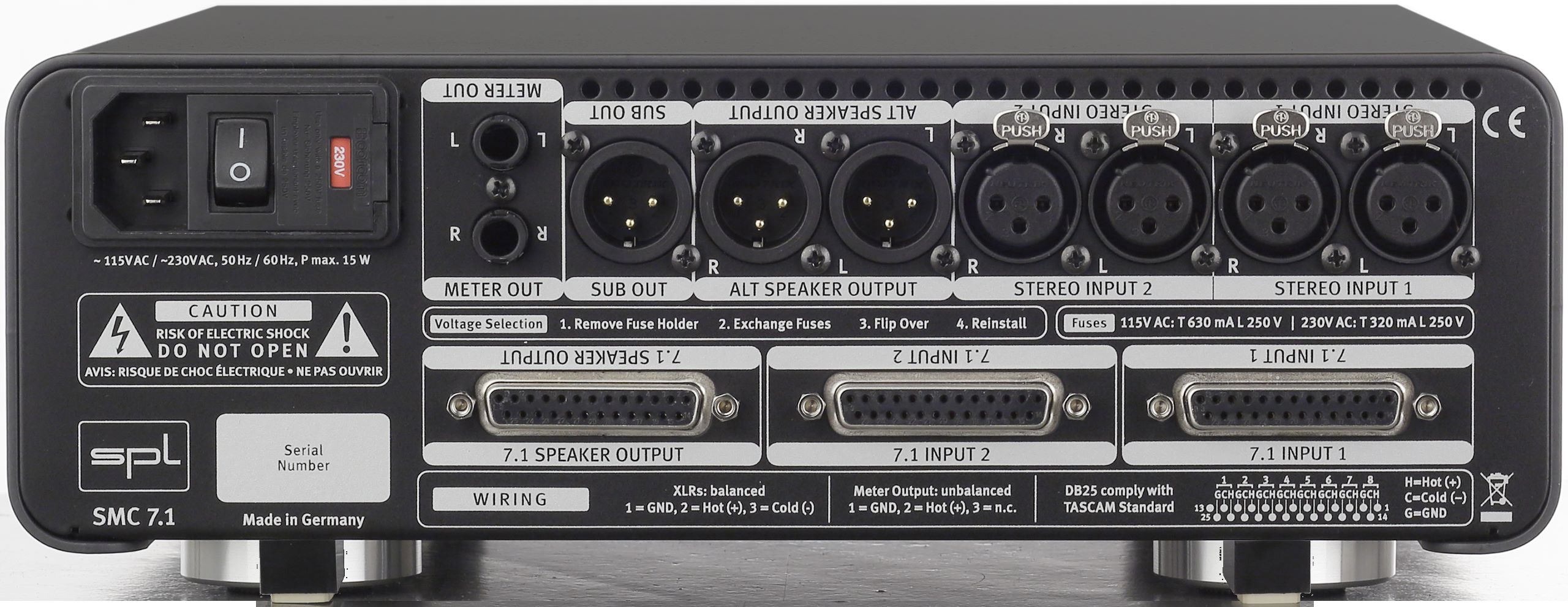

  • Inputs
    • Sub-D-25 Input/Output
    • Sub-D-25 (TASCAM Standard)
    • Impedance: 20 kOhms
    • CMR: -82 dB
    • Max. Input Level: +22 dB
    • XLR Input
    • Neutrik XLR, balanced, pin 2 = (+)
    • Impedance: 20 kOhms
    • CMR: -82 dB
    • Max. Input Level: +22 dB
  • Outputs
    • Sub-D-25 Output
    • Sub-D-25 (TASCAM Standard)
    • Frequency Range: 10 Hz to 150 kHz (-3 dB)
    • Crosstalk at 1 kHz: -92 dB
    • THD & N: 0.001% (0 dBu, 1 kHz, 100 kOhm load)
    • Noise (A-weighted): -93 dB
    • Dynamic Range: 115 dB
    • XLR Output
    • Neutrik XLR, balanced, pin 2 = (+)
    • Frequency Range: 10 Hz to 150 kHz (-3 dB)
    • Crosstalk at 1 kHz: -92 dB
    • THD & N: 0.001% (0 dBu, 1 kHz, 100 kOhm load)
    • Noise (A-weighted): -93 dB
    • Dynamic Range: 115 dB
    • Headphone Output
    • TRS 6.35 mm Connector
    • Pin Wiring: Tip = Left, Ring = Right, Sleeve = GND
    • Impedance: 22 kOhms
    • Frequency Range: 10 Hz to 80 kHz (-3 dB)
    • Crosstalk at 1 kHz: -70 dB
    • THD & N: 0.001% (0 dBu, 1 kHz, 40 kOhm load)
    • Noise (A-weighted): -93 dB
    • Dynamic Range: 113 dB
    • Internal Operating Voltages
    • Analog: +/- 18 V Power Supply
    • Mains Voltage (Switchable): 230 V AC / 50Hz or 115 V AC / 60Hz
    • Fuses: 230 V = T 500 mA; 115 V = T 1 A
    • Power Consumption: max 25 VA
