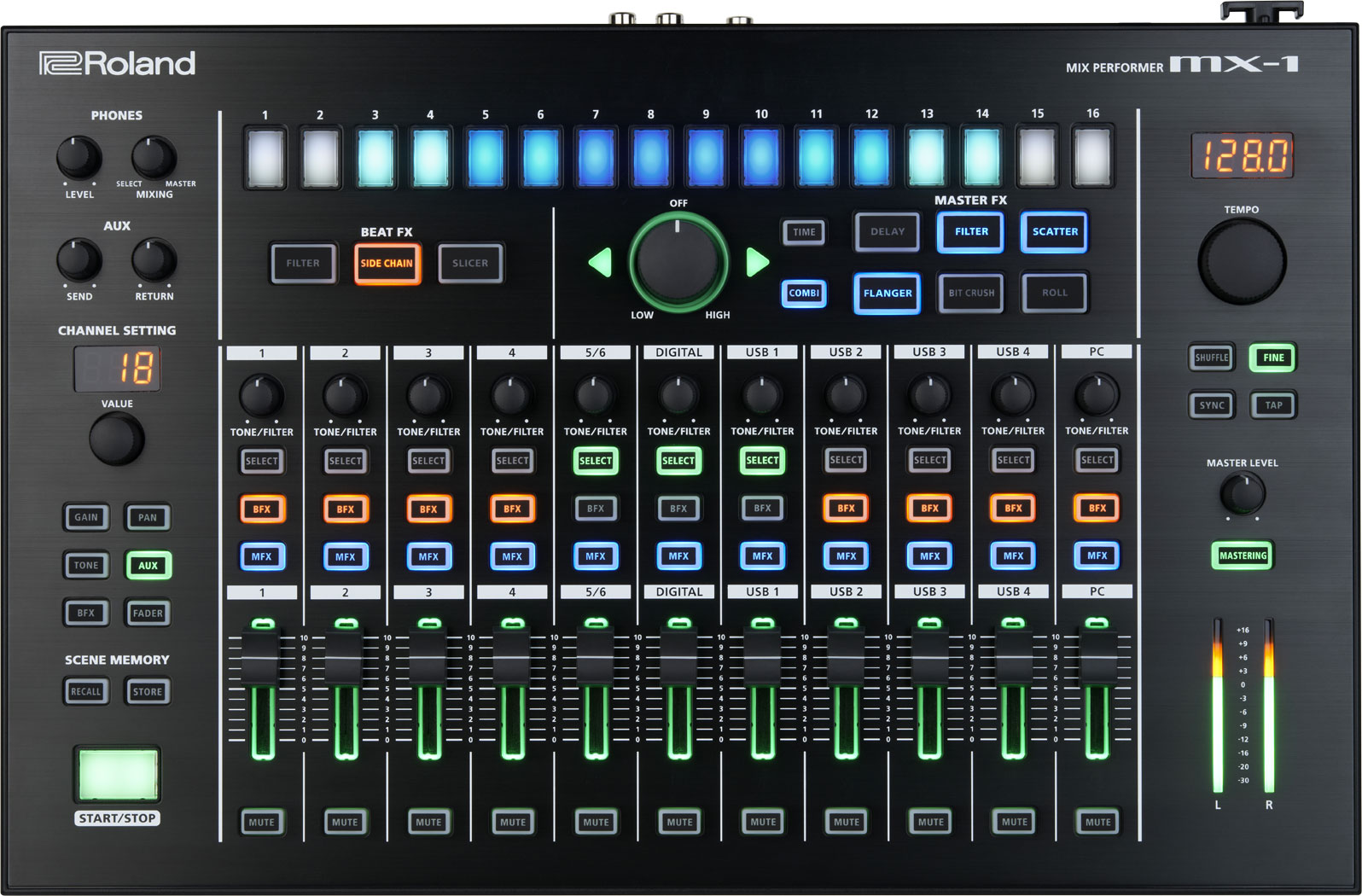

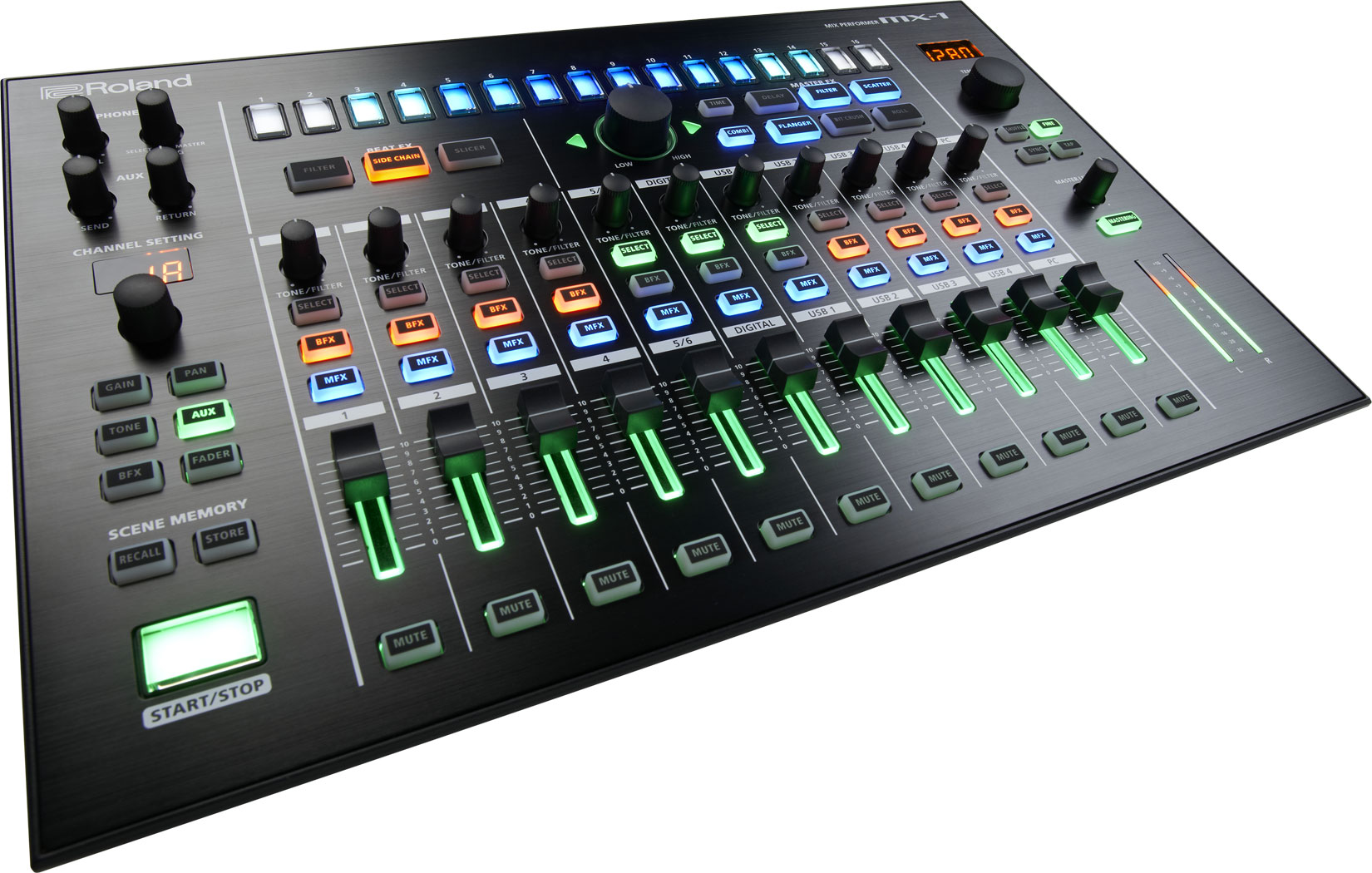

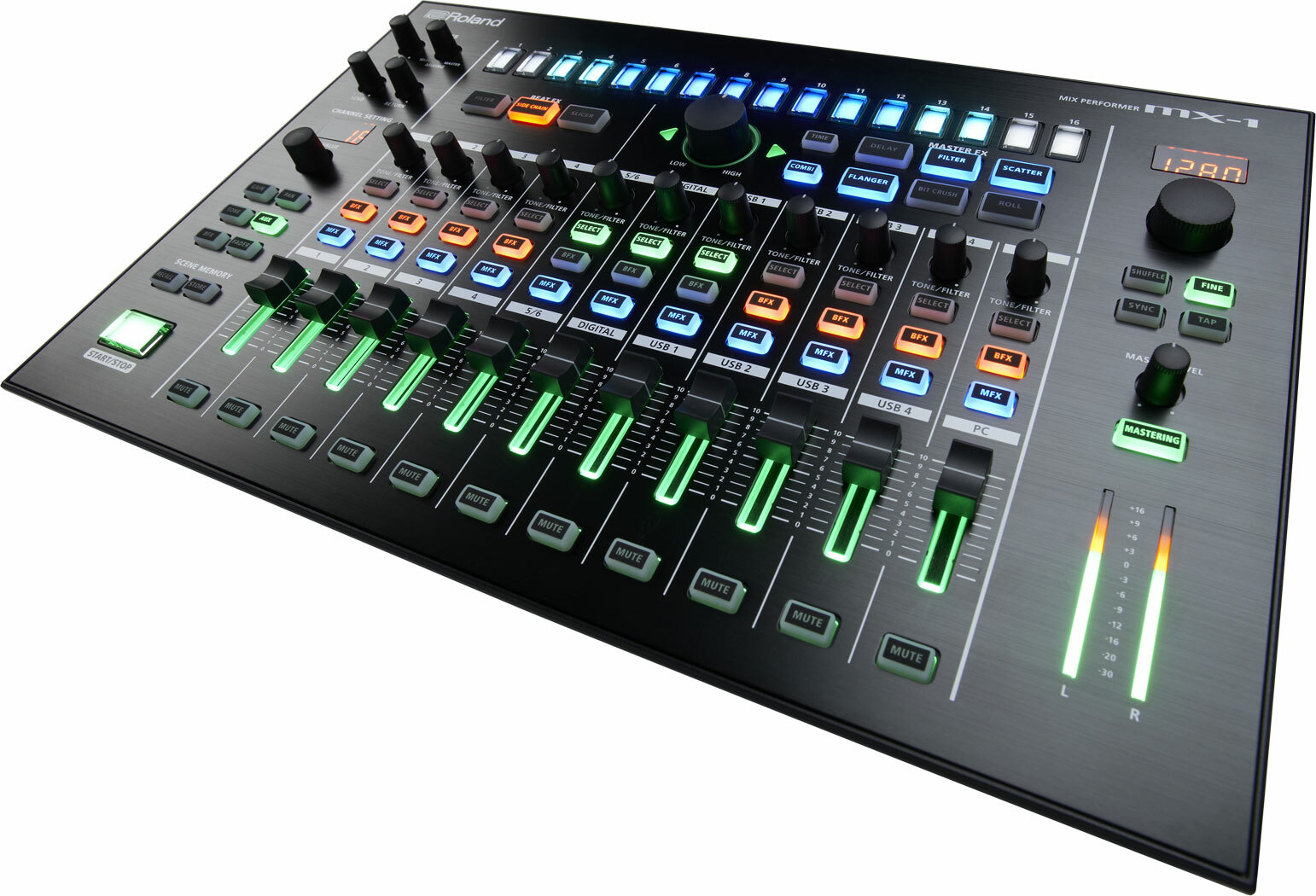

The Roland MX-1 Mix Performer brings together your synths, drum machines, loops, DAW tracks, and more into a single performance-optimized mixing instrument.

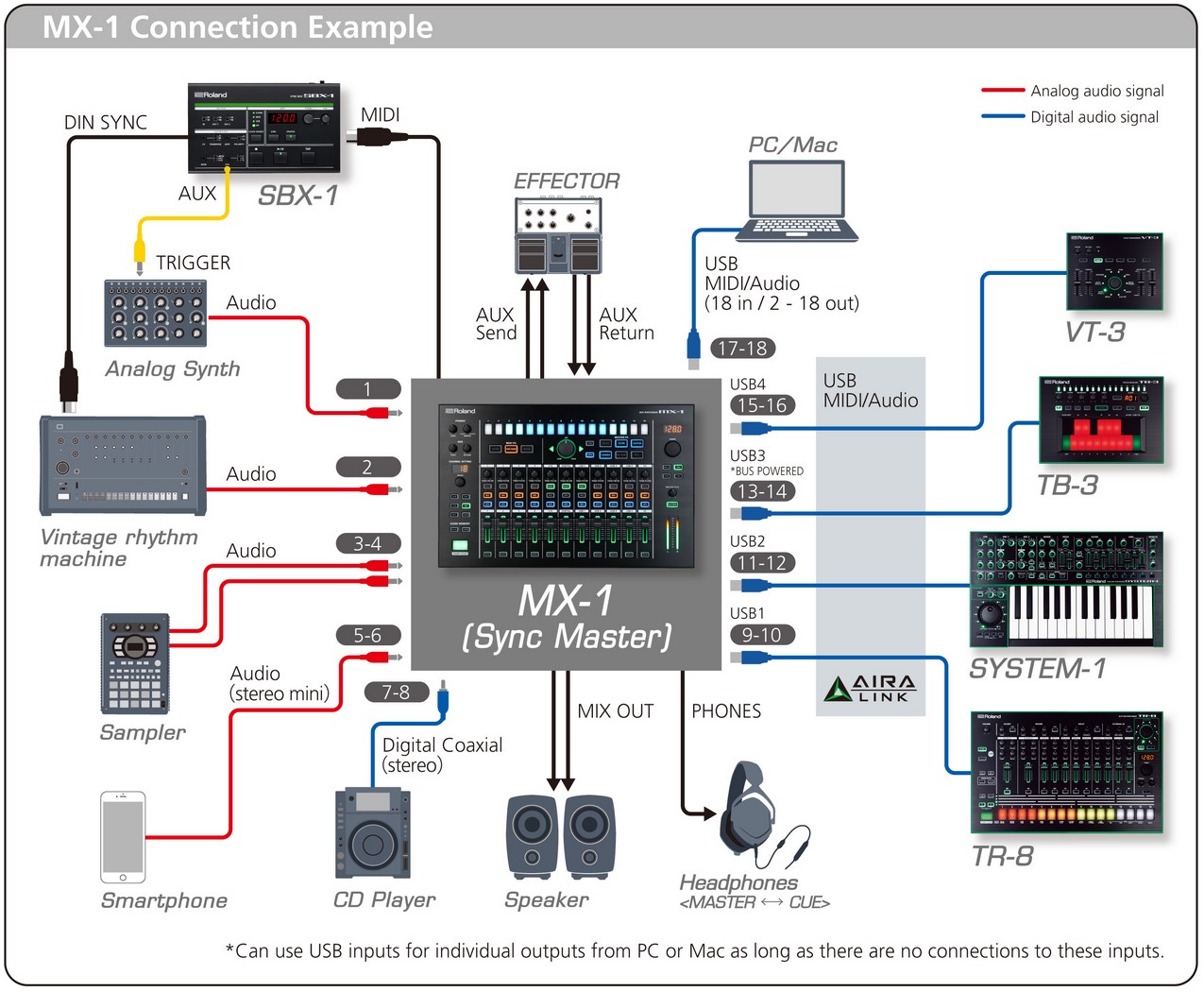

With six analog inputs, four AIRA Link USB ports, digital I/O, send and return jacks, and the ability to stream 18 channels to and from your DAW, the MX-1 brings together a wide range of musical sources and puts them directly under your fingertips.Not only do the MX-1’s effects sound great, they’re designed for ready manipulation and rhythmic sensibility, thanks to the MX-1’s tempo awareness and the TR-style step interface.

Technisch papier

Tempo
40–300
Scene Memory
16 x 4 (Bank A, B)
BEAT FX
FILTER: 5 types
SIDE CHAIN: 5 types
SLICER: 5 types
MASTER FX
DELAY: 8 types
FILTER: 8 types
SCATTER: 8 types
FLANGER: 8 types
BIT CRUSH: 8 types
ROLL: 8 types
MASTERING
10 types
Number of USB Audio Max Input/Output Channels
Sampling frequency: 96 kHz, 48 kHz, 44.1 kHz
Input: 18 channels
Output: 18 channels
Signal Processing
PC interface: 24 bits
AD/DA conversion: 24 bits
Sampling Frequency
AD/DA conversion: 96, 48, 44.1 kHz
DIGITAL (IN, OUT): 96, 48, 44.1 kHz
Nominal Input Level (variable)
Input 1–4: -26– +4 dBu
Input 5/6: -26– +4 dBu
Nominal Output Level
MIX OUT: +4 dBu
Head Room: 18 dB
Input Impedance
Input 1–4: 100 k ohms
Input 5/6: 100 k ohms
Output Impedance
MIX OUT: 1 k ohm
PHONES: 24 ohms
Frequency Response
96.0 kHz: 20 Hz–40 kHz (+0/-2 dB)
48.0 kHz: 20 Hz–22 kHz (+0/-2 dB)
44.1 kHz: 20 Hz–20 kHz (+0/-2 dB)
Dynamic Range
AD block INPUT 1–4: 100 dB typ.
AD block INPUT 5/6: 100 dB typ.
DA block MIX OUT: 108 dB typ.

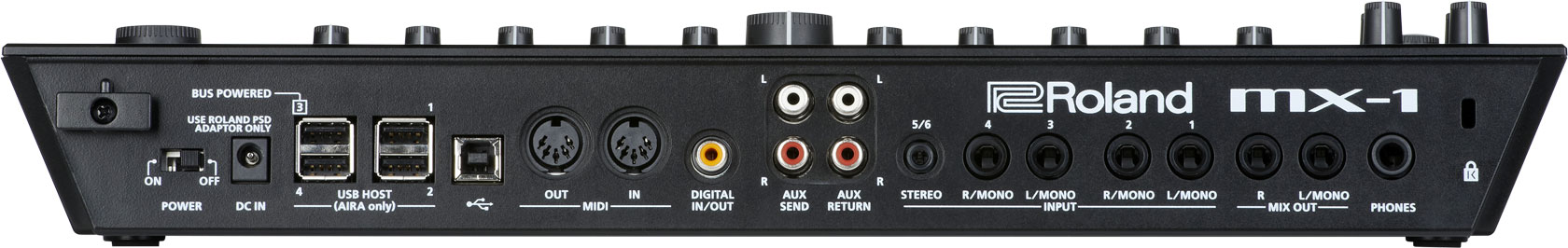

Connectors
PHONES jack: 1/4-inch stereo phone type
MIX OUT (L/MONO, R) jacks: 1/4-inch phone type (unbalance)
INPUT 1–4 (L/MONO, R/MONO) jacks: 1/4-inch phone type (unbalance)
INPUT 5/6 jack: Stereo miniature phone type
AUX RETURN (L, R) jacks: RCA phono type
AUX SEND (L, R) jacks: RCA phono type
USB FUNCTION Port: USB type B (Audio, Midi)
USB HOST 1–4 ports: USB type A (Audio, Midi, for only TB-3/VT-3/TR-8/SYSTEM-1)
USB HOST 3 port can supply USB Bus power
COAXIAL IN/OUT jack
MIDI (IN, OUT) connectors
DC IN jack
Interface
Hi-Speed USB
Digital input, output: Coaxial type (conforms to IEC60958)
MIDI IN/OUT
Power Supply: AC adaptor
Current Draw: 1.7 A
Accessories
Owner's manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Size and Weight
Width
400 mm
15-3/4 inches
Depth
264 mm
10-7/16 inches
Height
65 mm
2-9/16 inches
Weight
1.81 kg
3 lbs. 16 oz.
