Stereo krachtversterker

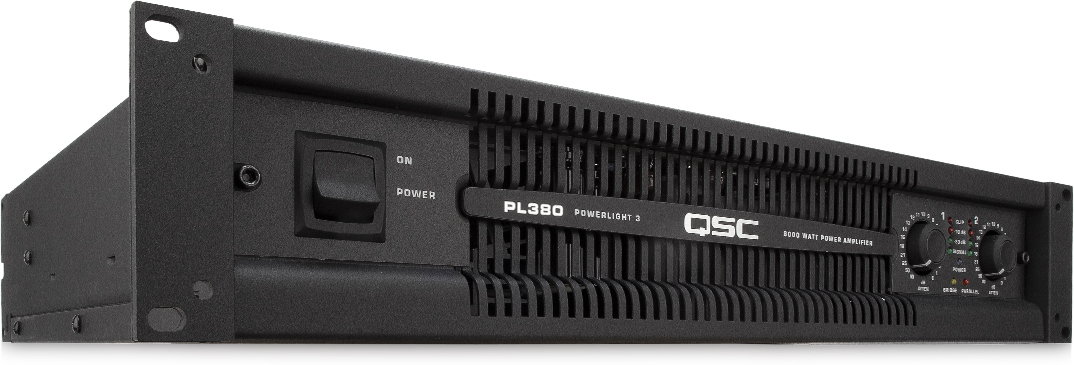

The QSC PL 380 is a poweramp with a switch mode for highest efficiency and improved audio performance.
- Flow-through air path and solid aluminum heat sinks for maximum cooling
- DataPort supports remote network control and monitoring via Q-SYS
- Detented gain controls with 1-dB steps for precise calibration
- Removable knobs with lock-out security plate to prevent unauthorized tampering
- User defeatable clip limiters and selectable low-frequency filter per channel (3 Hz, 30 Hz, or 50 Hz)
- Three selectable gain structures (26 dB, 32 dB, or 1.2 V)
- Front and rear panel LEDs indicate status of switch settings at a glance
- Parallel XLR/M and XLR/F connectors for simple loop-through connectivity
- Neutrik Speakon® and "Touch-Proof" binding post outputs
- Neutrik Powercon® power cable remains secure on the road
- 3 year warranty, plus optional 3 year extended service contract
- Linear Class H output circuit offer double the typical efficiency of Class B, reducing AC current consumption and cooling requirements
- Flow-through air path and solid aluminum heat sinks for maximum cooling
- DataPort supports remote network control and monitoring via Q-SYS
- Detented gain controls with 1-dB steps for precise calibration
- Removable knobs with lock-out security plate to prevent unauthorized tampering
- User defeatable clip limiters and selectable low-frequency filter per channel (3 Hz, 30 Hz, or 50 Hz)
- Three selectable gain structures (26 dB, 32 dB, or 1.2 V)
- Front and rear panel LEDs indicate status of switch settings at a glance
- Parallel XLR/M and XLR/F connectors for simple loop-through connectivity
- Neutrik Speakon® and "Touch-Proof" binding post outputs
- Neutrik Powercon® power cable remains secure on the road
- 3 year warranty, plus optional 3 year extended service contract
- Linear Class H output circuit offer double the typical efficiency of Class B, reducing AC current consumption and cooling requirements
Lire la suite
Technisch papier
- Vermogensversterker Boven 600 watt RMS
- OUTPUT POWER PER CHANNEL, STEREO MODE,
- both channels driven
- 8Ω EIA 1 kHz 1% THD: 1500 W
- 4Ω EIA 1 kHz 1% THD: 2500 W
- 2Ω EIA 1 kHz 1% THD: 4000 W
- OUTPUT POWER, BRIDGE MONO MODE
- 8Ω EIA 1 kHz 1% THD: 5000 W
- 4Ω EIA 1 kHz 1% THD: 8000 W
- Class D
- Input Impedance > 10 kΩ balanced, or unbalanced
- Cooling Variable-speed fan, rear-to-front air flow
- Connectors (each channel) Input: XLR Male, XLR Female and 3-pin detachable terminal blocks (1 each per channel)
- Output: Neutrik Speakon® (ch 1 wired to both channels) and 5-way binding posts
- DataPort: HD-15, input signal in parallel with XLR input connectors
- Front Controls AC power switch
- Gain controls, 21 detents, 1 dB steps (each channel)
- Front Indicators (LED color) Power (Blue)
- Bridged (Yellow)
- Parallel (Orange)
- Clip/Prot (Red × 2)
- Level -10 (Orange × 2)
- Level -20 (Green × 2)
- Signal -35 (Green × 2)

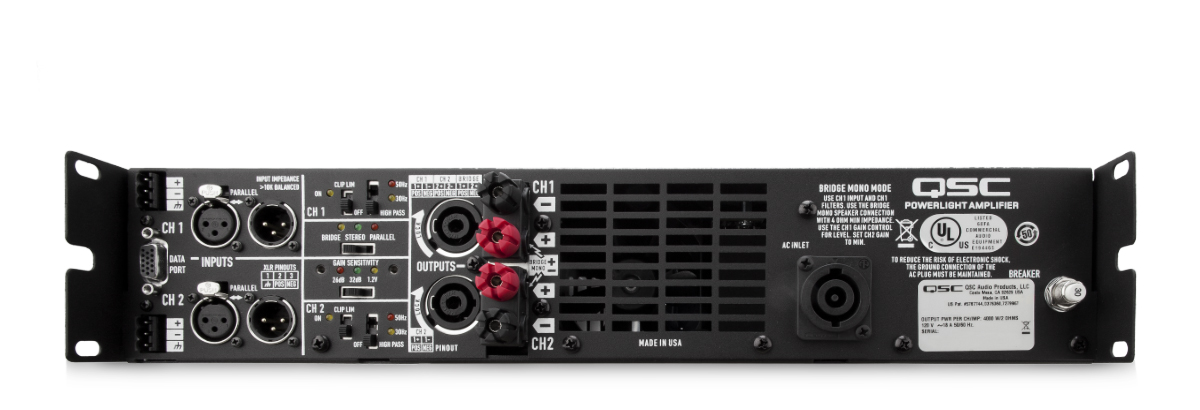

- Rear Controls (with LED indicators) Input Mode: Bridge (Yellow), Stereo (Green), or Parallel (Orange)
- Gain / Sensitivity: 26 dB (Orange), 32 dB (Green), or 1.2V (Yellow)
- High Pass (each channel): 3 Hz (Off), 30 Hz (Yellow), or 50 Hz (Orange)
- Clip Limiter (each channel): Off, on (Yellow)
- Amplifier and Load Protection Short circuit, open circuit, thermal, RF protection. On/off muting, DC fault shutdown, active inrush limiting
- Dimensions Height: 3.5" (8.9 cm) 2RU
- Width: 19" (48.3 cm)
- Depth: 15.63" (39.7 cm) from front mounting rails
- Weight Net: 22 lb (10 kg)
- Agency Approvals: UL, CE, RoHS/WEEE compliant, FCC Class B (conducted and radiated emissions)
- OUTPUT POWER PER CHANNEL, STEREO MODE,
- both channels driven
- 8Ω EIA 1 kHz 1% THD: 1500 W
- 4Ω EIA 1 kHz 1% THD: 2500 W
- 2Ω EIA 1 kHz 1% THD: 4000 W*
- OUTPUT POWER, BRIDGE MONO MODE
- 8Ω EIA 1 kHz 1% THD: 5000 W
- 4Ω EIA 1 kHz 1% THD: 8000 W
