Ortofon 2M BLUE
- Lees recensies (0)
- Gerelateerde accessoires
- Gratis bezorging
- Gegarandeerd lage prijzen
- Tevreden of terugbetaald
- 3 jaar garantie
- Ref : 110032
In voorraad
Binnen 5-7 dagen verzonden
Voorraad in de winkel
Niet verkrijgbaar in de winkel
Het merk Ortofon
Leer meer over het merk Ortofon en ontdek de volledige catalogus.
Het grootste netwerk van winkels in Frankrijk
Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.
Neem contact op met een deskundige
Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.
Elementnaald

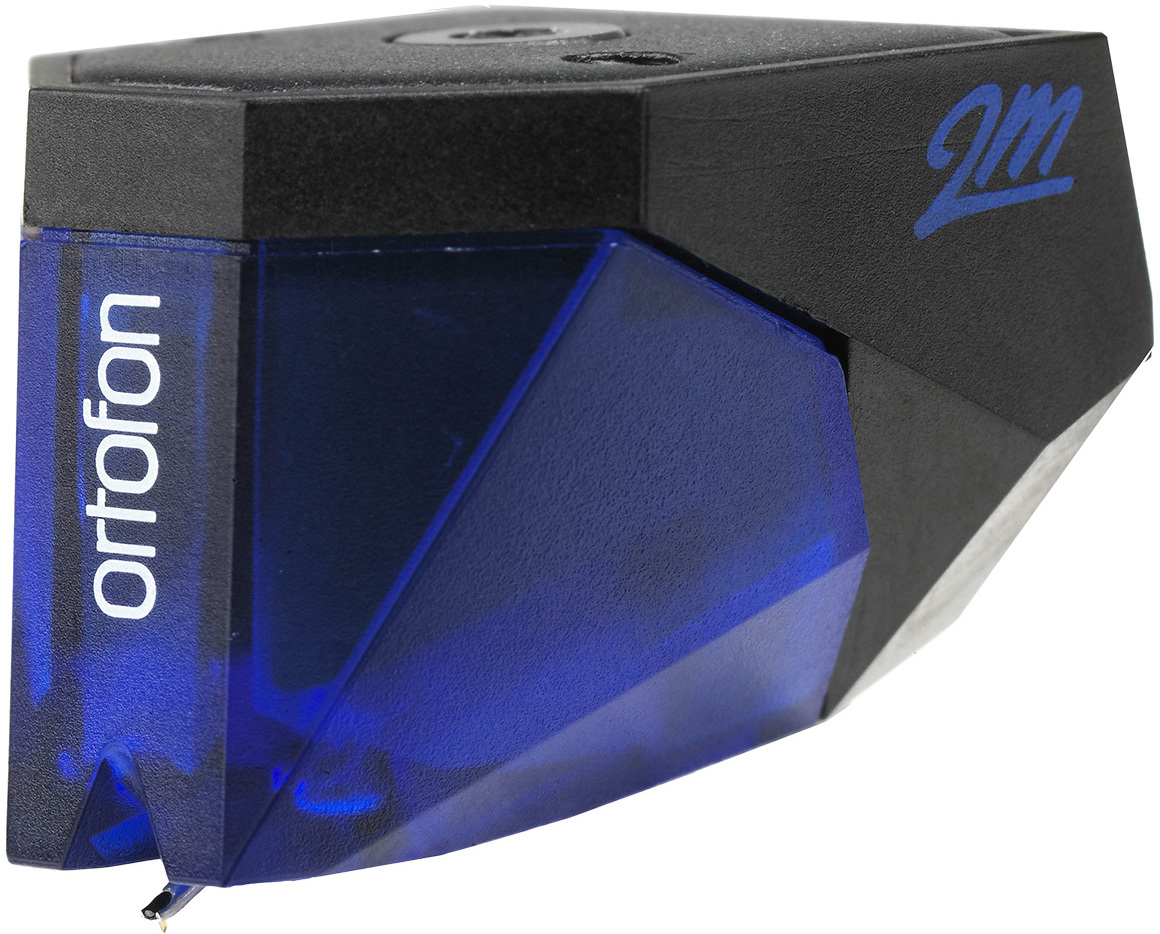

The Ortofon 2m blue is a cell for turntables.
Featuring an all-diamond Fine Line elliptical tip and copper-wire split-pole pins, and carefully designed for ease of mounting, it's also optimized in terms of weight and size to fit harmoniously with the most common turntables on the market today. The 2M series offers exceptional compatibility, integrating easily into a variety of playback systems and paired with a wide range of phono preamps.
The 2M Blue brings superior dynamics and resolution, offering a more open sound and more detailed reproduction than the 2M Red model.
- Recommended load capacitance: 150-300 pF
- Cell and pen color: Black/Black
- 2MR cell weight: 6 g
- Weight of Verso 2M and 2M cells: 7.2 g
- Weight of 2M pre-mounted cell: 16.7 g
Featuring an all-diamond Fine Line elliptical tip and copper-wire split-pole pins, and carefully designed for ease of mounting, it's also optimized in terms of weight and size to fit harmoniously with the most common turntables on the market today. The 2M series offers exceptional compatibility, integrating easily into a variety of playback systems and paired with a wide range of phono preamps.
The 2M Blue brings superior dynamics and resolution, offering a more open sound and more detailed reproduction than the 2M Red model.
- Recommended load capacitance: 150-300 pF
- Cell and pen color: Black/Black
- 2MR cell weight: 6 g
- Weight of Verso 2M and 2M cells: 7.2 g
- Weight of 2M pre-mounted cell: 16.7 g
Lire la suite
Technisch papier
- Type: MM (Moving magnet)
- Diamond : Bare point / Elliptical
- Output voltage at 1000 Hz, 5 cm/sec: 5.5 mV
- Channel balance at 1 kHz: 1.5 dB
- Channel separation at 1 kHz: 25 dB
- Channel separation at 15 kHz: 15 dB
- Frequency response: 20-20,000 Hz (+2 / -1 dB)
- Readability (315 Hz with recommended contact force): 80 ?m
- Compliance, dynamic, lateral: 20 ?m/mN
- Stylus tip radius: r/R 8/18 ?m
- Bearing force range: 1.6 to 2.0 g (16 to 20 mN)
- Recommended contact force: 1.8 g (18 mN)
- Bearing angle: 20
- Internal impedance: 1.3 ohms
- Internal inductance: 700 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 p
