Analoge mengtafel

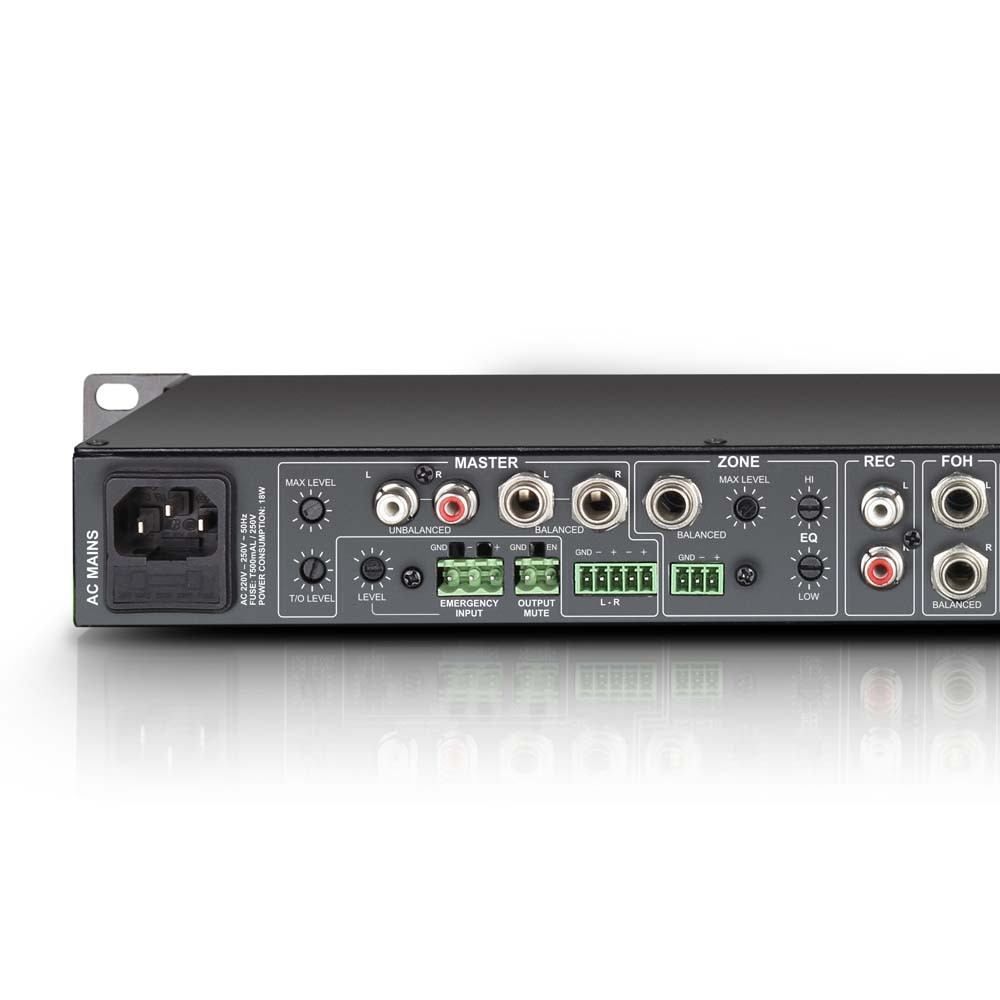

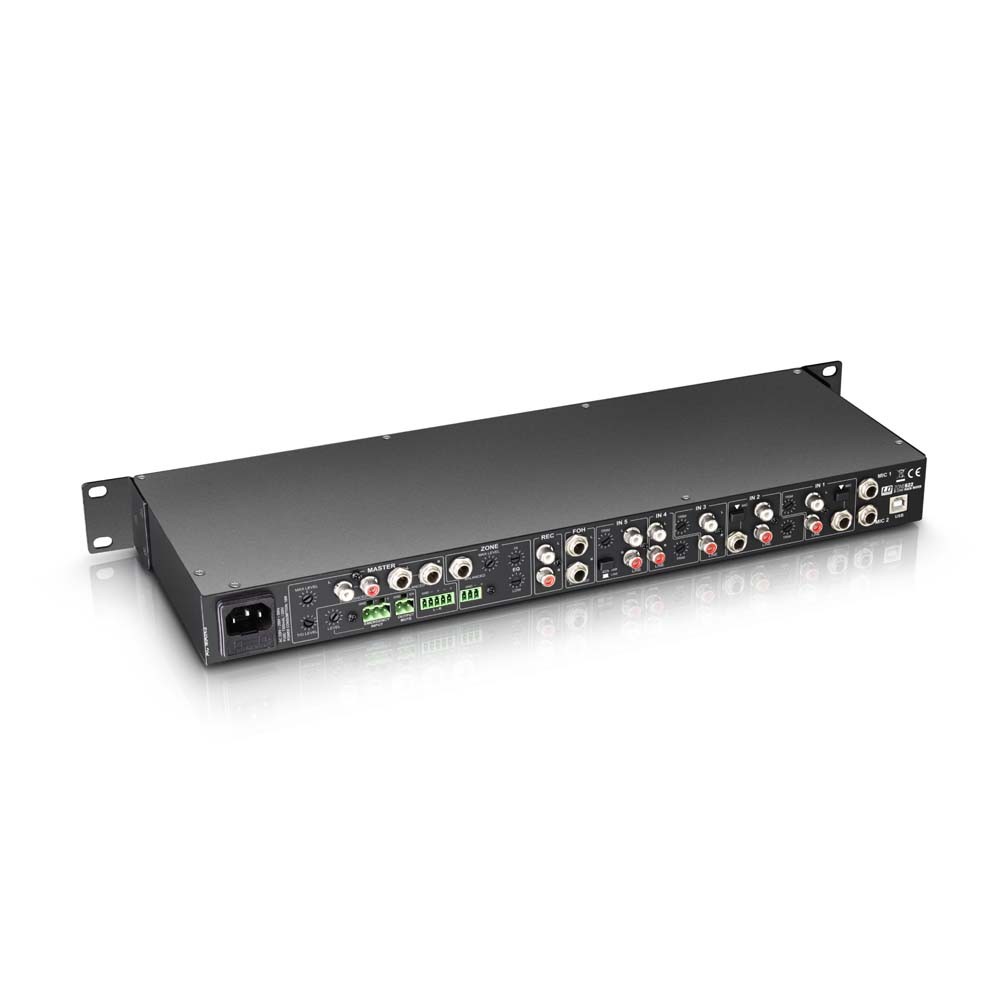

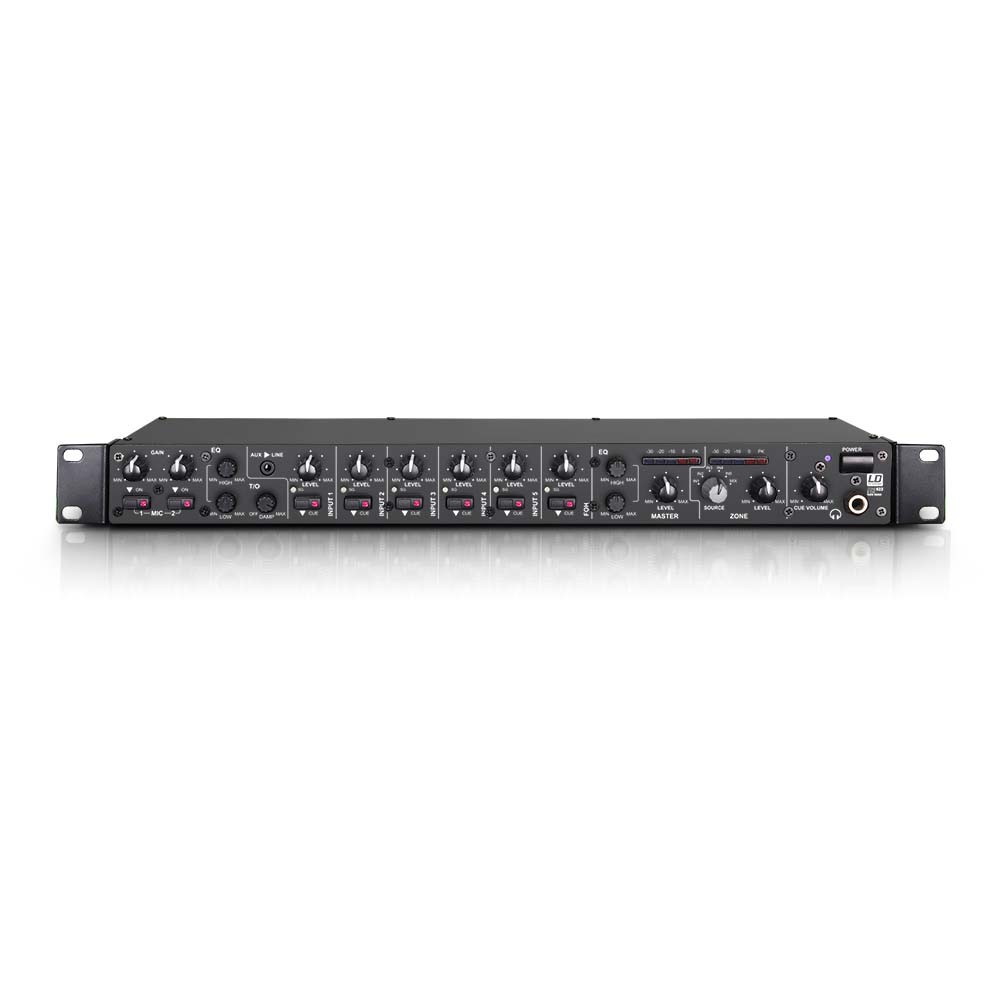

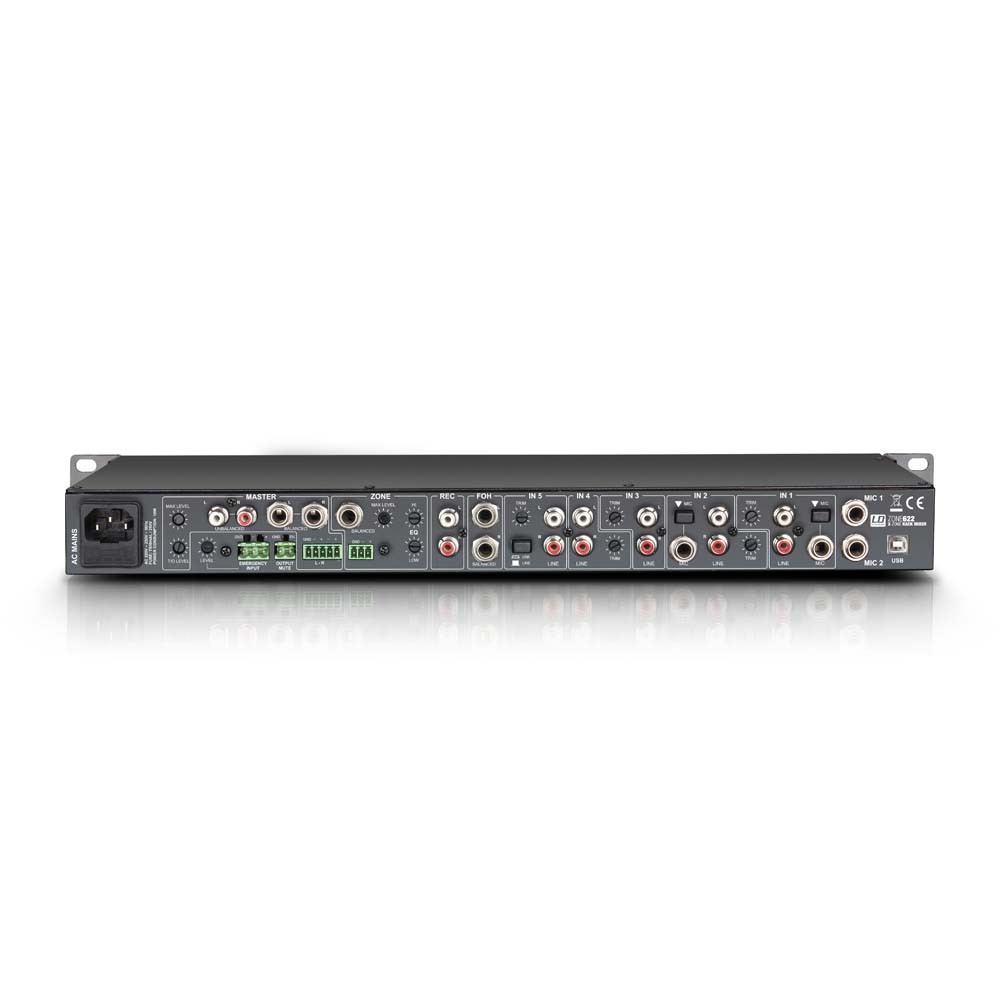

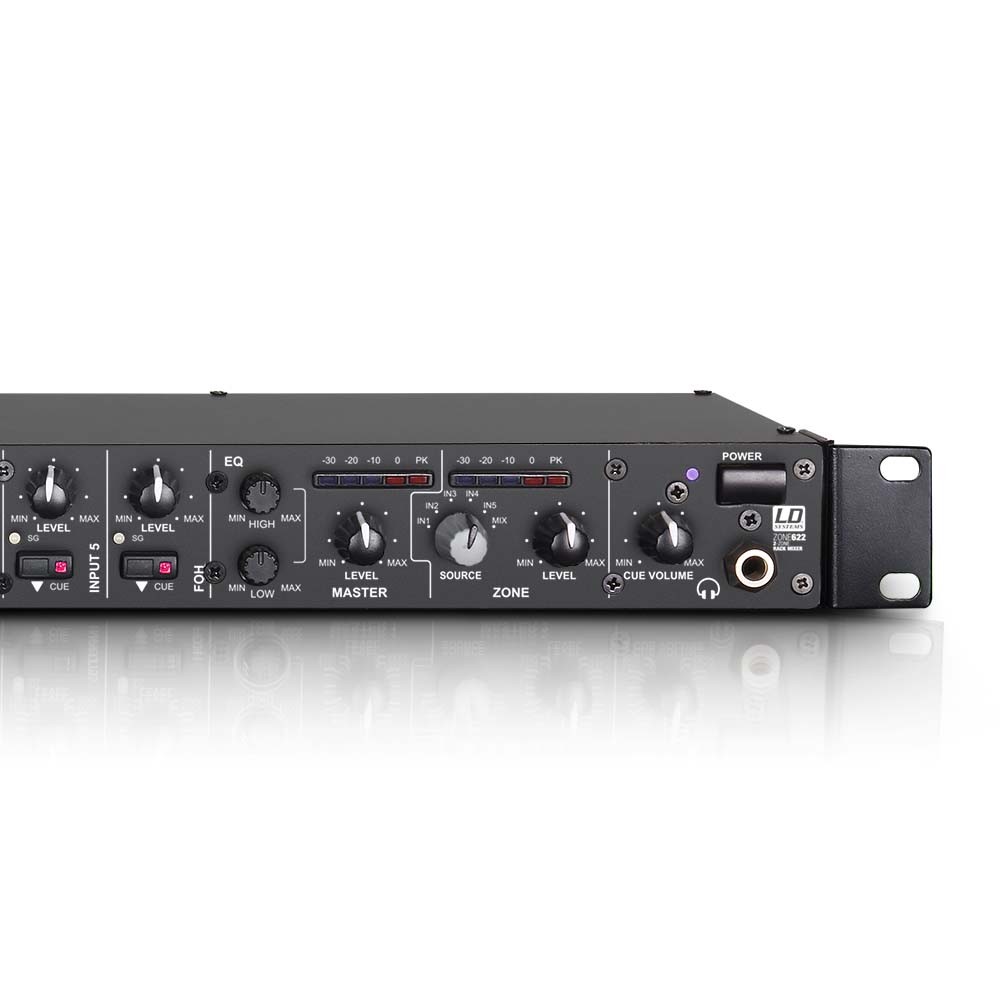

Ld sytems Zone 622 is a 1U rack-mountable 2-zone mixer.

The ZONE 622 is a particularly compact 1U zone mixer with 6 line channels and 2 microphone channels, which can be assigned to a stereo or mono master output. The unit has all the essential functions, an input for an external emergency announcement system with its own volume control, and a connection to the remote switching mute. The ZONE 622 is suitable as a PA system for separate areas in restaurants, clubs, hotels, fitness centres and for presentations.

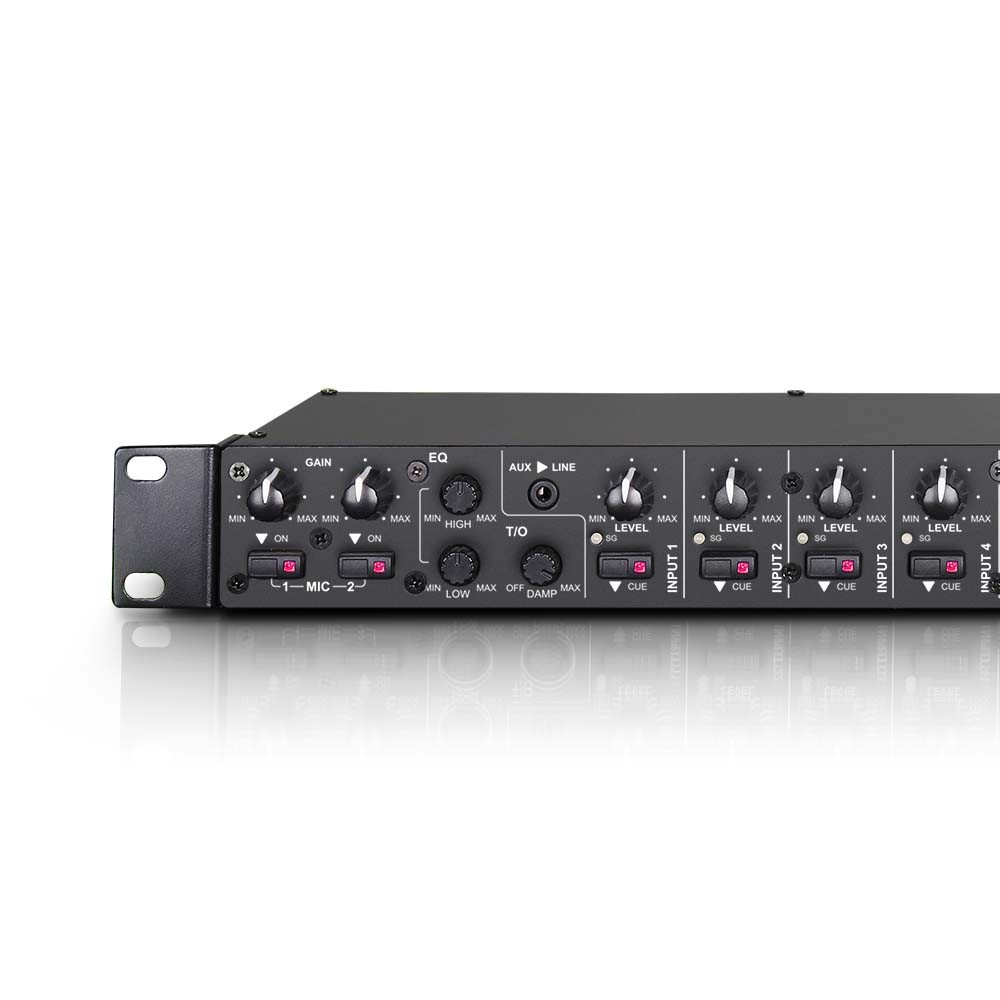

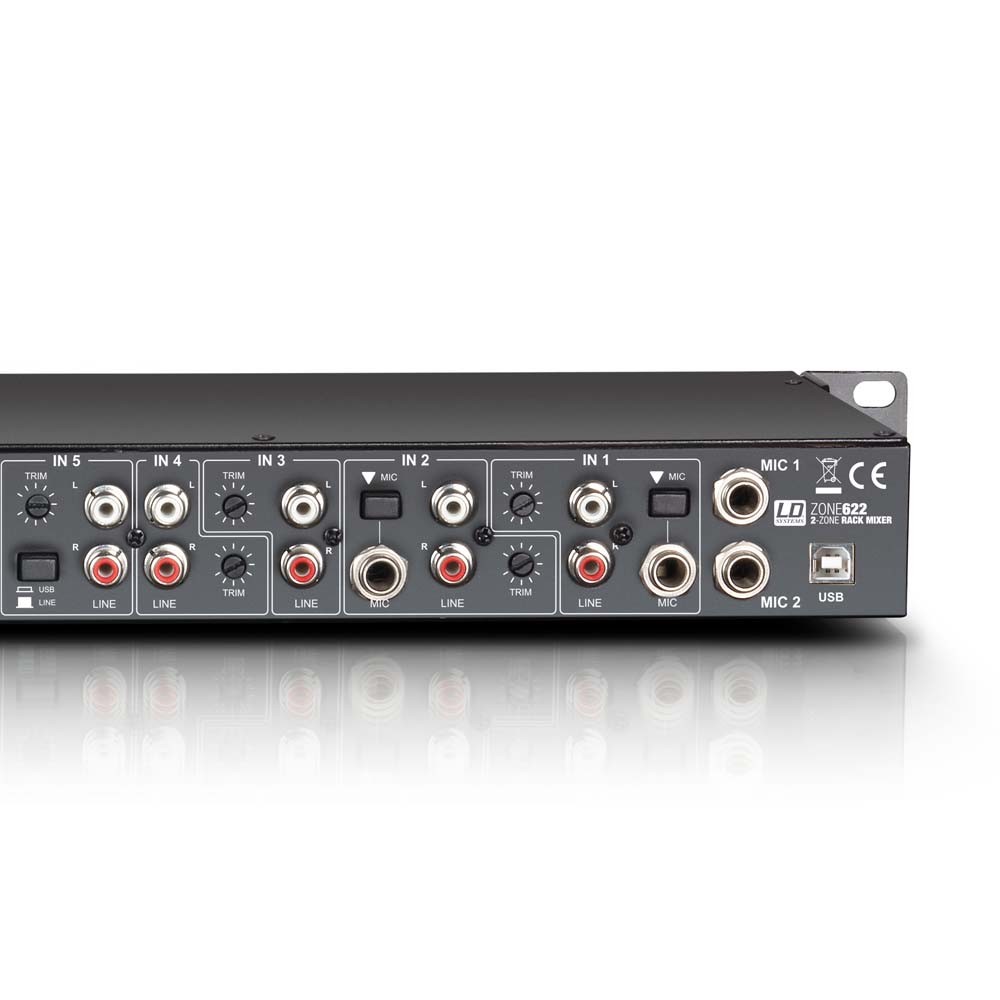

The two balanced microphone channels with stereo jack inputs are equipped with controls for gain, talkover volume, talkover attenuation, 12V phantom power and a shared 2-band EQ. Line channels 1 and 2 can also be used to connect unbalanced microphones, and channel 6 is specially designed for balanced FOH signals. The stereo input channels of the ZONE 622 feature a cue button and volume control signal display, and channels 1 to 5 have an additional gain potentiometer. In addition, the zone mixer has a 3.5 mm mini-jack input and a USB port, used as stereo input and output (recording output). So you can use the ZONE 622 as an external audio interface.
Lire la suite

Technisch papier

  • Aantal kanalen 6 kanalen
  • Aantal kanalen mengtafel 6 en 8 kanalen
  • Mengtafel connectiviteit Zonder informatica aansluiting
  • Product type
  • Mixing consoles
  • Type
  • Installations
  • Number of Zones
  • 2 (Master, Zone)
  • Type
  • Stereo
  • Height
  • 1 U
  • Total number of input channels
  • 8 (2x Mic, 2x Mic/Line, 3 x Line, 1x FOH)
  • Frequency Response
  • 20 - 40000
  • Number of Mic Channels
  • 2 (with 12-volt phantom power)
  • Connectors on Mic Channels
  • 6.35 mm jack (balanced)
  • Mic channel controls
  • 1 x EQ Hi, 1 x EQ Low, 1 x Talk Over Damp, 1 x Talk Over Level, Gain, On / Off
  • Indicators on mic channel
  • On" LED
  • Mic Channel Input Impedance
  • 4 kohms
  • Input sensitivity on mic channel
  • 6.1 mV
  • Total Harmonic Distortion on Microphone Channel
  • 0,08%
  • Number of Line/Mic Channels
  • 2
  • Line/mic input connectors
  • 3.5 mm stereo mini-jack (Input 1), 2 x RCA, 6.35 mm jack (balanced)
  • Line/mic channel controls
  • Cue, Mic/Line, Level, Trim
  • Line/Mic channel indicators
  • Cue LED, Signal LED
  • Number of Line Channels
  • 3
  • Line input connectors
  • Input 3-4: 2 x RCA/cinch, Input 5: 2 x RCA/cinch + USB
  • Controls on Line Channels
  • Cue, Level, Trim
  • Indicators on Line Channels
  • Cue LED, Signal LED
  • Line input impedance
  • 4 kohms
  • Line input sensitivity
  • 1,5 V
