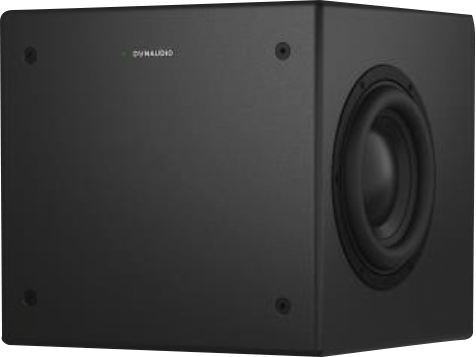

DYNAUDIO Core Sub Compact

The Core Sub Compact, along with the Core 5, represents an evolution of the successful Core monitor series. They are designed to meet the demands of today's modern production environments: compact or medium-sized studios, broadcast vans that still demand the precision of high-quality reference sound. The new models have been created to seamlessly integrate with other Core range speakers: they use the same reliable and proven components, the same exceptional speaker technology, as well as the same digital signal processors and amplifiers (Class D).

Compact Size with High Precision

The Core Sub Compact is designed for the most confined production spaces, offering precise and consistent performance at high sound pressure levels (SPL) and reaching down to 16 Hz!

Phase Opposing Hybrid Bass Drivers

Dynaudio's ingenious MSP Hybrid Drive dual opposing assemblies utilize a sandwich construction of MSP (Magnesium Silicate Polymer), aluminum, and paper to maintain rigidity and eliminate resonances. The Core Sub Compact employs two 9-inch (23cm) phase opposing woofers - effectively canceling vibrations inside the speaker enclosure structure, ensuring outstanding performance with minimal distortion... even at high sound pressure levels (SPL).

Pascal UMAC™ Class D Amplifier

The Core Sub Compact is equipped with a reference-quality amplifier specially manufactured for Dynaudio by our friends at Pascal in Copenhagen, Denmark.
Lire la suite

Technisch papier

  • Monitorkleur Zwart
    • Designed for the most confined production spaces
    • Delivers precise and articulate SPL performance
    • Impressive frequency response extends down to 16 Hz
    • Uses Dynaudio's ingenious MSP Hybrid Drive units for accurate low-frequency reproduction
    • Dark Grey finish
    • Made in Denmark
  • Core Sub Compact Specifications:

    • Type: Subwoofer
    • Crossover: N/A
    • Crossover Frequency (Hz): N/A

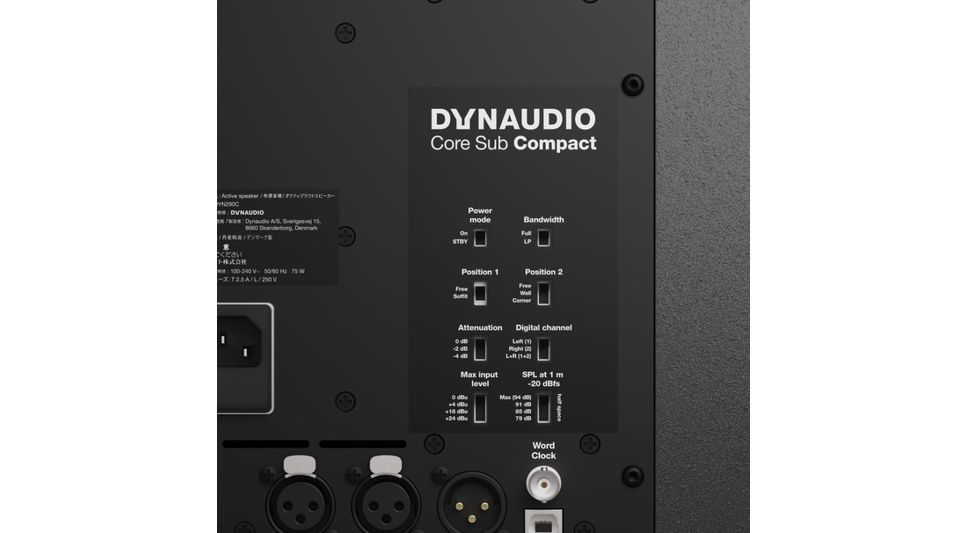

    • Analog Inputs: 1 x Female XLR, balanced
    • Digital Inputs: 1 x AES3 Female XLR, 1 x BNC Word Clock
    • Digital Outputs: 1 x AES3 Male XLR, pass-through
    • Amplifiers: Class D (Pascal Brand) – 2 x 280W
    • Tweeter Amplifier Power (Watt): N/A
    • Woofer Amplifier Power (Watt): 2 x 280W*
    • Power Supply: 100 - 240V, 50/60Hz
    • Auto Power On/Off: Yes
    • Max Standby Power Consumption (Watt): 0.48
    • Peak SPL (Anechoic dB @ 1m): 109
    • Max SPL (Anechoic dB @ 1m): 100
    • Max SPL (Half-Space dB @ 1m): 106
    • Enclosure Principle: Sealed
    • Woofer: 2 x 9 inches (23cm) MSP + Hybrid Drive
    • Weight: 26.1kgs / 57.5lb
    • Dimensions (W x H x D): 418 x 360 x 378mm, 16 1/2 x 14 x 15 inches
    • Packaging: 1 subwoofer per package
    • Frequency Response (+/-3 dB): 16Hz – 200Hz
    • Frequency Response (-6 dB): 15Hz – 230Hz
    • Resolution: Max. 24-bit / 192kHz, depending on input signal (sampling rates of 32, 44.1, 48, 96 & 192kHz supported; analog operates at 48kHz)
  • * System limited by the RMS power limit of the SMPS
