Akg C414 XLII
- Lees recensies (1)
- Gerelateerde accessoires
- Vergelijkbare producten
VIDEO
VIDEO
- Gratis bezorging
- Gegarandeerd lage prijzen
- Tevreden of terugbetaald
- 3 jaar garantie
- Ref : 430
In voorraad
binnen 24 uur leverbaar
Andere versie(s) of bijbehorende product(en)
Het merk Akg
Leer meer over het merk Akg en ontdek de volledige catalogus.
Microfoon koopgids
Welke microfoon moet je kopen om zang, gitaar of drums op te nemen? Alles wordt uitgelegd via deze koopgids!
Neem contact op met een deskundige
Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.
Beschrijving

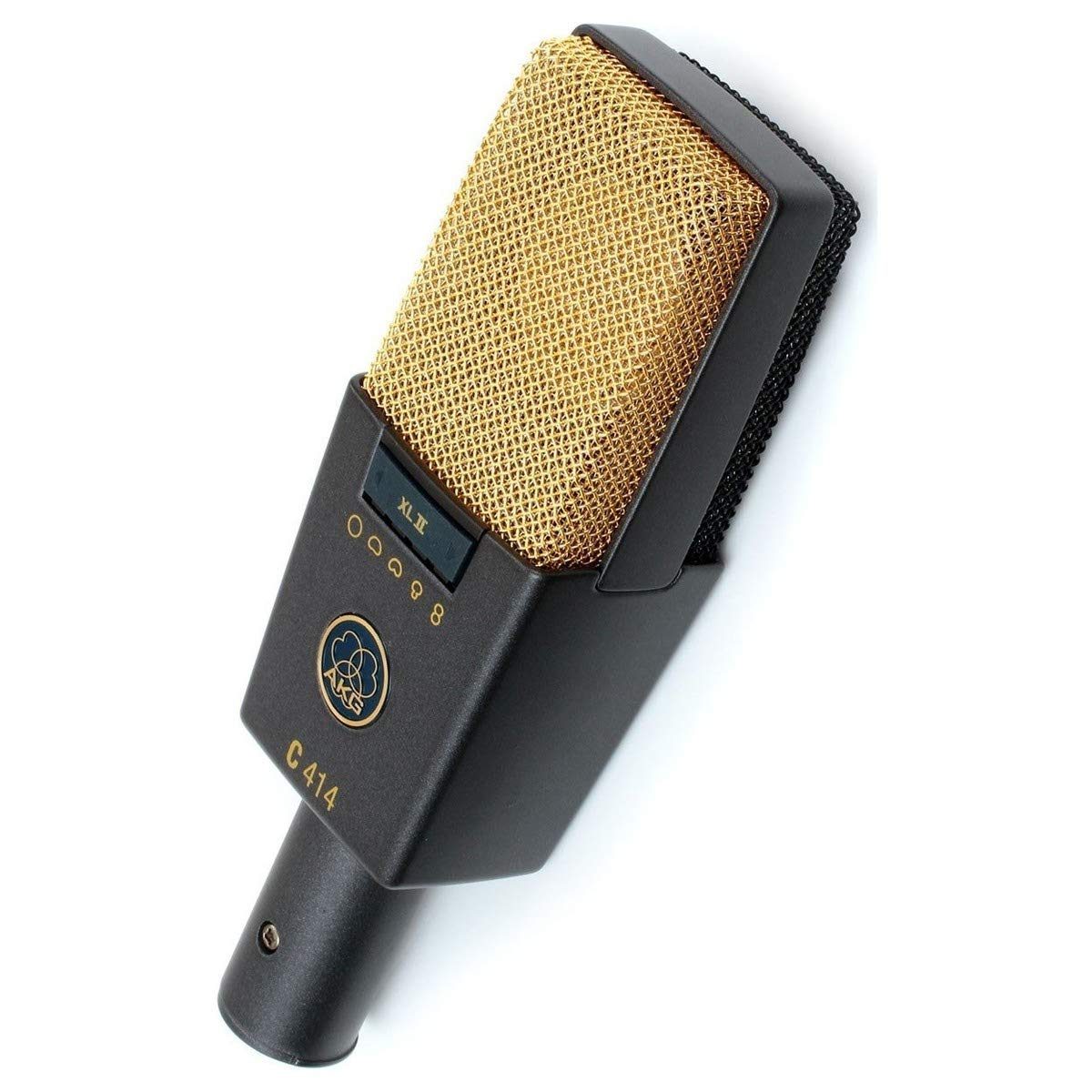

The C414 XLII is a large-diaphragm studio microphone.
The C 414 XLII has been developed as an acoustic alternative to the standard C 414 XLS and produces a sound very similar to that of the well-known AKG C 12. It is identical to the C 414 XLS except that it slightly accentuates the high frequencies from 3 kHz onwards by means of a completely different acoustic resistance. This high-frequency emphasis, which brings out the grain of the human voice, makes the C 414 XLII particularly suitable for recording soloists, whether singers or instrumentalists (see also chapters 4.5 and 4.6). In addition, it is ideally suited for recording from a great distance, such as from the ceiling of a concert hall.
The C 414 XLII has been developed as an acoustic alternative to the standard C 414 XLS and produces a sound very similar to that of the well-known AKG C 12. It is identical to the C 414 XLS except that it slightly accentuates the high frequencies from 3 kHz onwards by means of a completely different acoustic resistance. This high-frequency emphasis, which brings out the grain of the human voice, makes the C 414 XLII particularly suitable for recording soloists, whether singers or instrumentalists (see also chapters 4.5 and 4.6). In addition, it is ideally suited for recording from a great distance, such as from the ceiling of a concert hall.
Lire la suite
Technisch papier
- Principle: 25 mm large diaphragm system based on the pressure gradient principle
- Number of directional characteristics: 9, switchable
- Sensitivity (open circuit voltage): 23 mV/Pa (-33 dBV ± 0.5 dB)
- Frequency response: 20 to 20,000 Hz (see response curve)
- Electrical impedance: ? 200 ohms
- Recommended load impedance: ? 2200 ohms
- Bass reduction filter slope: 12 dB/octave at 40 Hz and 80 Hz, or 6 dB/octave at 160 Hz
- Pre-attenuation: switchable to -6 dB, -12 dB, -18 dB
- Equivalent noise level according to IEC 60268-4: 20 dB (pre-attenuation at 0 dB)
- Equivalent noise level according to IEC 60268-4 (A-weighted): 6 dB-A (pre-attenuation at 0 dB)
- Signal-to-noise ratio at 1 Pa (A-weighted): 88 dB
- Sound pressure level at 0.5% distortion per harmonic: 200/400/800/1600 Pa 140/146/152/158 dB SPL (0/-6/-12/-18 dB)
- Dynamic range: 134 dB min.
- Output Clipping Level: 5 V rms (+14 dBV)
- Tolerated climatic conditions: - Temperature: -10°C to +60°C - Relative humidity: 95% (+20°C), 85% (+60°C)
- Power supply: Phantom power, 48 Volt, according to IEC 61938
- Power consumption: approx. 4.5 mA
- Connector: Type XLR-3 according to IEC standard
- External dimensions: 50 x 38 x 160 mm
- Net weight: 300 g
- Patents: Electrostatic transducer (patent number AT 395.225, DE 4.103.784, JP 2.815.488, US 7,356,151)

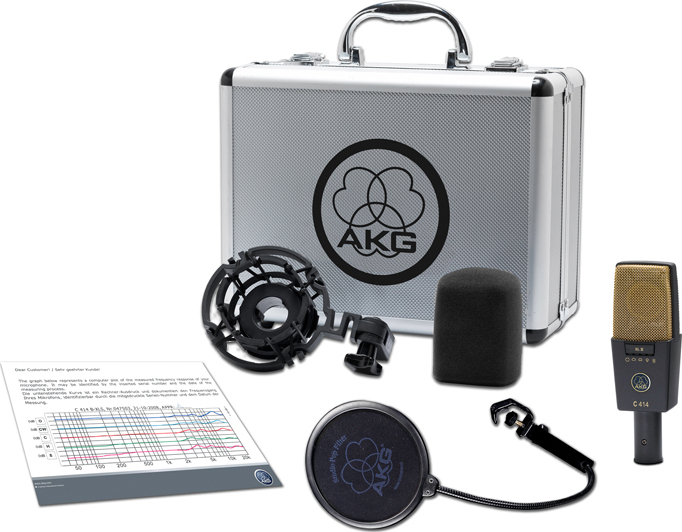

- Supplied with :
- C 414 XLII
- SA 60: microphone clip
- H 85: elastic microphone suspension
- PF 80: pop filter
- W 414X: foam windscreen
- Individual frequency curve with serial number and date code
- Luxurious carrying case
