Spl Phonitor One d

  • Lees recensies (0)
  • Gerelateerde accessoires
  • Spl Phonitor One D -  - Main picture
  • Spl Phonitor One D -  - Variation 1
  • Spl Phonitor One D -  - Variation 2
857,00 €
  • Gratis bezorging
  • Gegarandeerd lage prijzen
  • Tevreden of terugbetaald
  • 3 jaar garantie
  • Ref : 111640
neem contact op met ons
Voorraad in de winkel
Niet verkrijgbaar in de winkel
Ik wil per e-mail op de hoogte worden gehouden

Het merk Spl

Leer meer over het merk Spl en ontdek de volledige catalogus.

Het grootste netwerk van winkels in Frankrijk

Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

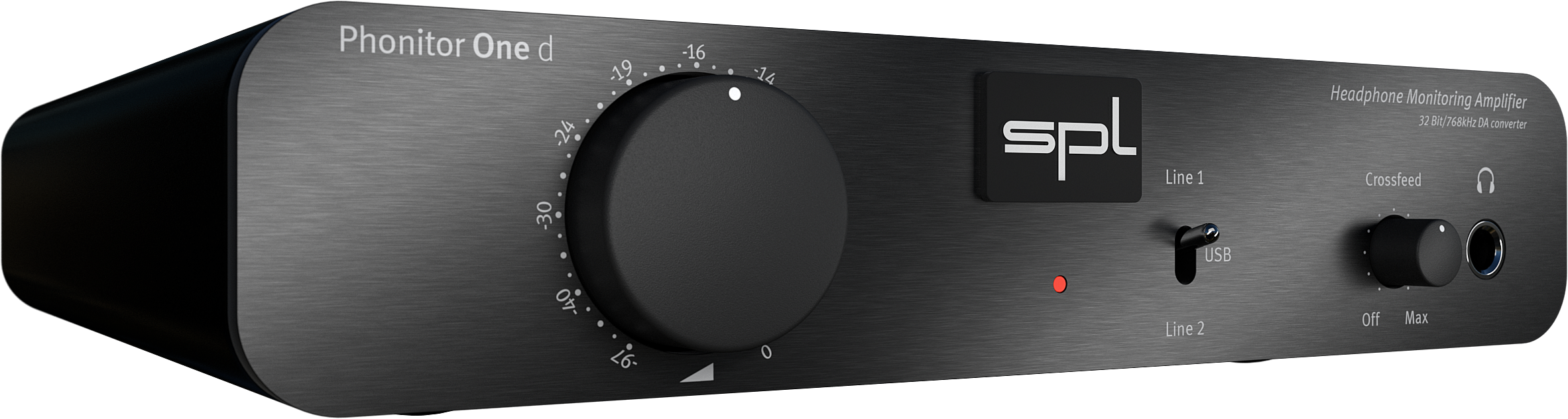

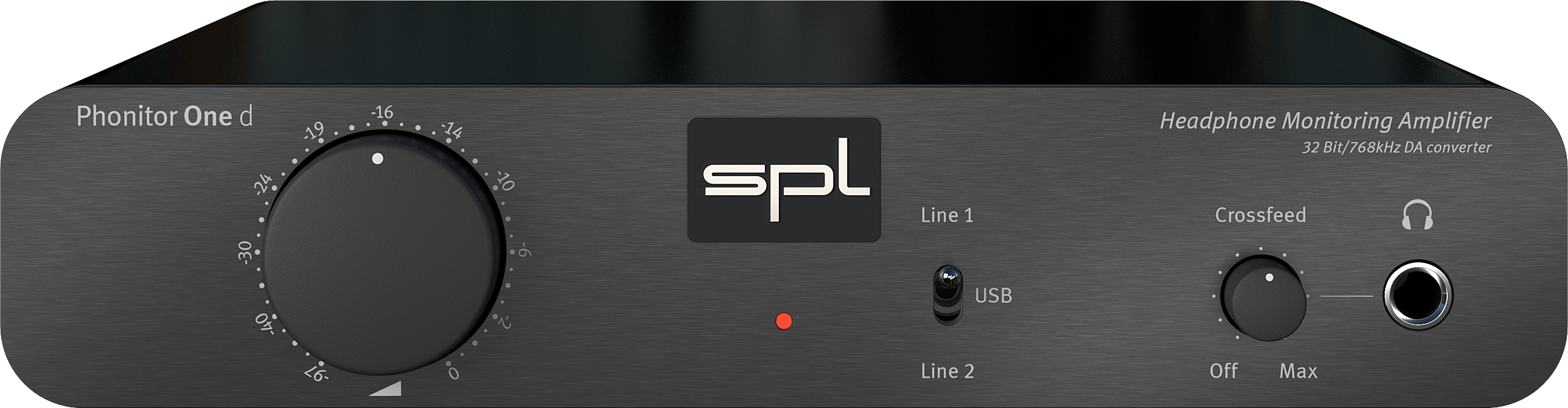

The Phonitor One d is a headphone amplifier offered by the SPL brand.

For preamplification, two Burr-Brown OPA 2134 SoundPlus operational amplifiers have been specially designed to meet the requirements of audiophiles.
Their remarkable performance results in extremely low noise and minimal distortion, measured at just 0.00008%. Featuring an integrated FET stage, these OPA 2134s deliver an impressive slew rate of 20 V/µs, making them a high-speed operational amplifier.
This characteristic results in dynamic and lively sound reproduction.

Additionally, to ensure accurate transmission of high-frequency signals, low-capacitance film capacitors have been integrated into the signal path, acting as bypass capacitors for the coupling capacitors. Panasonic "Electric Double Layer" coupling capacitors were chosen, known to offer the highest storage capacity of all capacitor technologies.
These component choices guarantee faithful and detailed audio reproduction, while preserving the integrity of the original signal.
Lire la suite

Technisch papier

  • Continuously Adjustable Crossfeed Function
    • Crosstalk between the two stereo channels for a more realistic surround sound
  • Digital Input with 32-bit DAC
    • Class Compliant (no drivers required)
    • Support for sampling frequencies up to 768 kHz PCM and DSD playback (DSD4 or DSD256)
    • Pre-amplification by 2 Burr-Brown OPA 2134 SoundPlus operational amplifiers for extremely low noise and minimal distortion
    • THD + N (0 dBu, 10 Hz 22 kHz, 600 Ω): 0.002%
    • Max Input Level: +22.5 dBu
    • Noise (A-weighted, 600 Ω): -97 dBu
    • Max Output Power (600 Ω): 2x 190 mW
    • Max Output Power (250 Ω): 2x 330 mW
    • Max Output Power (47 Ω): 2x 400 mW
    • Headphone Output Frequency Response (-3 dB): 10 - 200,000 Hz

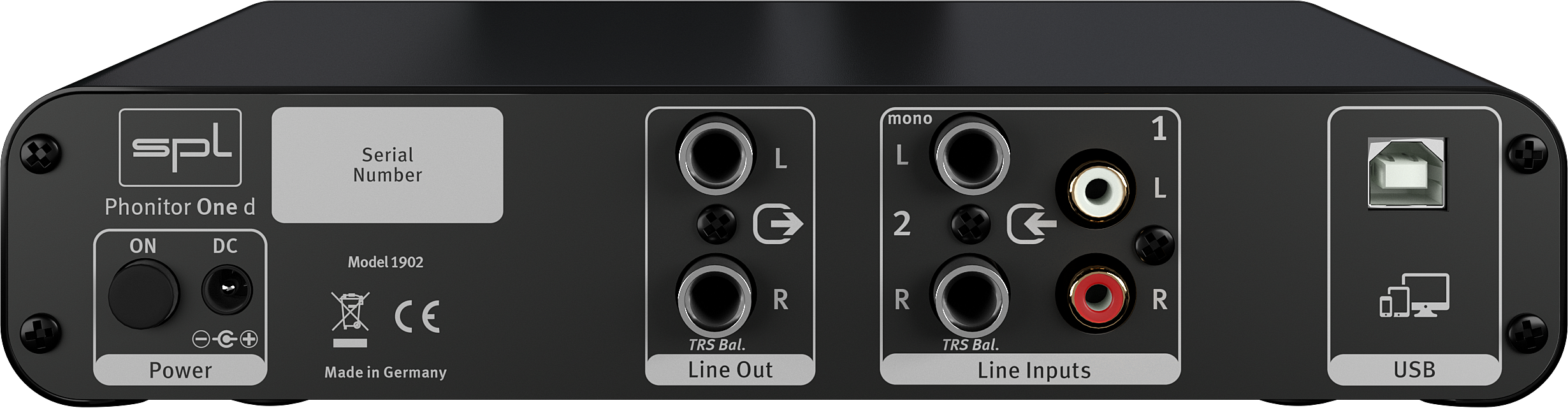

    • Three switchable stereo inputs: balanced 6.3 mm TRS jack, unbalanced RCA, and USB
    • Headphone Output: 6.3 mm stereo jack
  • Dimensions (W x H x D):
    • 210 x 49.6 x 220 mm
  • Weight:
    • 1.45 kg
Meer specificaties
Minder specificaties
