Sound devices MixPre-10-II
- Lees recensies (0)
- Gerelateerde accessoires
- Gratis bezorging
- Gegarandeerd lage prijzen
- Tevreden of terugbetaald
- 3 jaar garantie
- Ref : 92704
Op dit moment niet beschikbaar
neem contact op met ons
Voorraad in de winkel
Niet verkrijgbaar in de winkel
INFORMEER MIJ OVER HAAR BINNENKOMST OP VOORRAAD
Ik wil per e-mail op de hoogte worden gehouden
Go
Andere versie(s) of bijbehorende product(en)
Het merk Sound devices
Leer meer over het merk Sound devices en ontdek de volledige catalogus.
Het grootste netwerk van winkels in Frankrijk
Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.
Neem contact op met een deskundige
Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.
Mobiele opnemer

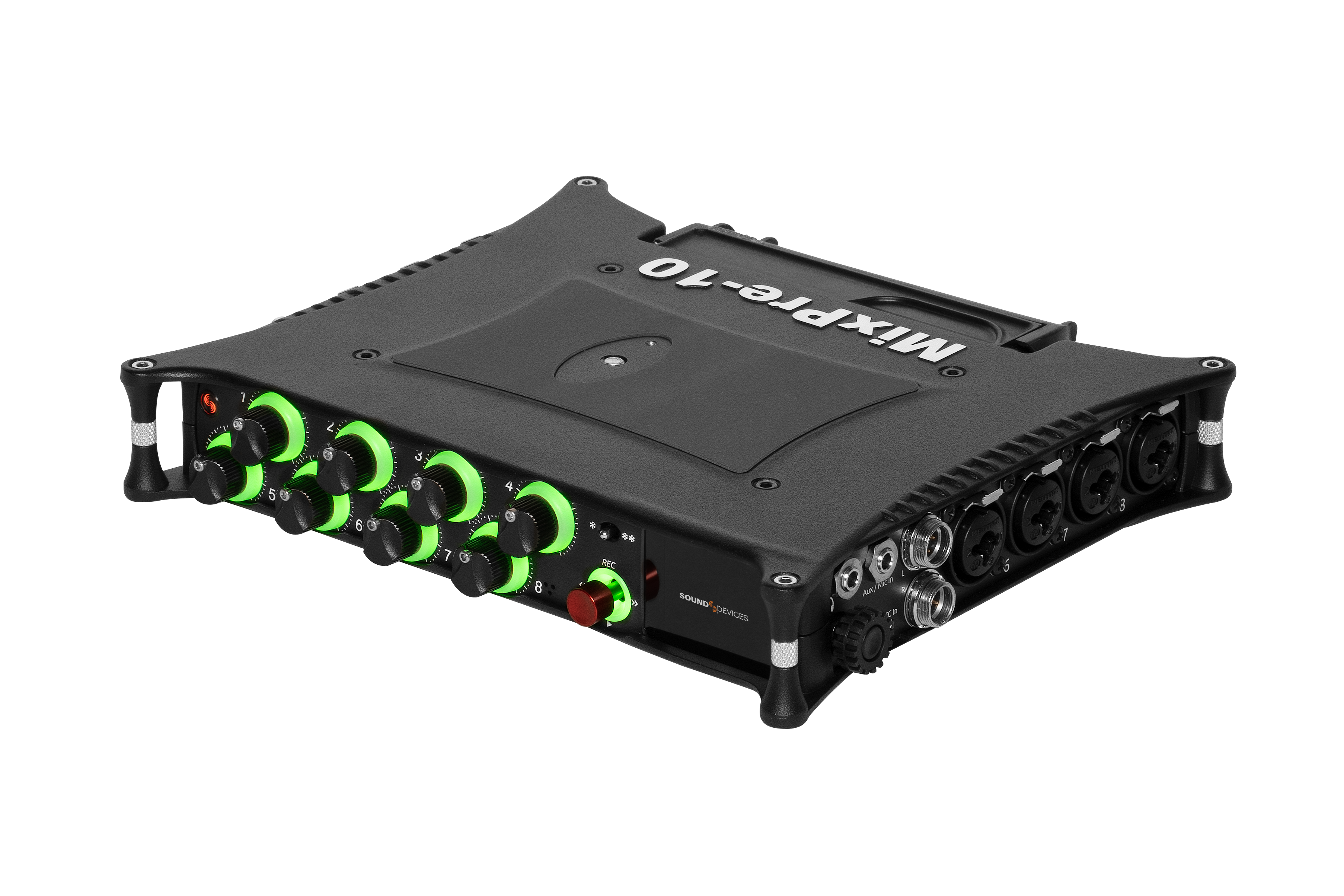

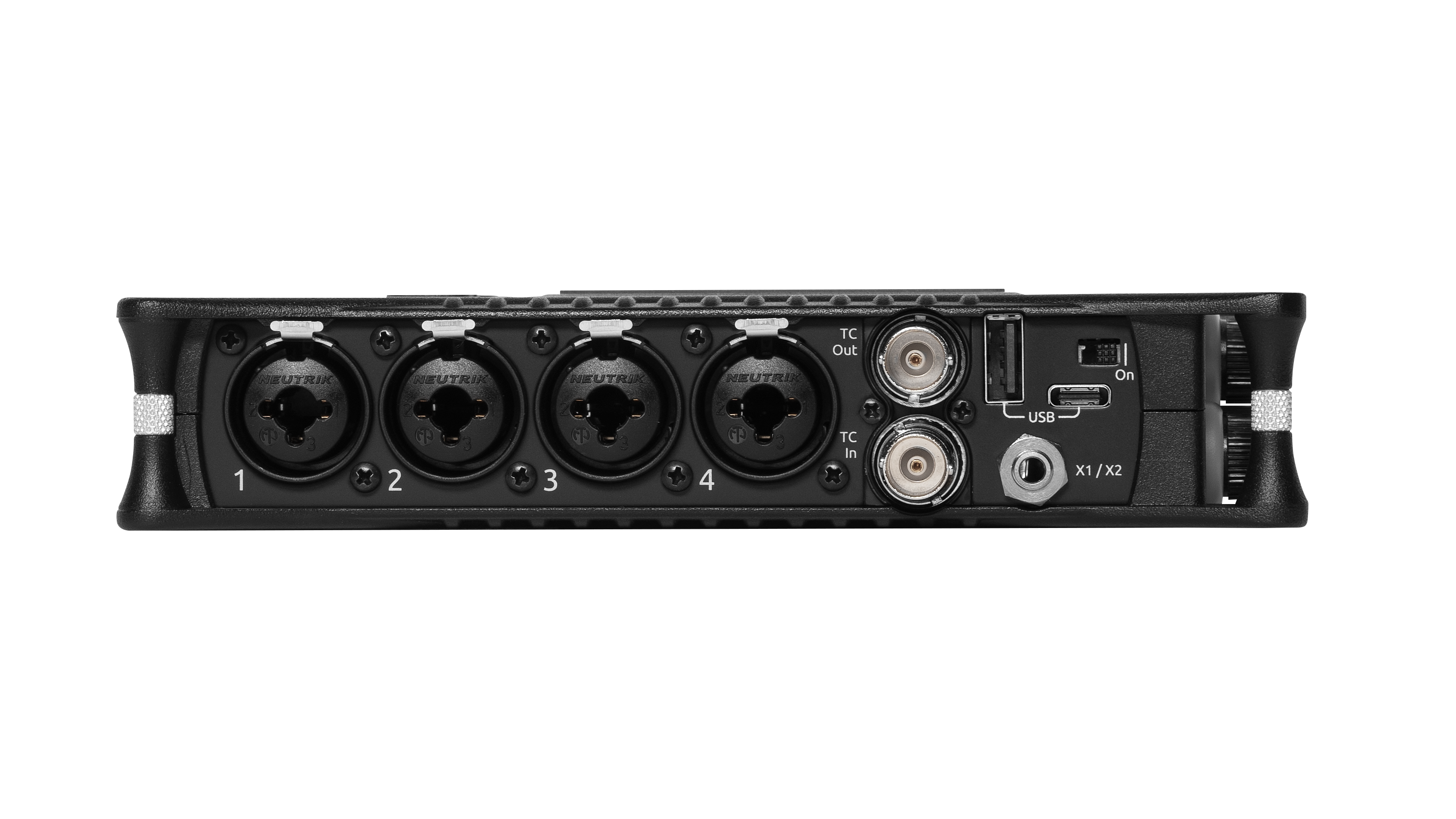

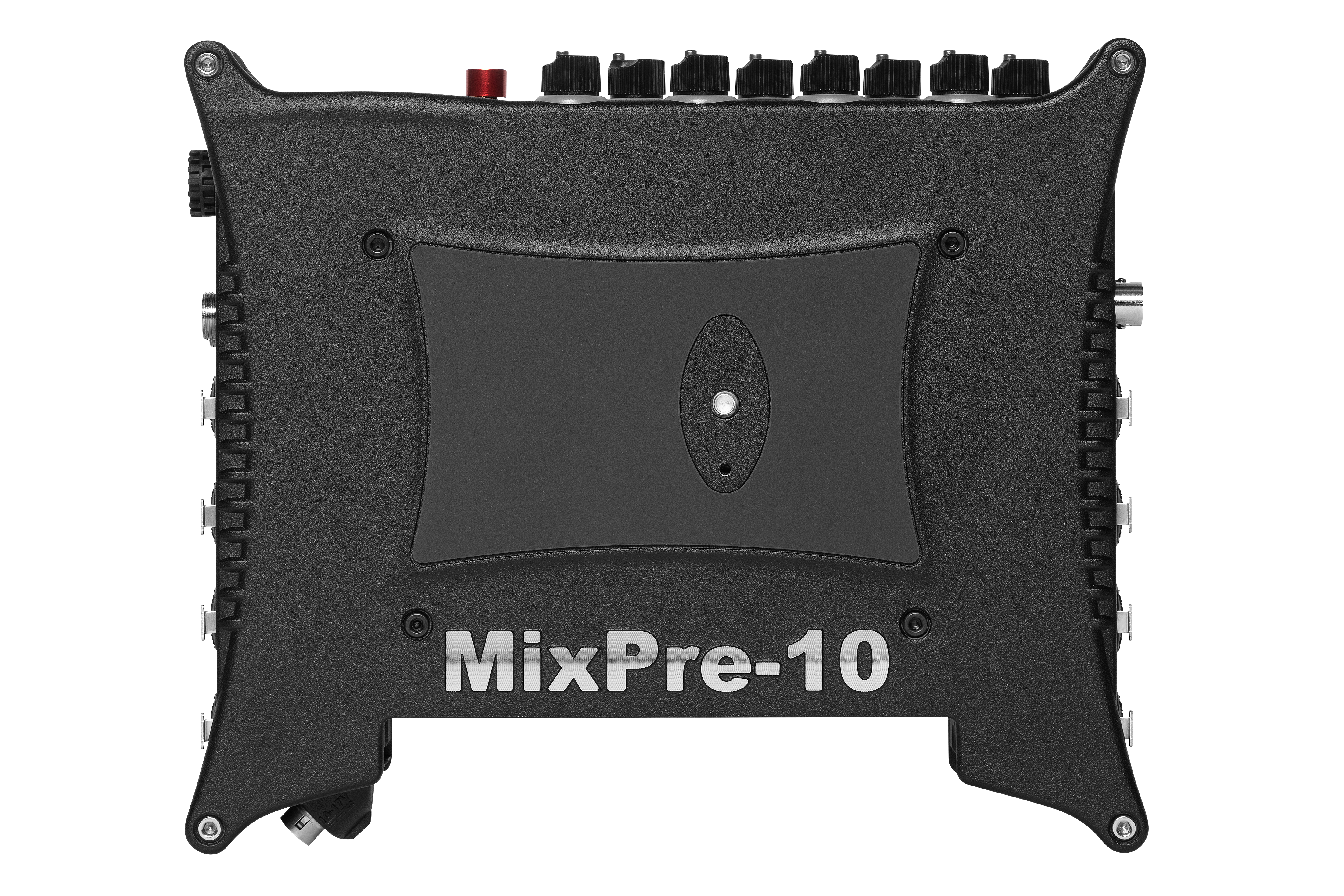

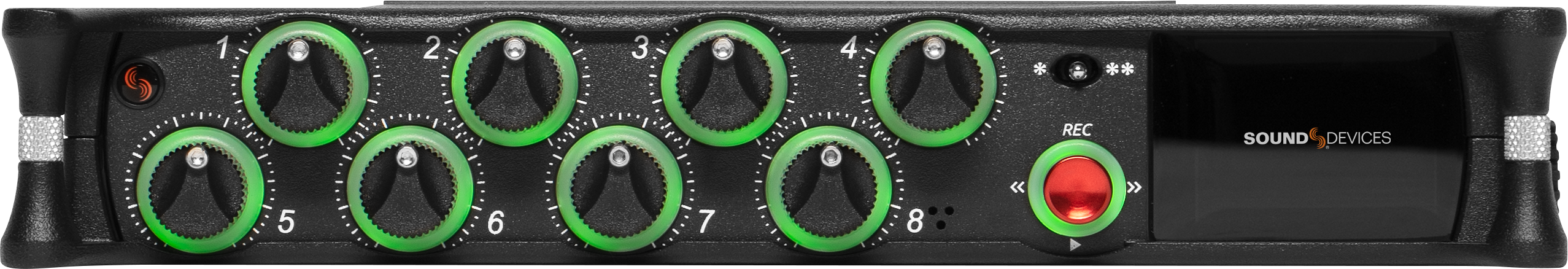

The Sound Devices Mixpre-10-II is a portable audio recorder with USB interface.
Eight ultra-low-noise Kashmir microphone preamps with adjustable limiters capture high quality audio in the field, on set, or with a computer.
Create a mix using the built-in 10 x 4 portable mixer.
Record up to 12 tracks to an SD card and backup to a USB thumb drive.
12-in, 4-out USB audio interface streams to your computer via USB-C.
Choose bit depths from 16 to 32-bit float, and sampling rates from 44.1 kHz to 192 kHz.
Internal LTC timecode generator. Timecode In/Out via BNC or Aux In/Stereo Out.
Timecode and record triggering via HDMI.
USB-A for control surfaces, keyboards, and auto-copy to USB drive.
In-unit ISO mixing, gain, pan, low-cut, phase inversion, and phantom power.
Sunlight-readable color touch screen and LED metering.
Lightweight, durable, and small: perfect for bag use, mobile recording, or a home studio.
Powerful 300 mW+300 mW headphone amp allows clear and accurate reference of audio.
Includes a MX-8AA Battery Sled (batteries not included), XL-WPH3 AC Power Supply, and USB-C to USB-C cable.
Customize with plugins from the Plugin Store.
Eight ultra-low-noise Kashmir microphone preamps with adjustable limiters capture high quality audio in the field, on set, or with a computer.
Create a mix using the built-in 10 x 4 portable mixer.
Record up to 12 tracks to an SD card and backup to a USB thumb drive.
12-in, 4-out USB audio interface streams to your computer via USB-C.
Choose bit depths from 16 to 32-bit float, and sampling rates from 44.1 kHz to 192 kHz.
Internal LTC timecode generator. Timecode In/Out via BNC or Aux In/Stereo Out.
Timecode and record triggering via HDMI.
USB-A for control surfaces, keyboards, and auto-copy to USB drive.
In-unit ISO mixing, gain, pan, low-cut, phase inversion, and phantom power.
Sunlight-readable color touch screen and LED metering.
Lightweight, durable, and small: perfect for bag use, mobile recording, or a home studio.
Powerful 300 mW+300 mW headphone amp allows clear and accurate reference of audio.
Includes a MX-8AA Battery Sled (batteries not included), XL-WPH3 AC Power Supply, and USB-C to USB-C cable.
Customize with plugins from the Plugin Store.
Lire la suite
Technisch papier
- Frequency Response
- 10 Hz to 80 kHz +/- 0.5 dB re 1 kHz @ 192 kHz sample rate
- THD + Noise
- 0.005% max (@1 kHz, 22-22 kHz BW, gain= 20 dB, -10 dBu in)
- ADC
- 32 bit precision; 142 dB dynamic range min (A weighted, gain = 10 dB, fader = 0 dB)
- Equivalent Input Noise
- -130 dBV (-128 dBu) max (A-weighting, gain = 76 dB, 150 ohm source impedance)
- Inputs:
- Mic: XLR active-balanced; 4k input
- Line: XLR active-balanced; 4k input
- Aux/Mic in: 3.5 mm TRS, 2-channel unbalanced; 100k input
- Line: ¼-inch TRS active-balanced; 4k input
- USB Audio: 4 channels
- 10 Total analog inputs:8 mic-line inputs, 2 on Aux In
- All inputs fully RF-filtered and overload protected.
- Gain
- Mic input: +6 dB to +76 dB
- Line input: -20 dB to +30 dB
- Fader: -inf to +20 dB
- Headphone: -inf to +20 dB
- Total, Mic-to-recording (max): +96 dB
- Aux In (Mic): Gain = +10 dB to +40 dB
- Aux In (Line): Gain = -10 dB to +20 dB
- Total Aux Gain including Fader (Mic-to-recording): +60 dB.
- Maximum Input Level
- Mic XLR: +14 dBu (limiters on or off)
- Line XLR/¼-inch: +28 dBu (limiters on or off)
- Aux In (Mic): -10 dBu
- Aux In (Line): +10 dBu
- Low Cut Filters
- 40 Hz to 160 Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.
- Microphone Powering
- Mic XLRs: 48 V via 6.8k resistors, 10 mA each
- Mic 3.5 mm: 3 V @ 3k source
- Limiters
- Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release.
- DAC feeding Stereo Out, Headphone Out
- 32 bit precision; 115 dB dynamic range (A-weighted)
- L/R Out
- 3.5 mm TRS stereo unbalanced, 500 ohm output impedance, +7.8 dBu max output level
- Headphones Out
- 3.5 mm TRS stereo unbalanced, 300 mW + 300 mW, for use with any impedance headphones
- Audio Interface (USB-C): 12-in/4-out (from computer); 44.1 kHz/48 kHz/96 kHz; 16/24-bit; Class-compliant USB 2.0 high speed driver
- Mass Storage (USB-C): USB 2.0 high speed
- Keyboard (USB-A): Text entry and control
- Thumbdrive (USB-A): Manual or auto-copy to drive
- Midi Control Surface (USB-A)
- Dimensions: 36 mm x 206 mm x 175 mm (H x W x D); 1.375” x 8.125” x 6.875”
- Weight: 0.91 kg; 32.1 oz. (unpackaged, without batteries)
