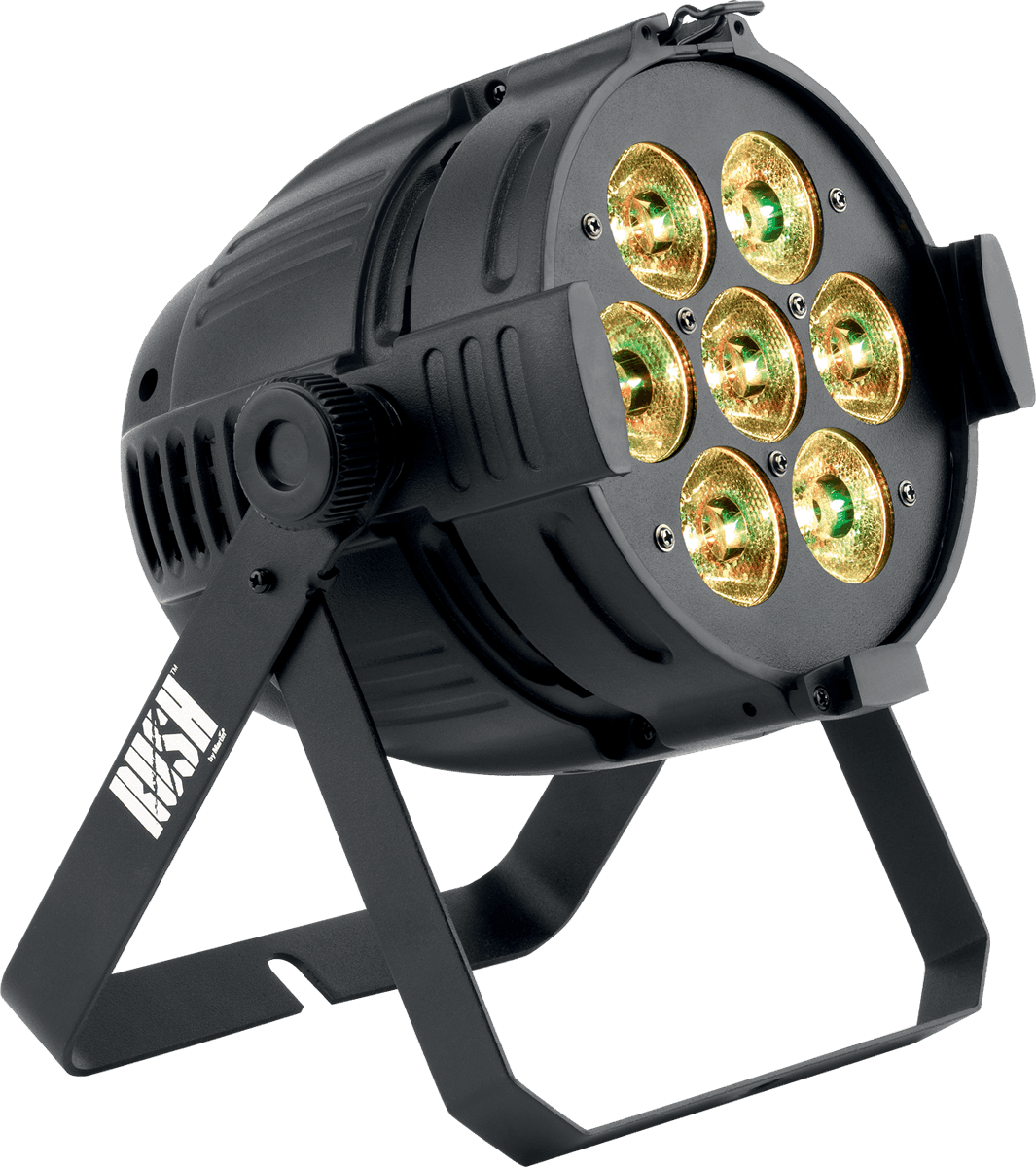

Rush by martin PAR 1 RGBW

Lees recensies (0)
Vergelijkbare producten

Dit artikel is niet meer beschikbaar te koop.

Op dit moment niet beschikbaar

neem contact op met ons

Voorraad in de winkel

Niet verkrijgbaar in de winkel

Het merk Rush by martin

Leer meer over het merk Rush by martin en ontdek de volledige catalogus.

Ontdekken

Het grootste netwerk van winkels in Frankrijk

Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.

meer te weten komen

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

+33 181 930 900 email

Beschrijving

The Par1 LMR is one per Led 56 from Martin BY Harman.

Technisch papier

Physical data
Weight: 3.6 kg
Dimensions: 260 x 195 x 195 x 293 mm
Dynamic effects
Color composition: RGBW
Color selection: 32 pre-programmed colors
Electronic dimmer: 0 - 100%.
Stroboscope and pulsation effects: Adjustable speed and random mode
Electronic shutter: Black and full dry fire
Control and programming
Control options: DMX, standalone mode
DMX channels: 4/5/7
Standalone mode options: Automatic or music mode
Integrated programs: Random, fixed colors or scrolling
Settings, addressing and programming: Control panel with integrated LED display
Music mode: Built-in microphone with adjustable sensitivity
White control: RGB correction
DMX standard: USITT DMX512/1990
Optics and photometry
Sources: 7 LEDs 10 W RGBW CREE MC-E
Opening: 20°.
Minimum service life*: 50,000 h (flow >70% of the original)
*Manufacturer data obtained under manufacturer test conditions
Construction
Color: Black
Protection class: IP20
Installation
Mounting: Adjustable and foldable bracket, under-suspension installation
Orientation: All
Investment: Indoor only
Connections
AC power supply, input and recopy: Neutrik PowerCon
DMX, input and copy: XLR 5-pin locking XLR
Electricity
AC power supply: 100-240 V, 50/60 Hz
Power consumption: 78 W
Fuse: T 6.3 A
Typical current and power
110 V, 60 Hz : 78 W, 1.1 A
230 V, 50 Hz : 78 W, 0.62 A
Measurements made under nominal voltage, all LEDs at full power. Consider a variation of +/-10%.
Thermal data
Maximum ambient temperature (Ta max): 40° C
Minimum ambient temperature (Ta min): 0°C
Total dissipation*: 270 BTU/h
*Calculated, +/-10% at full intensity, in white
Approvals
EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
CEM EU: IN 55015, IN 55103-1, IN 55103-1, IN 55103-2, IN 61000-3-2, IN 61000-3-3-3, IN 61547
Supplied accessories
Power cable, 1.5 m, without mains plug
Accessories Accessories
16 A power supply cables for cascade power supply
Power cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 3 m (98 ft) with PowerCon P/N connector 11541508
Power supply cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 1.4 m (46 ft) with PowerCon P/N 11541509 connectors
Power supply cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 2.25 m (74 ft) with PowerCon P/N connector 11541510
Power supply cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 3.25 m (107 ft) with PowerCon P/N connector 11541511
Power supply connectors
Neutrik PowerCon NAC3FCA Neutrik PowerCon connector for cable mounting, power supply, blue P/N 05342804
Neutrik PowerCon NAC3FCB Neutrik PowerCon connector cable mount, power output, grey P/N 05342805
Related accessories
RUSH Software Uploader 1™ P/N 91611399
Order codes
RUSH BY 1 RGBW™ delivered in cardboard P/N 9048000
