System 500 componenten

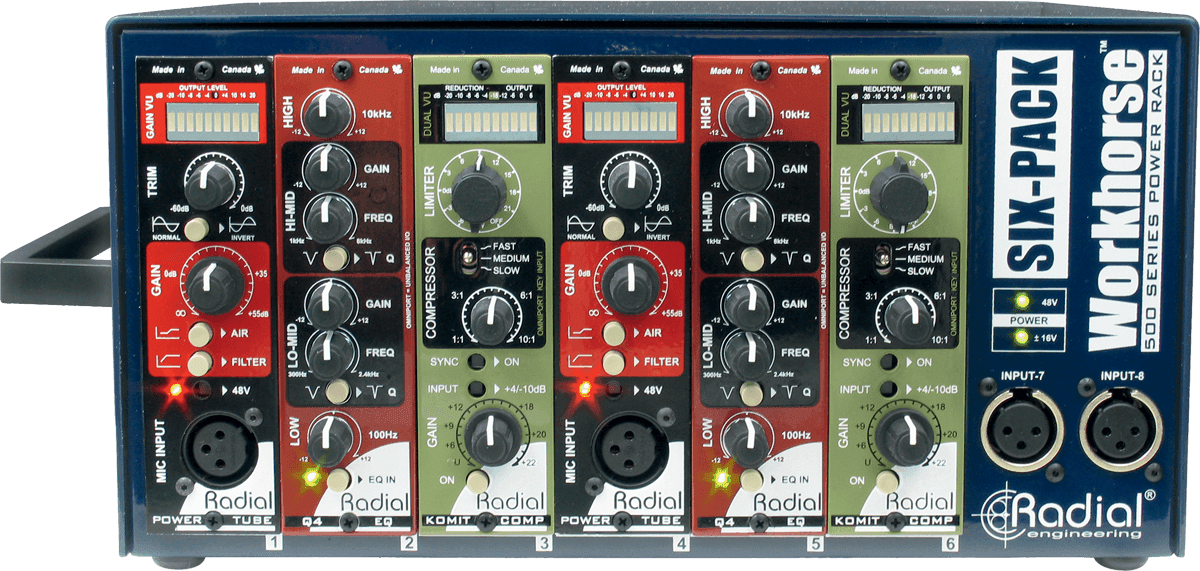

The Radial Six pack is a modular lunchbox rack in 500 format.
It accommodates up to six modules to create a dual stereo processor or single signal chain.

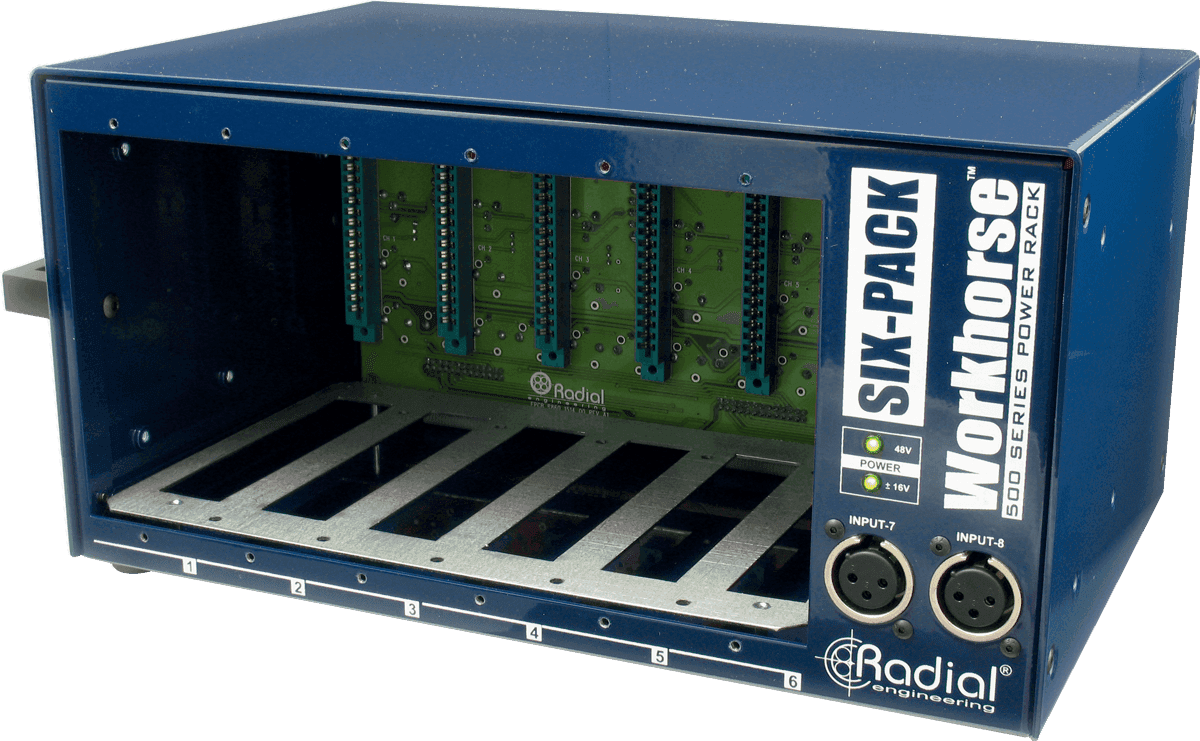

To reduce induced noise, the power supply is external and is connected via a 5-pin XLR plug. To ensure optimum contact, each module connector board has a double-sided 15-pin EDAC connector that is 100% compatible with the classic API pinout format. An additional safety feature is built in so that a malfunction of one module does not affect the other modules already connected. And with 1.6 amps of shared current, the SixPack outperforms all others in its class with an average of more than 265 milliamps per slot. The SixPack accommodates even the most power-hungry tube modules.

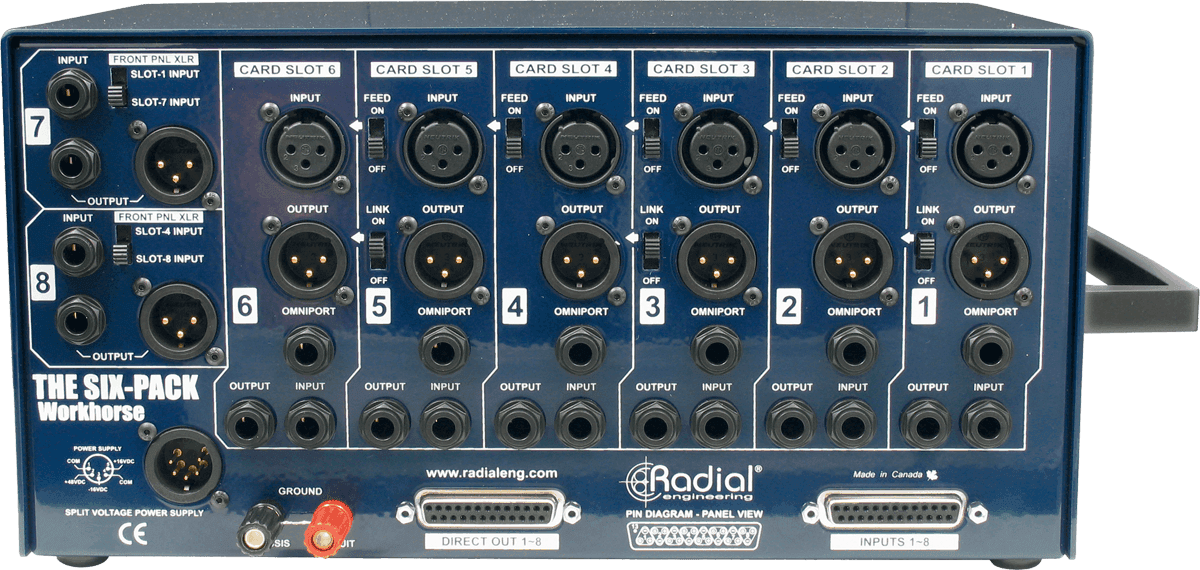

A set of D-Sub 25 connectors allows the SixPack to be easily integrated into a digital audio workstation. Two XLR connectors are mounted on the front and allow additional channels to be routed to the D-Sub inputs or inputs 1 and 4 as a more cost-effective microphone patch.
It accommodates up to six modules to create a dual stereo processor or single signal chain.
To reduce induced noise, the power supply is external and is connected via a 5-pin XLR plug. To ensure optimum contact, each module connector board has a double-sided 15-pin EDAC connector that is 100% compatible with the classic API pinout format. An additional safety feature is built in so that a malfunction of one module does not affect the other modules already connected. And with 1.6 amps of shared current, the SixPack outperforms all others in its class with an average of more than 265 milliamps per slot. The SixPack accommodates even the most power-hungry tube modules.
A set of D-Sub 25 connectors allows the SixPack to be easily integrated into a digital audio workstation. Two XLR connectors are mounted on the front and allow additional channels to be routed to the D-Sub inputs or inputs 1 and 4 as a more cost-effective microphone patch.
Lire la suite
Technische Specificities
- Lunchbox format 6 slots
- Input connectors 8 balanced male XLR, 8 TRS jacks, 25-pin D-sub - 2 of which are on the front panel
- Output connectors 8 XLR balanced female XLR, 8 TRS jacks, 25-pin D-sub - 2 of which are on the front panel
- Compatibility Whos-Doc and VPR Alliance
- Omniport: Yes
- Feed switch Yes
- Stereo link Yes
- Power supply 48V Yes
- Available current 1.6 A
- Available current per module 266 mA
- Ground connection Via chassis
- XLR To AES standard: pin-1 ground, pin-2 (+), pin-3 (-)
- D-Sub In Tascam format
- External Power Supply
