Multi tracks opnemer

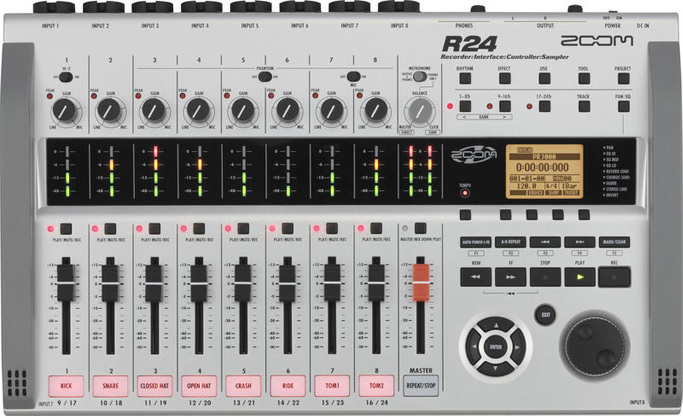

The Zoom R24 is capable of recording eight tracks at the same time. It's quite capable of doing so and it can even play up to 24 tracks simultaneously, but it's much more than a simple recorder.

It's packed with many other functions! For example, you can easily manage thesoftware by means of the MIDI function. Select tracks and play them in real-time.

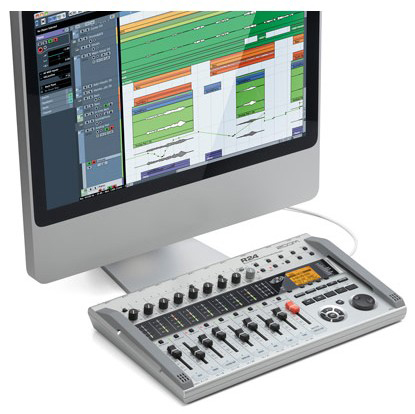

The Zoom R24 can be used as a sound card with eight inputs and two outputs.
It contains a built-in sampler which allows you to record loops and play them in real-time. The integrated drum computer completes the picture with no less than ten drum kits playable by mean of the drum pads.

Technisch papier

Recorder
Track count: 24 (mono)
Maximum number of simultaneous recording tracks: 8
Maximum number of simultaneous playback tracks: 24 audio + metronome
Recording data format: 16 / 24-bit, 44.1 / 48 kHz WAV format
Maximum recording time: 200 minutes/1 GB (44.1 kHz 16-bit, mono tracks)
Projects: 1000
Markers: 100/project
Locator: Hours/minutes/seconds/milliseconds and bars/beats/ticks
File editing: Divide, trim
Other functions:
Punch-in/out (manual, auto), Bounce, A-B repeat, Undo/Redo
Mixer
Faders: 9 (mono x 8, master x 1)
Level meter display: 4-segment LED
Track parameters: 3-band equalizer, pan (balance), effect send x 2, invert
Stereo link: Tracks 1 / 2 - 23 / 24 selectable in pairs
Effects
Algorithms: 9 (CLEAN, DISTORTION, ACO/BASS, BASS, MIC, DUAL MIC, STEREO, 8xCOMP, EQ, MASTERING)
Patches: 330 insert, 60 send-return
Effect modules: 7 insert, 2 send-return
Tuner
Type: Chromatic, guitar, bass, open A/D/E/G, D modal
Rhythm
Voices: 8
Sound format: 16-bit linear PCM
Drum kits: 10
Pads: 8 (velocity-sensitive)
Precision: 48 PPQN
Rhythm patterns: 511/project
Tempo: 40.0 - 250.0 BPM
Sampler
Playback formats: 16 / 24-bit, 44.1 / 48 kHz WAV
Editing functions: Trim, Time-stretch
Hardware
Recording media: SD card (16MB - 2 GB), SDHC card (4 - 32 GB)
Analog-digital conversion: 96 kHz 24-bit delta-sigma ADC
Digital-analog conversion: 96 kHz 24-bit delta-sigma DAC
Display: 128 x 64 pixel LCD (with backlight)

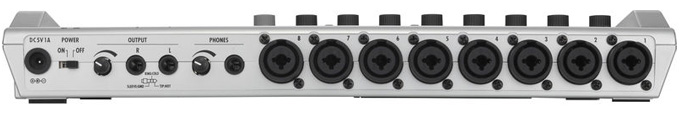

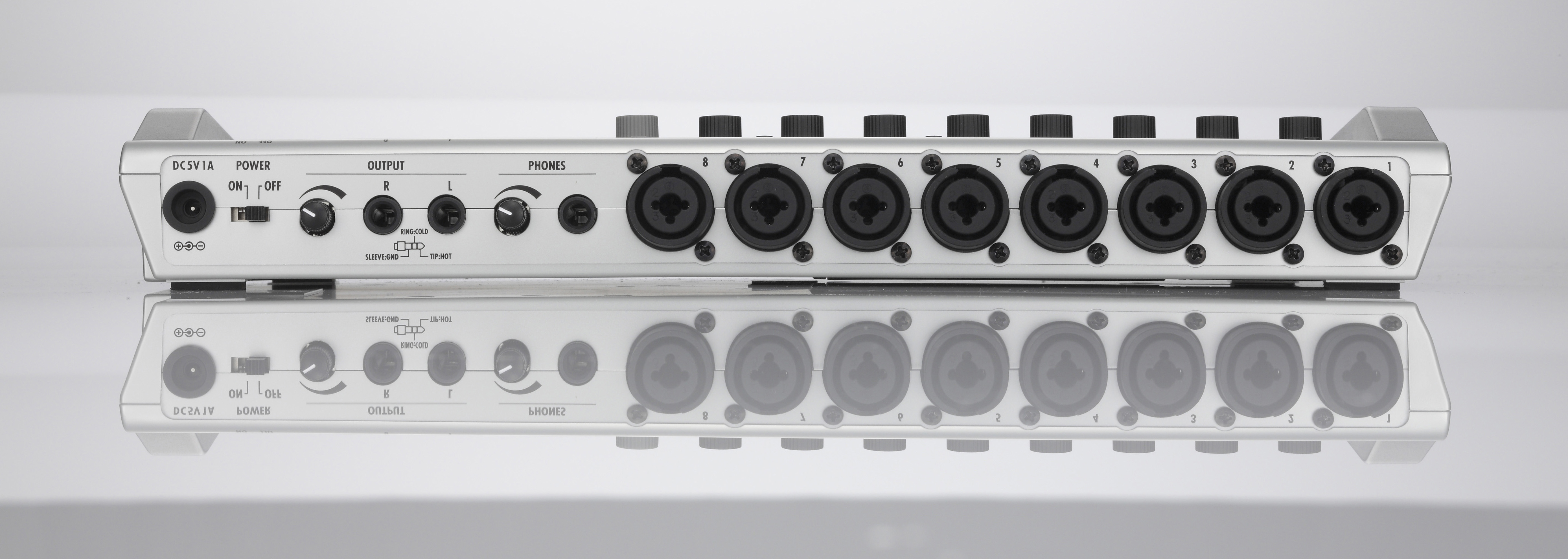

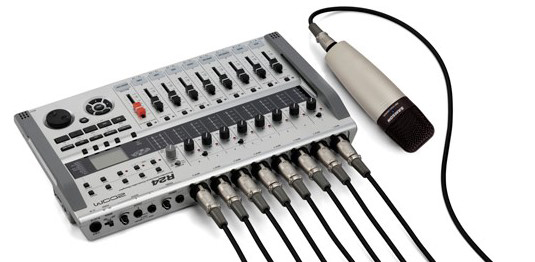

Inputs: Input 1-8
Type: 8 XLR/TRS combo jacks
Input impedance: (Balanced input) 1KΩ balanced (2 hot), (Unbalanced input) 50 KΩ unbalanced (1 with Hi-Z input impedance 1 MΩ (Hi-Z on), 6 with phantom power)
Phantom Power: 48V, 24V
Input level: -50 dBm < continuous < +4 dBm
Built-in stereo microphones
Type: Omnidirectional condenser microphones
Gain: -50 dBm < continuous < +4 dBm
Outputs:
Output
Type: TRS phone (balanced)
Phones
Standard stereo phone jack 20 mW x 2 (32 Ω load)

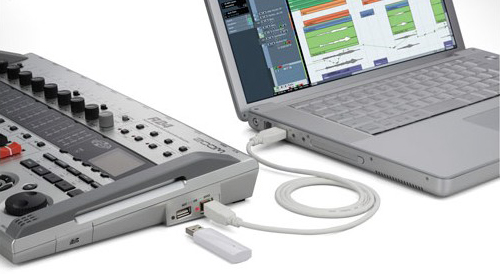

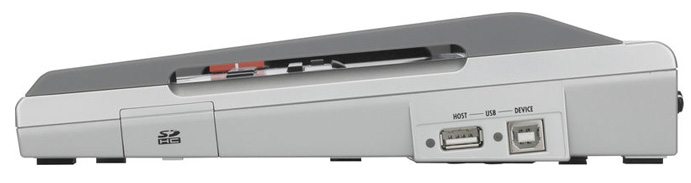

USB
Mini-B type (USB 2.0): USB 2.0 Hi-Speed (operation as audio interface/control surface/ card reader/USB storage)
Mini-A type (USB 2.0): USB 2.0 Hi-Speed (operation as USB host capability)
USB Audio Interface
Number of recording channels: 8
Number of playback channels: 2
Bit rate: 24
Sampling frequency: 44.1, 48, 88.2, 96 kHz
Compatibility:
Windows® XP SP3 or later (32-bit)
Windows® Vista SP1 or later (32-bit, 64-bit)
Windows® 7 (32-bit, 64-bit)
Windows® 8 (32-bit, 64-bit)
Windows® 8.1 (32-bit, 64-bit)
Windows® 10 (32-bit, 64-bit)
32-bit: Intel® Pentium® 4 1.8 GHz or faster, RAM 1 GB or more
64-bit: Intel® Pentium® Dual Core 2.7 GHz or faster, RAM 2 GB or more
Mac OS X 10.9 / 10.10 / 10.11
with Intel® Core Duo 1.83 GHz or faster and RAM 1 GB or more
USB 2.0 compatible port, Intel chipsets recommended
Power
AC adapter: DC 5V 1A (Zoom AD-14)
Batteries: 6 AA batteries (4.5-hour continuous operation time with backlight set to 15 seconds and phantom power off)
Other
Dimensions: 376 mm (W) x 237.1 mm (D) x 52.2 mm (H)
Weight: 1.3 kg
