Digitale mengtafel

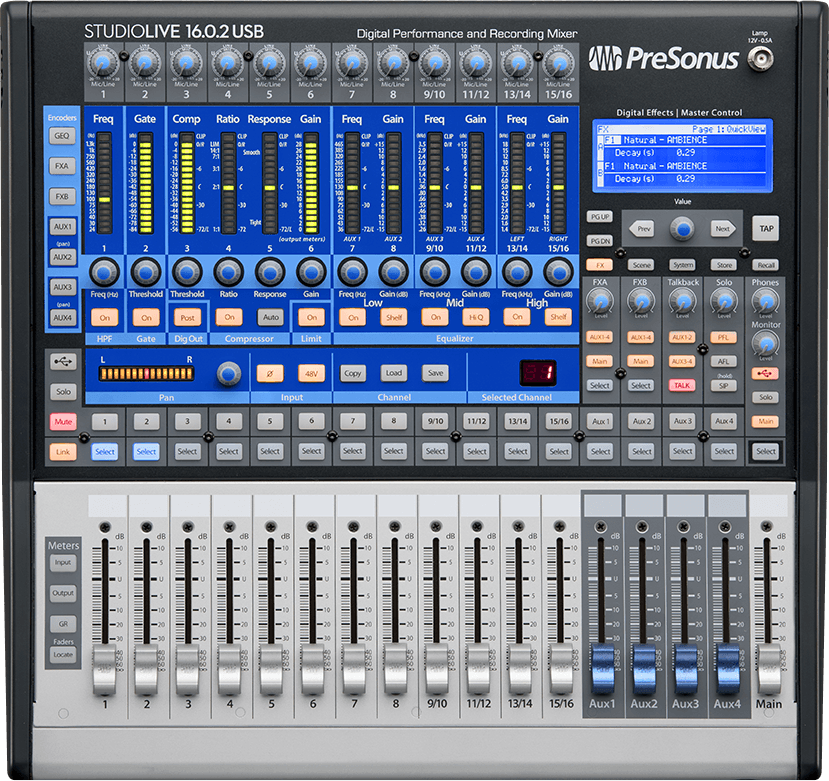

The Presonus StudioLive 16.0.2 USB is a compact 16-channel digital mixer, offering 8 mono input channels, 4 stereo channels, and 4 aux buses, each with a high-quality, 60 mm fader.

It is equipped with 12 XMAX Class A solid-state mic preamps, a Talkback input with Class A mic preamp, extensive signal processing with physical controls, MIDI control, accurate metering, and a built-in multichannel recording interface.

As with all StudioLive mixers, the 16.0.2 USB comes with a suite of tightly integrated recording, control, and audio analysis software. And it’s so lightweight and compact that you can easily hold it in one hand and tuck it under your arm.

Technisch papier

Aantal kanalen mengtafel 10 tot 22 kanalen

Microphone Preamp
Type: XLR Female, Balanced
Frequency Response to Direct Output (at unity gain): 20 Hz-20 kHz, 0 / -0.5 dBu
Frequency Response to Main Output (at unity gain): 20 Hz-20 kHz, ±0.5 dBu
Input Impedance (Balanced): 1 kΩ
THD to Direct Output (1 kHz at unity gain): <0.005%, +4 dBu, 20 Hz–20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain): 0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
EIN to Direct Output: +125 dB unwtd, +130 dB A-wtd
S/N Ratio to Direct Output: (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -102 dB
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -95 dB
Common Mode Rejection Ratio (1 kHz at unity gain): +65 dB
Gain Control Range (± 1 dB): -16 dB to +67 dB
Maximum Input Level (unity gain): +16 dBu
Phantom Power (± 2 VDC): +48 VDC

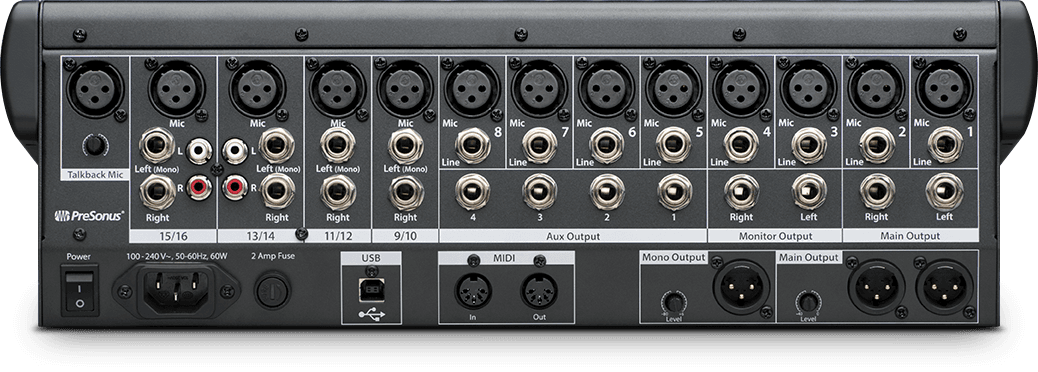

Line Inputs, Balanced
Type: ¼" TRS Female, balanced mono
Frequency Response to Direct Outputs (at unity gain): 10 Hz-20 kHz, 0 / -0.5 dBu
Frequency Response to Main Outputs (at unity gain): 20 Hz-20 kHz, 0/-0.5 dBu
Input Impedance: 10 kΩ
THD to Direct Output (1 kHz at unity gain): <0.0007%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain): <0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
S/N Ratio to Direct Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd): -105 dB
S/N Ratio to Main Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd): -95 dB
Gain Control Range (± 1 dB): -20 dB to +20 dB
Maximum Input level (unity gain): +22 dBu
Line Inputs, Unbalanced
Type: RCA Female, unbalanced (stereo pair)
Maximum Input Level: +22 dBu
Main Outputs
Type: XLR Male, balanced (stereo pair); ¼” TRS Female, balanced (stereo pair)
Rated Output Level: +24 dBu
Output Impedance: 100Ω
Aux Outputs
Type: ¼” TRS Female, balanced (mono)
Rated Output Level: +18 dBu
Output Impedance: 100Ω
Monitor Outputs
Type: ¼” TRS Female, balanced (stereo pair)
Rated Output Level z: +18 dBu
Output Impedance: 100Ω
System Crosstalk
Input to Output (Ref = +4 dBu, 20 Hz-20 kHz, unwtd): -90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz-20 kHz, unwtd): -87 dBu
Noise Gate (Expander)
Threshold Range: -84 dB to 0 dB
Attack Time: Adaptive (0.2 - 2.5 ms)
Release Time: 70 ms
Expander Attenuation Range: 2:1
Compressor
Threshold Range: -56 dB to 0 dB
Ratio: 1:1 to 14:1
Response Time (Attack/Release: 0.2 ms / 1.0s (“Tight”) to 180 ms / 1.0s (“Smooth”)
Auto Attack and Release Attack = 10 ms, Release = 150 ms
Curve Types: hard and soft knee
EQ
Type: 2nd-order shelving filter (Q = 0.55)
Low (Low-pass or Bandpass): 36 to 465 Hz, ±15 dB
Mid: 260 Hz to 3.5 kHz, ±15 dB
High (High-pass or Bandpass): 1.4 kHz to 18 kHz, ±15 dB
Digital Audio
Host Interface: USB 2.0
ADC Dynamic Range (A-wtd, 48 kHz): 118 dB
DAC Dynamic Range (A-wtd, 48 kHz): 118 dB
Internal Processing: 32-bit, floating point
Sampling Rate: 44.1, 48 kHz
A/D/A Bit Depth: 24 bits
Reference Level for 0 dBFS: +18 dBu
Clock
Jitter: <20 ps rms (20 Hz - 20 kHz)
Jitter Attenuation: >60 dB (1 ns in ? 1 ps out)
Power
Connector: IEC
Input-Voltage Range: 100 to 240 VAC (factory-configured for country of destination)
Power Requirements: (continuous) 100W
Physical
Length: 15.56 inches (397 mm)
Width: 16 inches (406 mm)
Maximum Height: 5.5 inches (140 mm)
Weight: 20 lbs.
