Palmer PAN08

  • Lees recensies (0)
  • Gerelateerde accessoires
  • Vergelijkbare producten

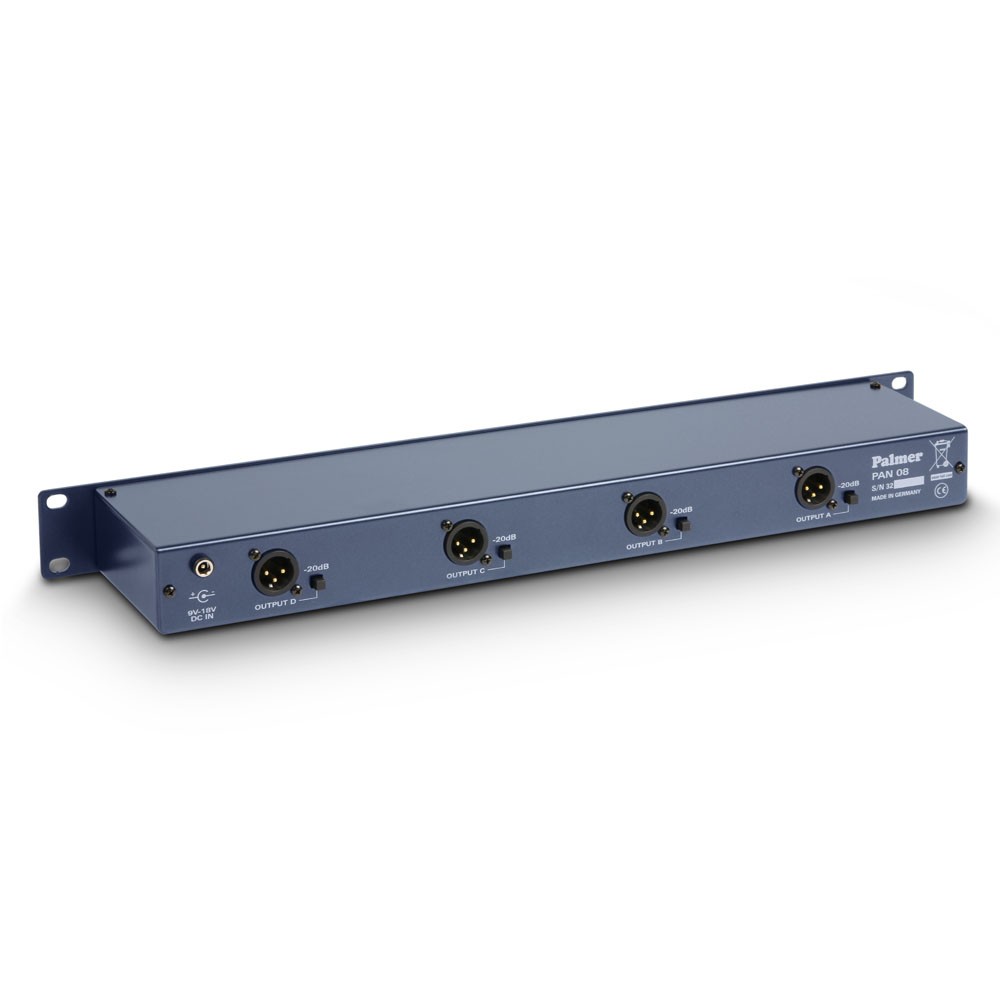

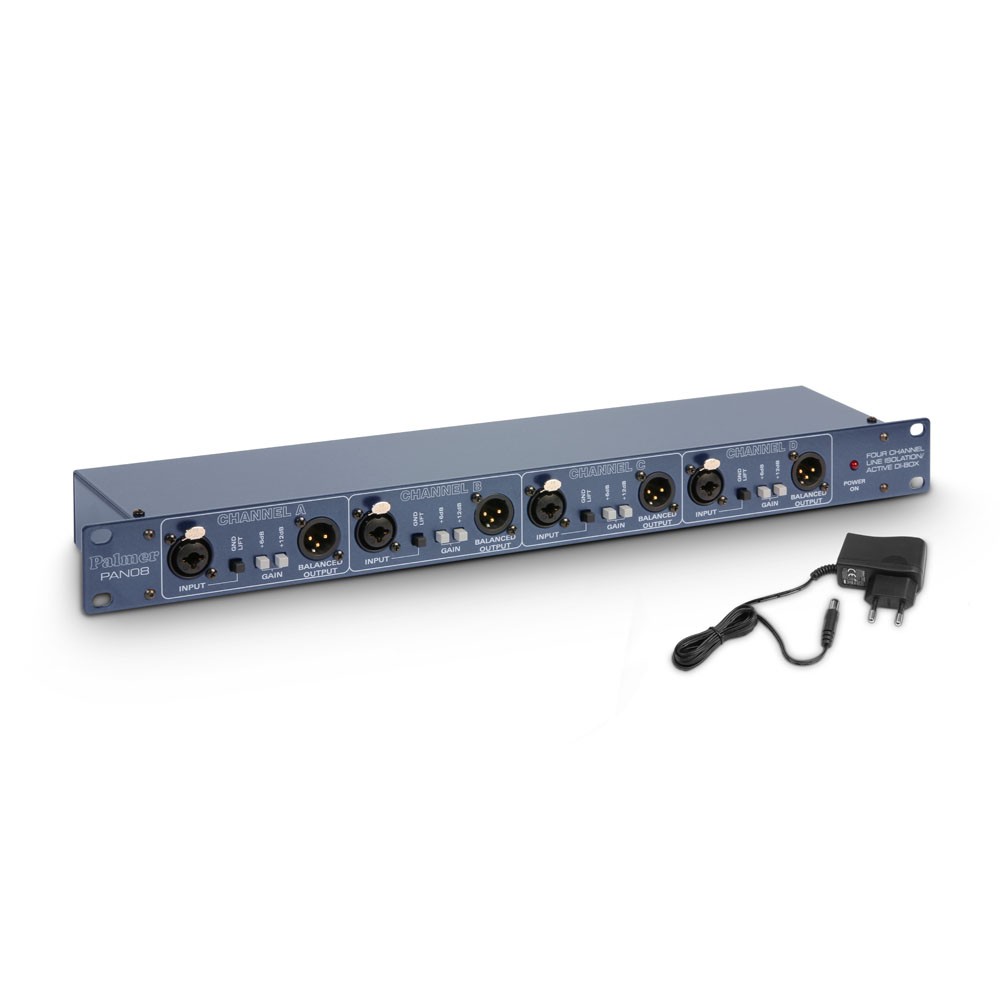

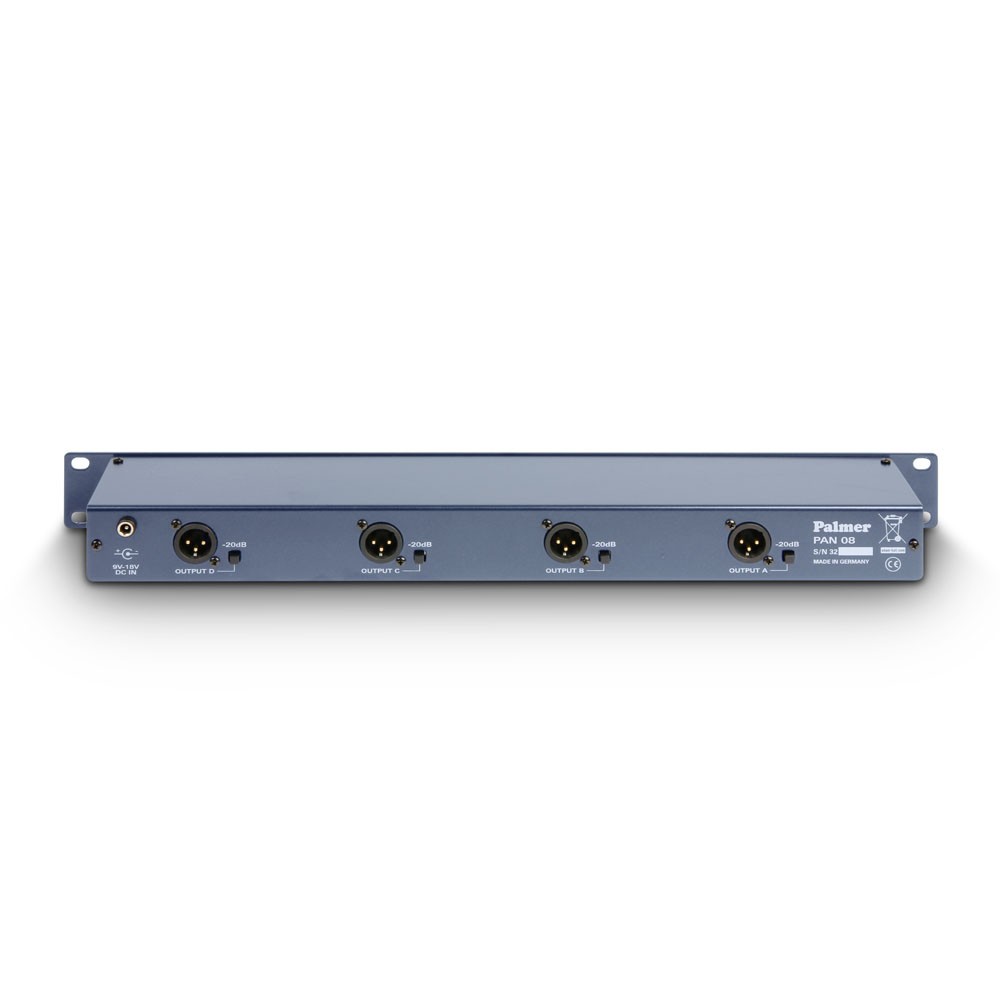

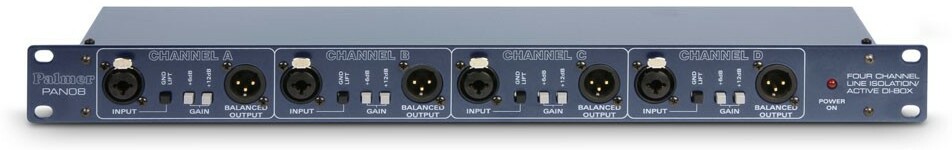

  • Palmer Pan08 - DI Box - Main picture
  • Palmer Pan08 - DI Box - Variation 1
  • Palmer Pan08 - DI Box - Variation 2
  • Palmer Pan08 - DI Box - Variation 3
  • Palmer Pan08 - DI Box - Variation 4
439.00 €
381,00 €
  • Gratis bezorging
  • Gegarandeerd lage prijzen
  • Tevreden of terugbetaald
  • 3 jaar garantie
  • Ref : 78762
In voorraad
Binnen 8-10 dagen verzonden
Voorraad in de winkel
Niet verkrijgbaar in de winkel
Andere versie(s) of bijbehorende product(en)

Het merk Palmer

Leer meer over het merk Palmer en ontdek de volledige catalogus.

Het grootste netwerk van winkels in Frankrijk

Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

Di box

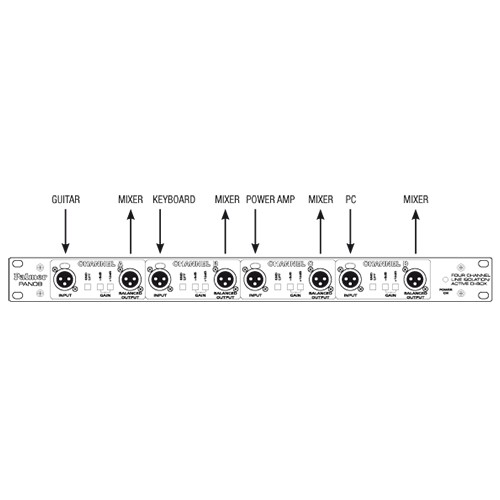

The PAN08 is a multifunctional device. Each of the four channels can be used independently as an active DI box, line isolation box or booster. The combination socket input accepts unbalanced and balanced signals. The output has dual transformer balanced XLR jacks (front and rear).

The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600 Ohms with 0.05 % THD / 40 Hz and an output noise level of less than -110 dBu, the unit meets even high professional standards. One special feature that is worthy of mention is battery power. The supply voltage may range from 9 to 18 V. Thus the PAN08 can also be used without mains power outdoors.
Lire la suite

Technisch papier

  • Type: active
  • Channels: 4
  • Inputs: 4
  • Input: connectors 6.3 mm jack , XLR
  • Max. input level: +12 dBu
  • Input impedance: Balanced: 20k Ohm(s)
  • Outputs: 8
  • THRU outputs/channel: 0
  • Output connectors: XLR
  • Max. output level: +12 dBu
  • Output impedance: 600 Ohm(s)
  • Frequency response: 20 - 20000 Hz
  • Transformer balanced: yes
  • Ratio: Variabel
  • Indicators: Power
  • Controls: 2 x gain , attenuator , ground lift
  • Operating voltage: 9 V DC power supply
  • Cabinet material: sheet steel
  • Cabinet surface: powder coated
  • Width: 480 mm
  • Width: 19 "
  • Depth: 90 mm
  • Height: 45 mm
  • Height: 1 U
  • Weight: 1,59 kg
Meer specificaties
Minder specificaties

gebruikersmeningen
