Moog Subsequent 37 CV

Name: Subsequent 37 CV
Brand: Moog
SKU: 75816
Availability: SoldOut
Rating: 4.6 (6 reviews)

Lees recensies (6)
Gerelateerde accessoires
Vergelijkbare producten

VIDEO

Dit artikel is niet meer beschikbaar te koop.

Onbeschikbaar

neem contact op met ons

Voorraad in de winkel

Niet verkrijgbaar in de winkel

Andere versie(s) of bijbehorende product(en)

Het merk Moog

Leer meer over het merk Moog en ontdek de volledige catalogus.

Ontdekken

Koopgids voor synthesizers en drummachines

De ultieme koopgids voor het kiezen van je nieuwe synthesizer of je nieuwe drummachine.

Consulteren

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

+33 181 930 900 email

Synthesizer

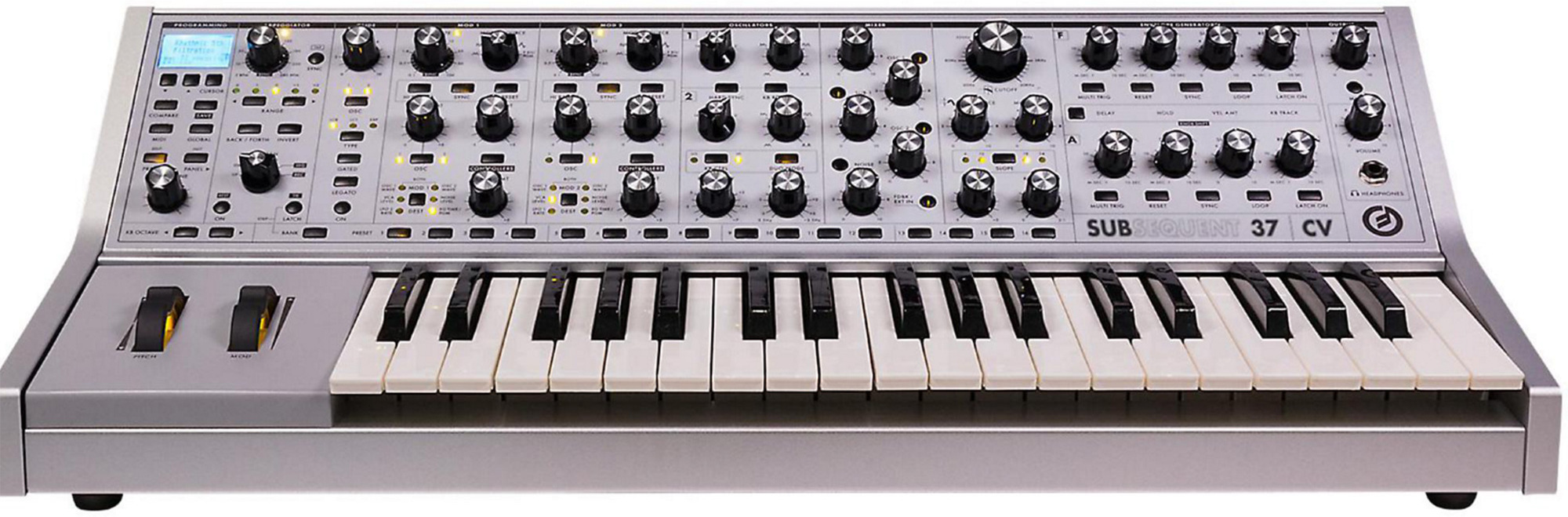

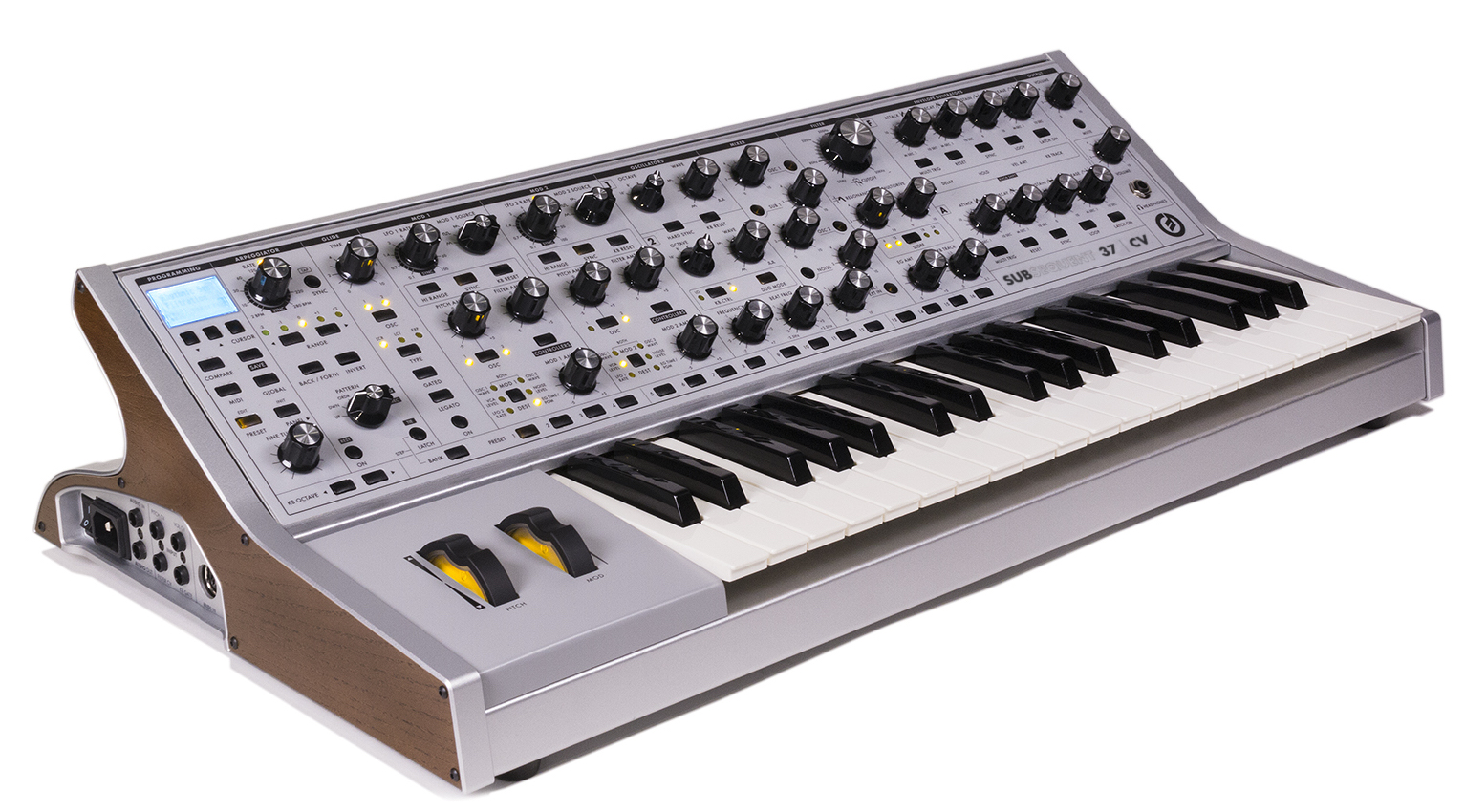

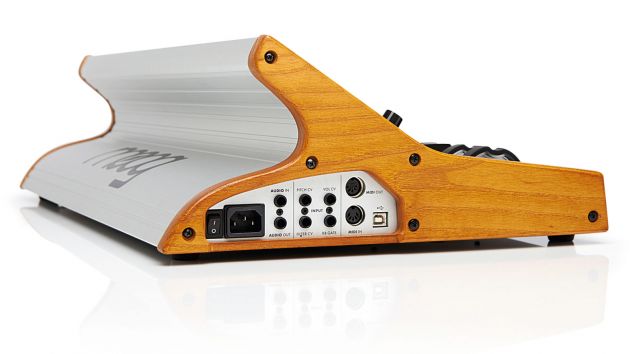

This limited-edition redesign of the ultra-powerful Sub 37 Tribute Edition analog synthesizer is limited to 2000 pieces worldwide, with the first 125 units built live on-site at Moogfest 2017. Anchored by a pair of solid aluminum side pieces inset with North American hardwood and affixed to a rugged steel and aluminum enclosure, it features four assignable CV outputs and two assignable Gate outputs for interconnectivity with large-format and Eurorack modular systems, an upgraded keybed for improved playability, a high-powered headphone amplifier for live-monitoring, and a modified analog signal path.

The Subsequent 37 CV’s mixer now has double the headroom of the Sub 37 Tribute Edition. Taking advantage of the mixer’s newfound flexibility, the gain-staging of the Ladder filter has been reshaped to boost harmonic saturation and analog compression. Completing the sonic evolution is a re-tuned Multidrive circuit that extends well beyond the grit and growl of the original Sub 37.

Technisch papier

Aantal toetsen Minder dan 49 toetsen
Soort synthesizer Analoog
Toetsensoort Lichte toetsen

TYPE: Programmable Paraphonic Analog Synthesizer
SOUND ENGINE: 100% Analog
NUMBER OF KEYS: 37
TYPE OF KEYS: Semi-Weighted with After Pressure
CONTROLLERS: Pitch Bend, Mod Wheel, After Pressure, Velocity
POLYPHONY: Selectable Monophonic or Duophonic
SOUND SOURCES: 2 Variable Waveshape Oscillators, 1 Square Wave Sub Oscillator, 1 Analog Noise Generator, 1 External Input/Filter Feedback
OSCILLATOR CALIBRATION RANGE: 22Hz-6.8kHz. Guaranteed note range at 8’ of Note 18 to 116
MOD SOURCES: Triangle, Square, Saw, Ramp, Sample & Hold, Filter EG/PGM
MOD DESTINATIONS: Osc 1 Pitch, Osc 2, Osc 1 & 2 Pitch, Filter, LFO Rate, VCA Level, Osc 1 Wave, Osc 2 Wave, Osc 1 & 2 Wave, Noise Level, EG Time, and Programmable Destinations
FILTER: 20Hz-20kHz Moog Ladder Filter w/ 6/12/18/24 dB/Oct Filter Slopes and MultiDrive
AUDIO INPUT: 1xTS
AUDIO OUTPUT: 1xTS, 1xTRS Headphone
PRESETS: 256 Presets - 16 Banks, 16 Patches per Bank
MIDI I/O: DIN In, Out, and MIDI over USB
CV/GATE INPUTS: Filter CV, Pitch CV, Volume CV, KB Gate
CV/GATE OUTPUTS: 4x Assignable CV and 2x Assignable Gate
TRANSPOSITION: +/- 2 Octaves
LFO: 0.01Hz - 1000Hz
WEIGHT: 22LBS / 10KG
DIMENSIONS: 6.75” H x 26.375” W x 14.75 D / 17cm H x 68cm W x 37.5cm D
NOMINAL OPERATING TEMPERATURE: 10 - 35 C (50 - 95 F)
OPERATIONAL TEMPERATURE RANGE: 10 - 50 C (50 - 122 F)
INPUT VOLTAGE: 100 VAC - 240 VAC / 50 - 60 HZ / 13W

Meer specificaties

Minder specificaties
