Moog Minimoog Model D 2022

Lees recensies (0)
Gerelateerde accessoires
Vergelijkbare producten

5979,00 €

Gratis bezorging
Gegarandeerd lage prijzen
Tevreden of terugbetaald
3 jaar garantie
Ref : 104653

In voorraad

binnen 24 uur leverbaar

Voorraad in de winkel

Zie beschikbaarheid. winkel

Star's Music Paris

Het merk Moog

Leer meer over het merk Moog en ontdek de volledige catalogus.

Ontdekken

Koopgids voor synthesizers en drummachines

De ultieme koopgids voor het kiezen van je nieuwe synthesizer of je nieuwe drummachine.

Consulteren

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

+33 181 930 900 email

Synthesizer

More than half a century after its invention, the Minimoog Model D is once again in production at the Moog factory in Asheville, North Carolina! An exceptional instrument and one of the most popular and iconic synthesizers ever created, it is back in the hands of synthesizer enthusiasts everywhere and will serve as an inspiration to the next generation of musicians.

Originally released in 1970, Minimoog Model D was the world’s first
portable synthesizer and served as the archetype for all electronic
keyboards that followed. The all-analog instrument gained acclaim for combining the colossal sound of the 1960s Moog modular synthesizers with the accessibility of pre-wired modules—meaning that it could be played instantly and intuitively with no patch cables required. It was quickly embraced by a diverse roster of performers, with artists like Herbie Hancock, Kraftwerk, Rick Wakeman, Sun Ra, Piero Umiliani, Giorgio Moroder, Bernie Worrell, and Gary Numan all shaping unique sounds and forging new musical genres using the instrument.
More than a half-century since its invention, Minimoog Model D is back in production at the Moog factory in Asheville, North Carolina. An exceptional sonic tool and one of the most beloved and iconic synthesizers ever designed, it returns to the hands of synthesists of all kinds and serves as inspiration for the next generation of electronic musicians.

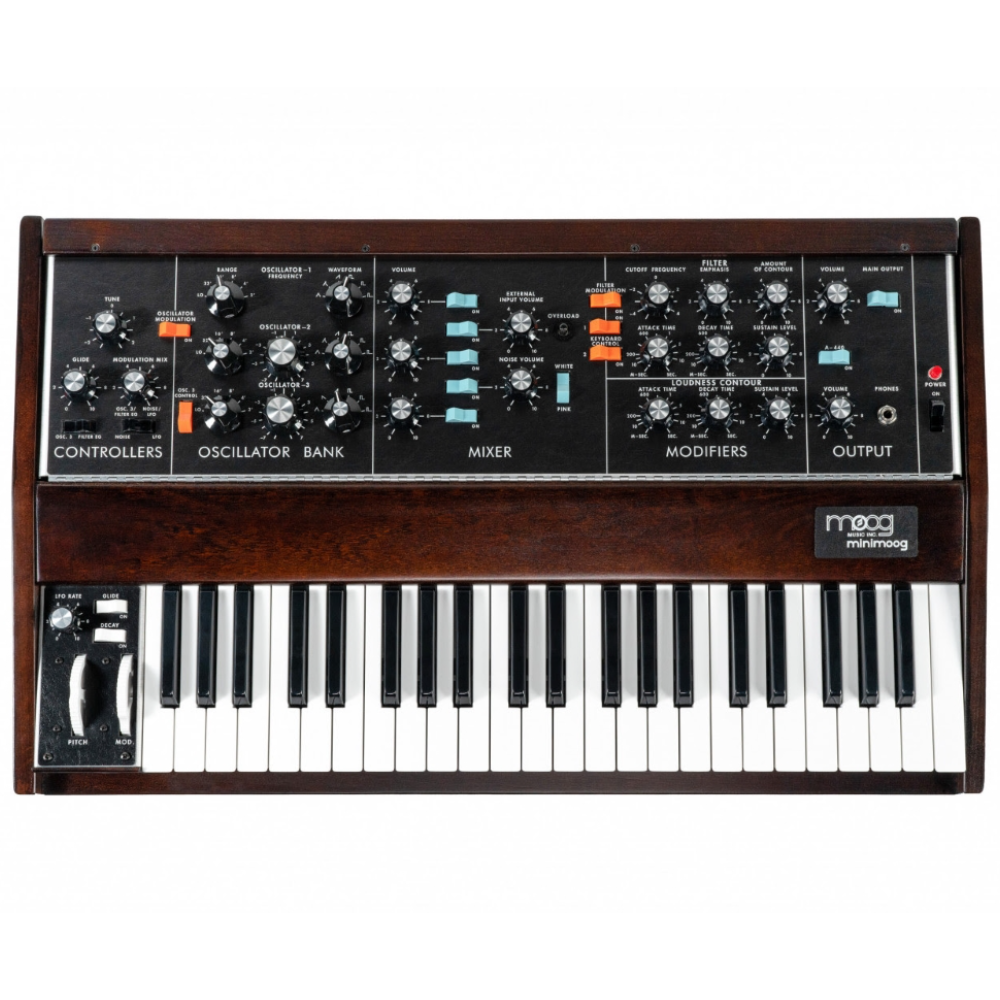

The three-oscillator, monophonic, analog synthesizer is securely

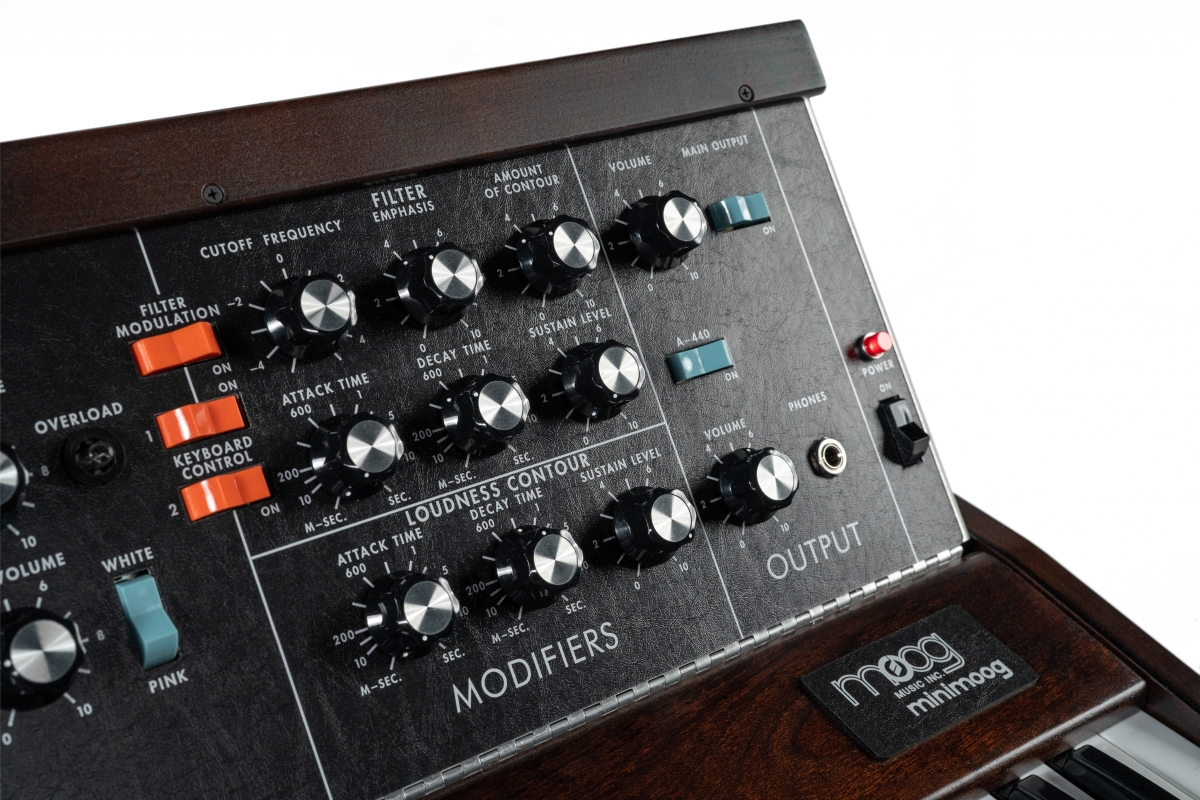

housed in a locally sourced Appalachian cherry cabinet and hand-finished aluminum chassis. Sounding as vibrant and deep as ever, its legendary low-pass ladder filter, powerful oscillators, and rich saturating mixer retain the exact component placement and through-hole design of a 1970s-era Minimoog Model D.
While no changes have been made to the original sound engine or
audio signal path, the 2022 Minimoog Model D includes a series of popular functional modifications that expand this legendary instrument’s sonic capabilities. These modifications include a dedicated analog LFO with triangle and square waveshapes, a premium Fatar keybed with velocity and after pressure available via top panel CV jacks with onboard trimpots, MIDI integration, and a mixer feedback modification which allows the Minimoog Model D to overdrive and scream with the turn of a knob. And, for the first

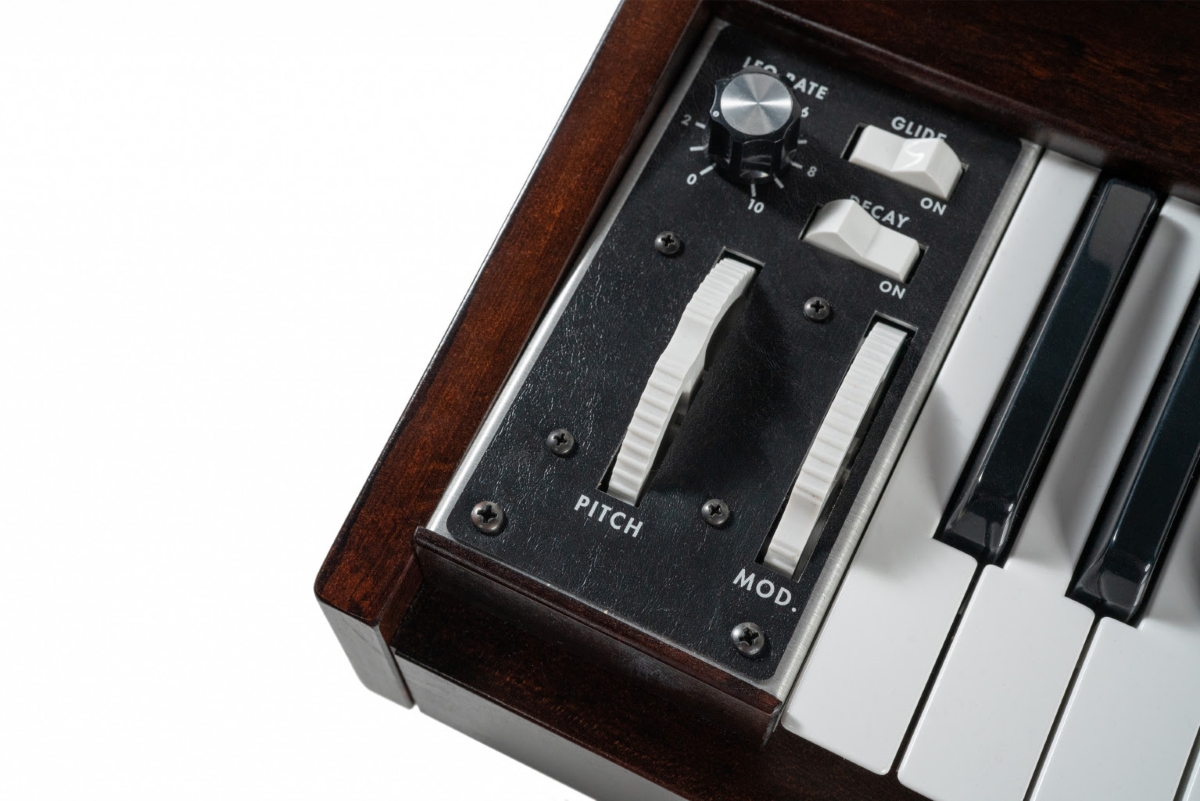

time in its history, the Minimoog Model D now features a spring-loaded pitch wheel with center deadband, allowing for improved playability and wild performance flourishes

Technisch papier

Aantal toetsen Minder dan 49 toetsen
Soort synthesizer Analoog
Toetsensoort Lichte toetsen

FILTER KEYBOARD TRACKING: ?, ?, 1:1
CONTOUR ATTACK TIME: 1 millisecond to 10 seconds
CONTOUR DECAY TIME: 4 milliseconds to >35 seconds
CONTOUR SUSTAIN LEVEL: 0 to 100% of Contour peak
FILTER CONTOUR WIDTH: 0 to 4 Octaves
VOLTAGE CONTROLLED AMPLIFIER: Loudness Contour Dynamic Range 80 dB
EXTERNAL AUDIO INPUT VOLTAGE: +10 millivolts (min); +10 volt (max.)
EXTERNAL AUDIO INPUT NOMINAL IMPEDANCE: 1000K Ohms
HIGH AUDIO OUTPUT: Typical Voltage: 0.5 volts / Maximum Voltage: 4.2 volts
(peak-to-peak)
HIGH AUDIO OUTPUT NOMINAL IMPEDANCE: 3K Ohms
LOW AUDIO OUTPUT: (30 dB below High level): Typical Voltage: 15 millivolts
LOW AUDIO OUTPUT NOMINAL IMPEDANCE: 1K Ohms
HEADPHONE OUTPUT VOLTAGE: Maximum 0.3 volts
HEADPHONE OUTPUT IMPEDANCE: 8 Ohms
GLIDE RATE: 1 millisecond to 10 seconds
PITCH BEND RANGE: (+/-) 7 semitones (minimum)

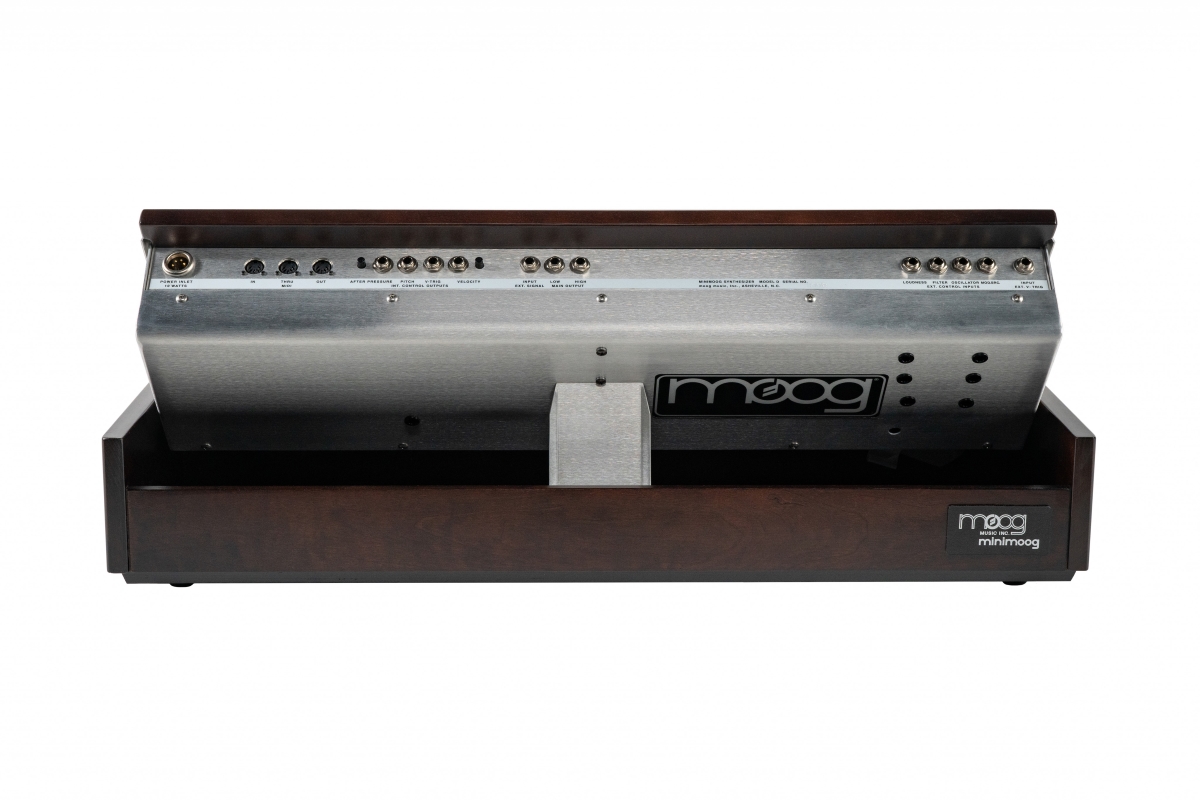

AFTER PRESSURE CV OUTPUT (¼”TS): 0 to +5 volts with user adjustable trimpot
PITCH CV OUTPUT (¼”TS): -3 volts to +7 volts (C=0 volts)
GATE OUTPUT (¼”TS): 0 to +5 volts
VELOCITY OUTPUT (¼”TS): Selectable 0 to +5 volts or 0 to +10 volts with user adjustable trimpot.
LOUDNESS INPUT (¼”TRS): 0 to +5 volts; +5 volts = Unity Gain (Works with Moog
EP-3 Expression Pedal)
FILTER CUTOFF INPUT (¼”TRS): 1 volt per octave of change (Works with Moog EP-3 Expression Pedal)
OSCILLATOR PITCH INPUT (¼”TRS): 1 volt per octave of change (Works with Moog EP-3 Expression Pedal)
MODULATION SOURCE INPUT (¼”TRS): Ring=Noise Send; Tip=Modulation Receive
(This jack makes a normalled connection with no cable present.)
TRIGGER INPUT (¼:TS): +5 volt V-Trigger Activates both Contour Generators
MIDI INPUT (5-PIN DIN): Note On & Note #
MIDI OUTPUT (5-PIN DIN): Note On, Note #; Velocity; Aftertouch, Modwheel, Pitch-bend
MIDI THRU (5-PIN DIN): Mirror of the MIDI In signal
EXTERNAL POWER SUPPLY: Self-switching; 100–240 volts; 50/60 Hz; <12 Watt nominal consumption. (Locking XLR-4 connector.)
DIMENSIONS (with panel lowered): Width: 28.625” / 727 mm, Depth: 17.125” / 435 mm,
Height: 5.75” / 146 mm.
NET WEIGHT: 32 lbs. / 14.5 kg.
STORAGE TEMPERATURE: 5F to 140F (2C to 60C)
NOMINAL OPERATING TEMPERATURE: 10 – 35 C (50 – 95 F)
OPERATING TEMPERATURE: 10 – 50 C (50 – 122 F)
