Expander

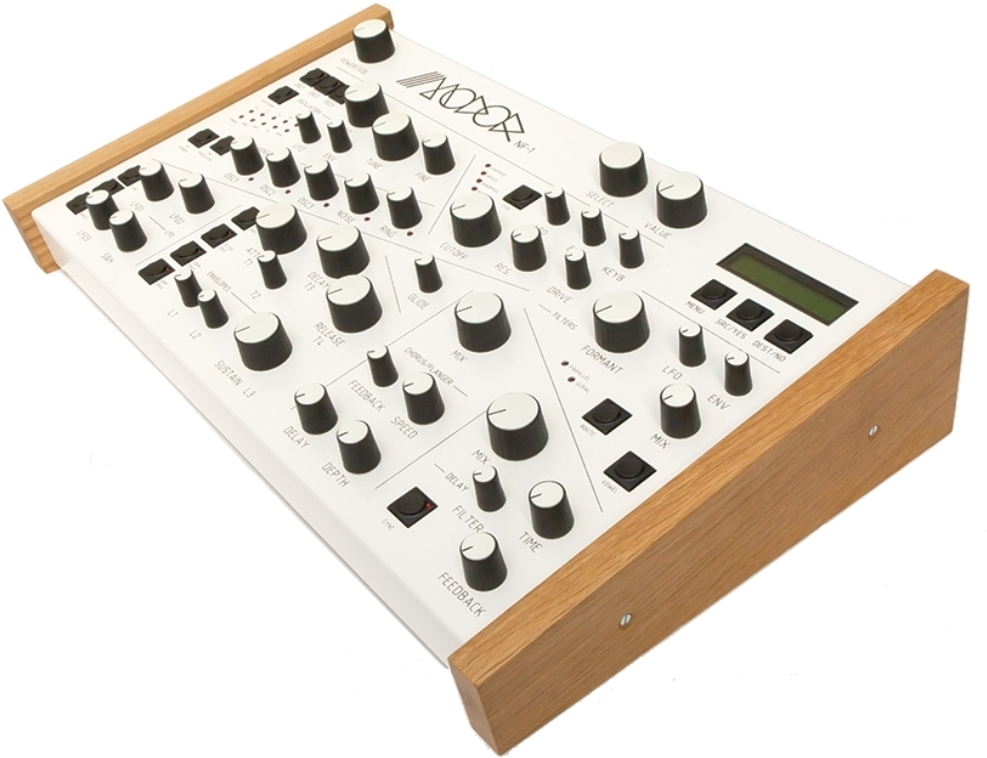

The Modor NF-1 synth is a digital DSP synth very comparable to the classic Virtual Analog synths, but Modor is moving further on from this point. We use the classic structure of VA-synths, with oscillators, filters and effects, with parameters that can be modulated using LFO's and envelopes. But every element has been rethought and reinvented. In a digital way.

The NF-1 has a classic 12dB/oct resonant filter / versatile formant filter.
It does make classic sawtooth waves, but it is able to modulate noisy waveforms!
It has a classic delay effect, but we make every parameter editable to give way to special unexpected effect types! And so on...

Technisch papier

Soort expander Analoog

POLYPHONY
8 voices
Poly, Mono and Mono-legato modes
MEMORY
448 patches, 14 banks [A-N] of 32 patches
All factory presets overwritable
CONNECTIONS
9V, 600mA adapter connection, positive voltage on center pin
MIDI IN/THRU/OUT connections, 3x 5-pin DIN connection
Audio Left and Right outputs, 6.35mm mono jack
Sustain switch, 6.35mm mono jack
Volume/modulation pedal, 6.35mm stereo jack
FRONT PANEL CONTROLS
42 rotary knobs
20 pushbuttons
1 rotary encoder
1 Power switch/volume knob
DISPLAY
16x2 green backlit LCD display
MIDI
Full realtime MIDI control of all sound parameters
Pitch Bend, Modwheel (CTRL#1), Expression pedal (CTRL#7), Velocity and Aftertouch can be used as modulation sources
MEASUREMENTS
Width: 440mm without rack ears, 480mm with rack ears (19")
Height: 267mm (10.5"/ 6U)
Depth: 40mm (front) - 80mm (back)
RACKMOUNTABLE
Height: 6 rackunits
Recessed backside connections to ease rack mounting (no lost rackspace above)
Rack mounting ears included
UPDATE
Use of less 'wobbly', more stable feeling potentiometers
Improved DAC gives a 12dB lower noise-floor
Improved EMC-design (CE and FCC approval should follow soon)
Line out is now capable of driving a headphone (Left line output doubles as stereo headphone out)
A Midi USB connector has been added
