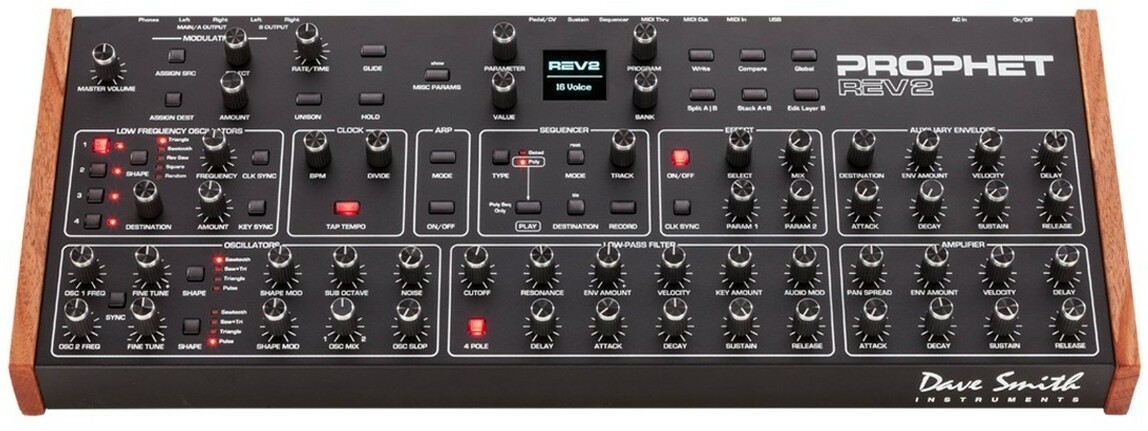

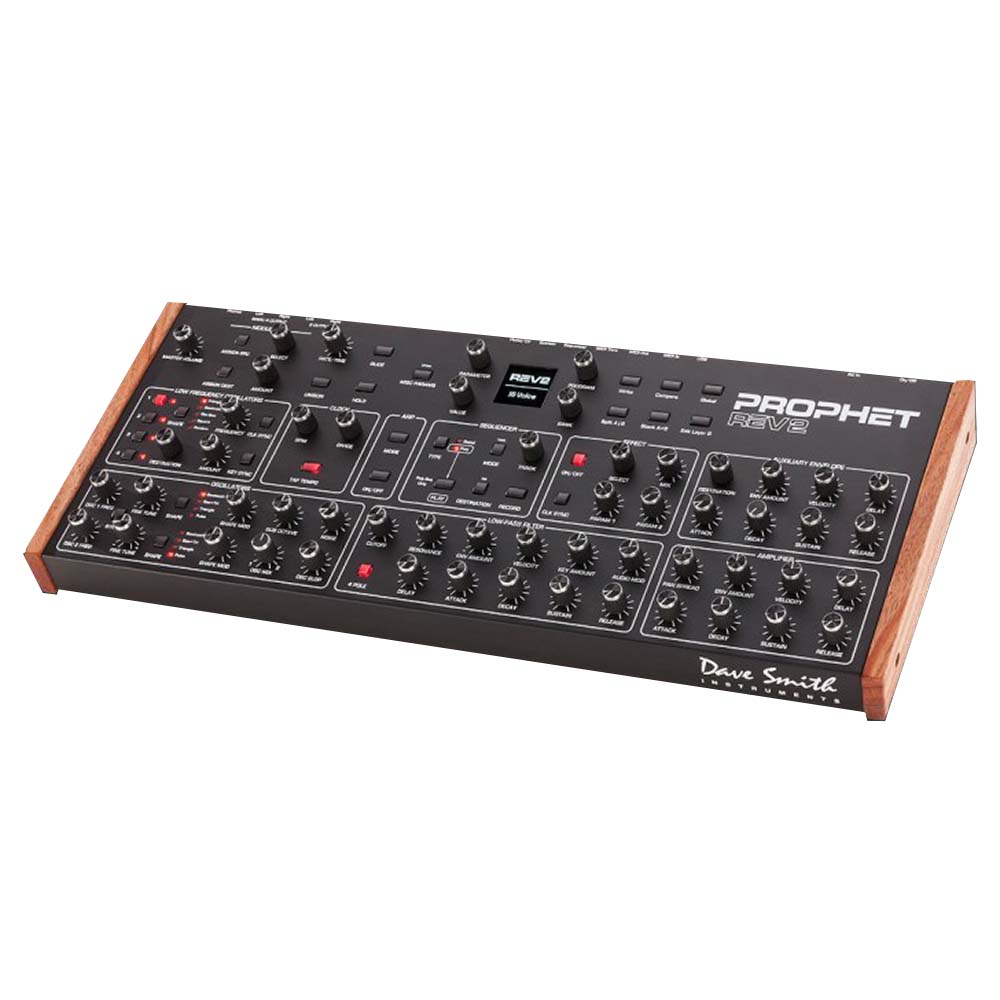

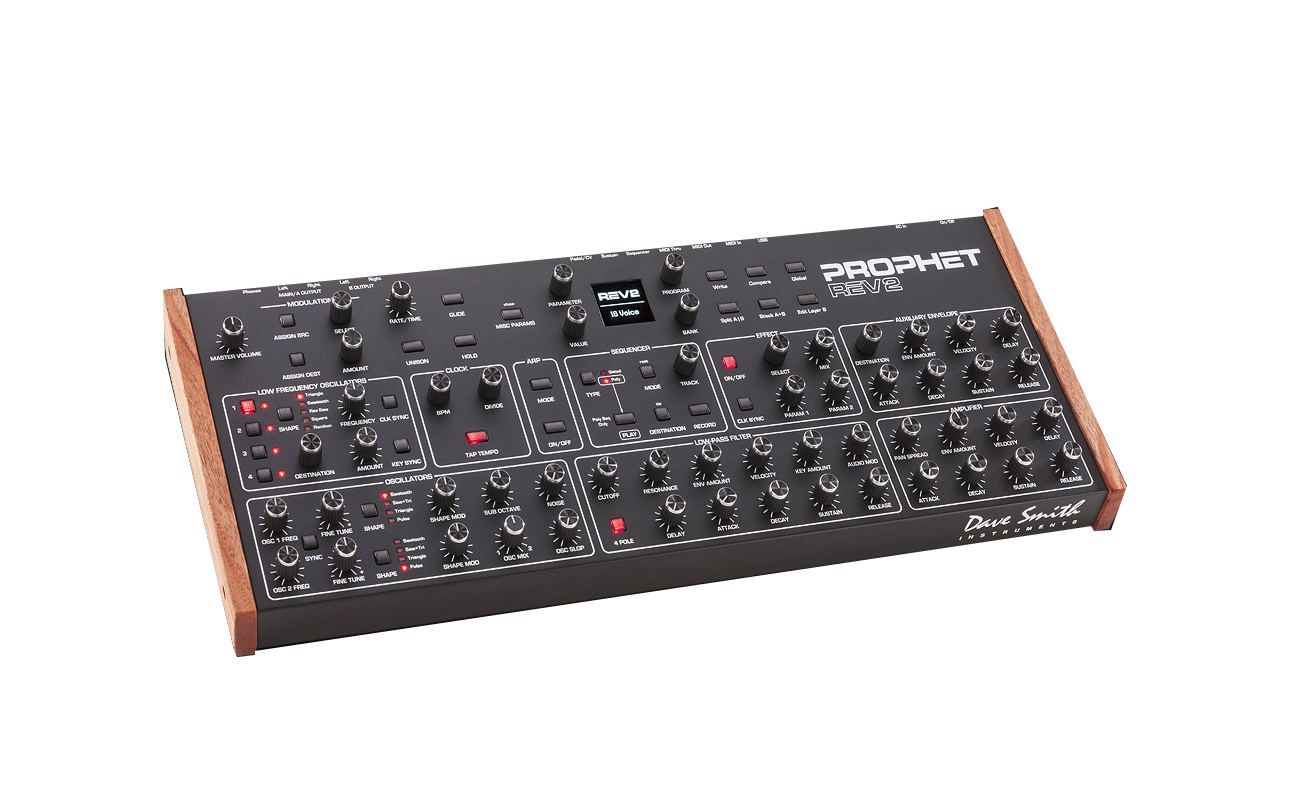

Sequential Prophet Rev2-8 Module

Lees recensies (0)
Gerelateerde accessoires
Vergelijkbare producten

1799,00 €

Gratis bezorging
Gegarandeerd lage prijzen
Tevreden of terugbetaald
3 jaar garantie
Ref : 77390

Laatst stuk

1 Kamer beschikbaar.

Binnen 2 à 3 dagen verzonden

Voorraad in de winkel

Zie beschikbaarheid. winkel

Star's Music Paris

Andere versie(s) of bijbehorende product(en)

Het merk Sequential

Leer meer over het merk Sequential en ontdek de volledige catalogus.

Ontdekken

Koopgids voor synthesizers en drummachines

De ultieme koopgids voor het kiezen van je nieuwe synthesizer of je nieuwe drummachine.

Consulteren

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

+33 181 930 900 email

Expander

The Dave Smith Prophet Rev2 desktop module is just as powerful and easy to use as its counterpart, the Prophet Rev2 keyboard. The module has the same controls with the same the same ease of use as the keyboard version. Best of all, it sounds just as awesome, because it’s exactly the same on the inside — Dave Smith’s reimagining of his now-classic Prophet ’08 poly synth.

The Prophet Rev2 retains all of the key features of the Prophet ’08 and expands on them. It has twice the polyphony, twice the mod matrix, waveshape modulation on all waveforms, digital effects per layer in stacked or split voice mode, a polyphonic step sequencer per layer, and more. The result is a true analog powerhouse.

Technisch papier

Soort expander Analoog

OSCILLATORS
2 digitally controlled analog oscillators (DCOs) per voice (plus sub octave on oscillator 1) with selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation)
Glide (portamento): separate rates per oscillator
White noise generator
Analog VCAs
Hard sync
FILTERS
1 analog Curtis low-pass filter per voice, selectable 2- and 4-pole operation (self-resonating in 4-pole mode)
ENVELOPES
3 envelope generators: filter, VCA, and assignable (four-stage ADSR + delay); Envelope 3 can loop.
SEQUENCER
Polyphonic step sequencer with up to 64 steps (6 notes per step), and ties and rests. Separate 16 x 4 gated step sequencer. Each layer can have a separate sequence.
LFOS
4 LFO’s with key sync per LFO
MODULATION
8-slot modulation matrix
22 sources
53 destinations
5 additional dedicated sources: mod wheel, pressure, velocity, breath controller, footswitch
ARPEGGIATOR
Programmable arpeggiator with up, down, up+down, random, assign modes
Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
One, two, or three octave range
Re-latching arpeggiation
Note repeat
CONTROLS
55 knobs and 35 buttons enable deep and comprehensive editing with little to no menu diving.
MEMORY
512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program

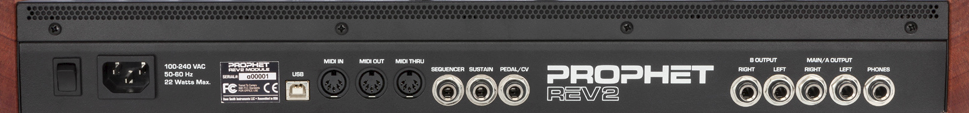

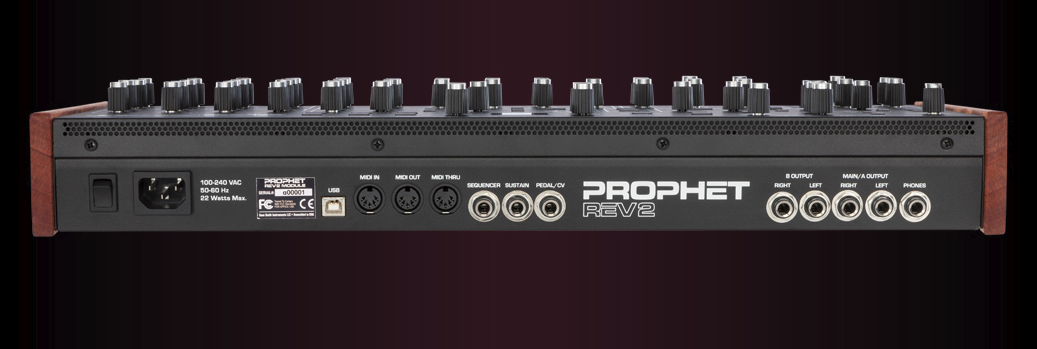

IN/OUT
MIDI In, Out, Thru
Main stereo audio output: 1/4? unbalanced
Output B stereo audio output: 1/4? unbalanced
Sustain pedal input: accepts normally on or normally off momentary footswitch.
Pedal/CV input: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages).
Headphone output: 1/4? stereo phone jack.
POWER
IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz
Power consumption: 22 watts maximum (17 watts for 8-voice configuration; 22 watts for 16-voice configuration)
PHYSICAL SPECS
Oiled African mahogany wood end panels
Dimensions: 7.9? (20 cm) W x 21.6? (54.8 cm) L x 3.3? (8.4 cm) H
Weight: 7.5 lbs. (3.4 kg)
