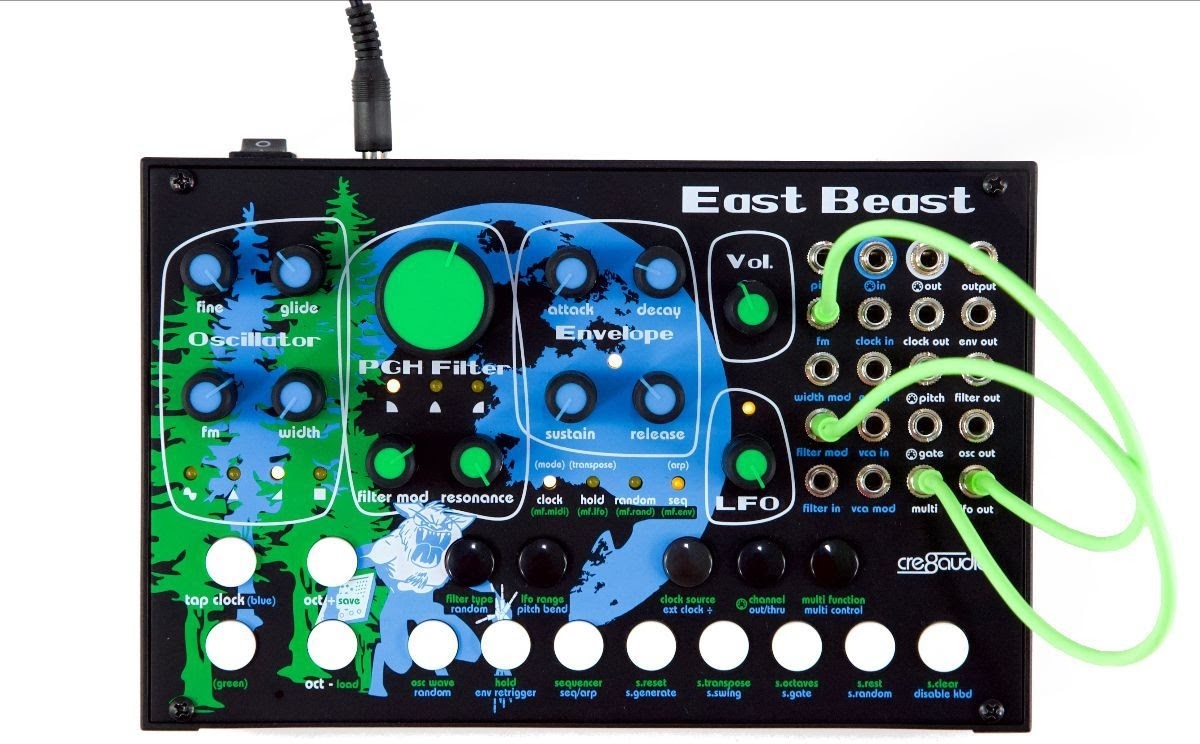

Cre8 audio East Beast

Ref : 103260
- Soort expander : analoog
East Coast style monophonic subtractive synthesizer.
Controllable via MIDI, CV, and built-in button keyboard
Fully patchable - use East Beast components as separate modules with external devices or reroute its internal patching. It's like having 9 individual modules (oscillator, filter, envelope, VCA, LFO, multi-mod tool, sequencer, MIDI to CV converter, and button keyboard).
32-step sequencer with up to 13 presets
Generative sequencing mode
Clock-synchronized arpeggiator
The step sequencer can be manipulated and transposed via MIDI and the built-in button keyboard.
Pittsburgh Modular Synthesizer developed 100% analog oscillator
Oscillator waveforms - sine, triangle, saw, square and noise - waveforms can be combined.
The oscillator includes pulse width modulation (PWM) and frequency modulation (FM).
PGH "No-Dead-Spots" variable-state, multi-mode filter (low-pass, band-pass, high-pass, combinable modes).
Analogue envelope generator
Built-in VCA
Dual range analogue LFO with triangle wave output
Digital multi-modulation tool - CV modulation control, random generator, and additional LFO and envelope generator
Internal clock with tap tempo and can be clocked by an external source
Built-in clock divider
Can be used as a stand-alone unit in its included case or removed and used as a module in eurorack format
Specifications for use as a eurorack module
Width when used as a module = 40hp
Depth when used as a module = 25mm
213mA power consumption with +12V rail
151mA power consumption with -12V rail
Oscillator input voltage range = 0-10V
Included in the box - 1x East Beast, 1x East Beast wall-wart power supply, 5x Amazing Nazca Noodles Patch Cables, 1x 3.5mm to 5 pin MIDI Din pigtails, and love (love's presence likely, but not guaranteed)
