System 500 componenten

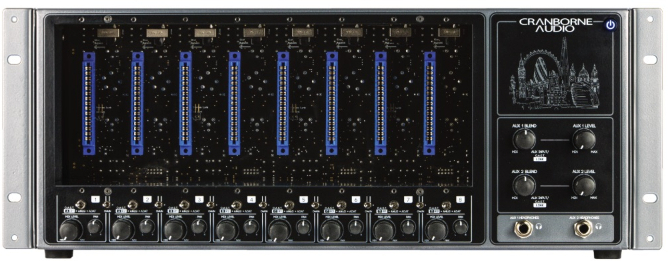

The Cranborne Audio 500ADAT is more than just an A/D-D/A converter: it's an ultra-versatile modular audio solution designed for demanding studios. Featuring an integrated 8-slot 500 Series rack, high-end audio converters, analog mixing capabilities, and advanced monitoring features, it allows you to expand an ADAT audio interface while maintaining exceptional audio quality.
The 500ADAT transforms your 500 rack into a true audio production center: recording, converting, latency-free mixing, and precision monitoring—all at your fingertips.
The 500ADAT transforms your 500 rack into a true audio production center: recording, converting, latency-free mixing, and precision monitoring—all at your fingertips.
Lire la suite
Technische Specificities
- Audio Conversion
- 8 analog inputs / 8 outputs:
- 44.1 kHz – 48 kHz: 8 in / 8 out
- 88.2 kHz – 96 kHz: 8 in / 8 out
- 176.4 kHz – 192 kHz: 4 in / 4 out
- Conversion Performance
- Dynamic Range: 121 dB A-weighted (AES17, 20 Hz – 20 kHz)
- Frequency Response: -1 dB from 2.2 Hz to >80 kHz
- THD+N: <0.00032% (-110 dB) @ -4 dBFS, 1 kHz
- Maximum Input/Output Level: +24 dBu
- Internal Clock and Synchronization
- Supported Frequencies: 44.1 to 192 kHz
- Ultra-low Jitter: <0.5 ps
- Word Clock I/O via BNC
- External synchronization via Word Clock or ADAT
- Analog Mixing and Zero Latency
- 8-into-2 analog mixer:
- Headroom: +26.5 dBu
- Balanced 1/4" jack outputs
- Expandable to 16-into-2 via C.A.S.T. port. Link
- Zero-latency mixing:
- Physical level and pan control per channel
- DAW monitor mix control
- Headphone monitoring
- 2 high-power headphone outputs with independent adjustments:
- THD+N: <0.0006% (-104.4 dB) @ +20 dBu
- Frequency response: <1 Hz to >70 kHz
- Power:
- 250 mW x2 @ 600 Ω
- 650 mW x2 @ 220 Ω
- 1.21 W x2 @ 100 Ω
- 500 mW x2 @ 32 Ω
- Integrated 500 Series Rack
- 8 slots with dedicated power supply:
- 250 mA per slot (2 A total)

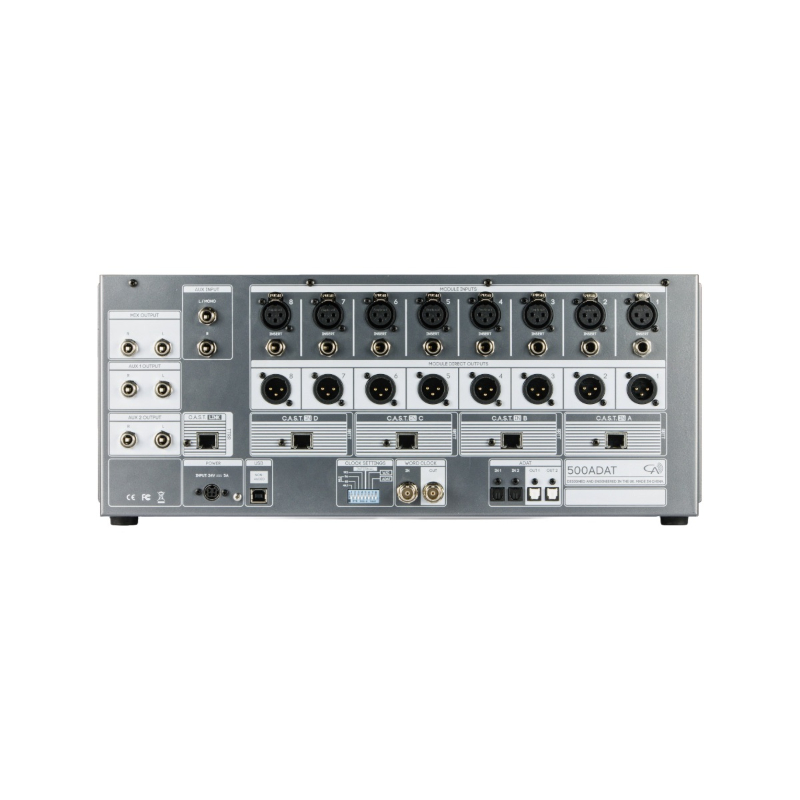

- Connections:
- XLR inputs, XLR outputs, TRS inserts (pre-ADC)
- Flexible routing: analog, USB, or C.A.S.T.
- Bypass 500 modules for independent use
- C.A.S.T. compatibility
- C.A.S.T. ports for relocating analog I/O via shielded Cat 5 cable, with passive or active enclosures
- Power supply
- External 24V, 5A power supply with locking connector
- Design optimized for audio performance and heat dissipation
- Manufacturing
- Designed and manufactured in the UK
- Individually tested to ensure optimal reliability
