Cameo Studio Par 6 G2
- Lees recensies (0)
Dit artikel is niet meer beschikbaar te koop.
In voorraad
Binnen 8-10 dagen verzonden
Voorraad in de winkel
Niet verkrijgbaar in de winkel
Het merk Cameo
Leer meer over het merk Cameo en ontdek de volledige catalogus.
Het grootste netwerk van winkels in Frankrijk
Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.
Neem contact op met een deskundige
Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.
Beschrijving

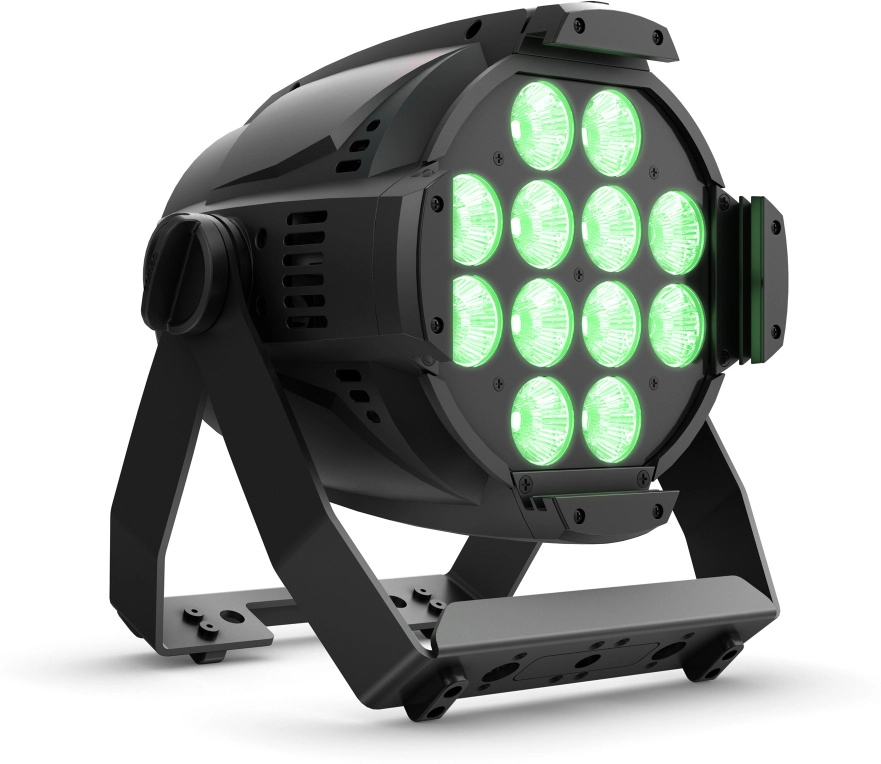

The Cameo Studio PAr 6 G2 is an LED PAR projector with 12 LEDs RGBAWUV 6 in 1.
12 x 12 W RGBAWUV 6-in-1 LEDs with a luminous flux of 4700 lm.
New design with numerous workflow optimisations.
Optional pulse width modulation (up to 25 kHz) for flicker-free lighting.
Virtually silent operation in "Silent Fan mode
Intuitive holding mechanism for colour filter frame
Wireless control via W-DMX™ using the optional iDMX Cameo key
Simple configuration via OLED display
PowerCON compatible power outlet
Optional 16mm folding TV pin (SPIN16®) can be retrofitted
12 x 12 W RGBAWUV 6-in-1 LEDs with a luminous flux of 4700 lm.
New design with numerous workflow optimisations.
Optional pulse width modulation (up to 25 kHz) for flicker-free lighting.
Virtually silent operation in "Silent Fan mode
Intuitive holding mechanism for colour filter frame
Wireless control via W-DMX™ using the optional iDMX Cameo key
Simple configuration via OLED display
PowerCON compatible power outlet
Optional 16mm folding TV pin (SPIN16®) can be retrofitted
Lire la suite
Technisch papier
- LED PAR projectors
- Type :Studio PAR
- Colour spectrum :RGBWA + UV
- Number of LEDs :12
- LED type :6in1 RGBAWUV 12 W SMD LED
- Luminous flux :4700 lm
- Angle of dispersion
- Field angle: 35°, Beam angle: 21
- Lens 12 x acrylic lens
- LED frequencies (PWM)
- 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
- Dimmer resolution: 16 bit
- Dimming curves
- Square, Exponential, Linear, Logarithmic
- Strobe: 0 - 20 Hz
- CRI
- >74Ra
- DMX input: 3-pin, iDMX slot
- DMX output :3-pin
- DMX modes :1 channel, 10 channel, 12 channel, 14 channel, 18 channel, 3 channel, 4 channel, 6 channel, 9 channel
- DMX functions
- colour macro, Dimmer, Dimmer Curve, EZ-Chase, System settings, RGBWA, Strobe, UV
- Stand-alone modes
- Auto mode, Static mode
- System Settings
- Calibration, Dimmer, LED PWM Frequency, Fan Mode, Default Settings, Displays, Dimmer Response, Signal Fail, Wireless
- Settings
- 4 x Buttons, Down, Enter, Up, Menu
- Indicators
- OLED display
- Relative humidity
- < 80 %, no condensation
- IP Class
- IP20
- Ambient temperature
- -10 - 40 °C
- Cooling
- Convection, silent fan
- Mains voltage
- 100 - 240 V, 50 - 60 Hz
- Mains connector
- PowerCon Blue I/O
- Fuse
- T2A
- Max. Power consumption
- 125 W
- Housing
- Die-cast aluminium
- Enclosure surface
- Powder coated
- Enclosure colour
- black
- Height (mm)
- 360 mm
- Width
- 310 mm
- Depth
- 250 mm
- Weight
- 5,1 kg
