Digitale mengtafel

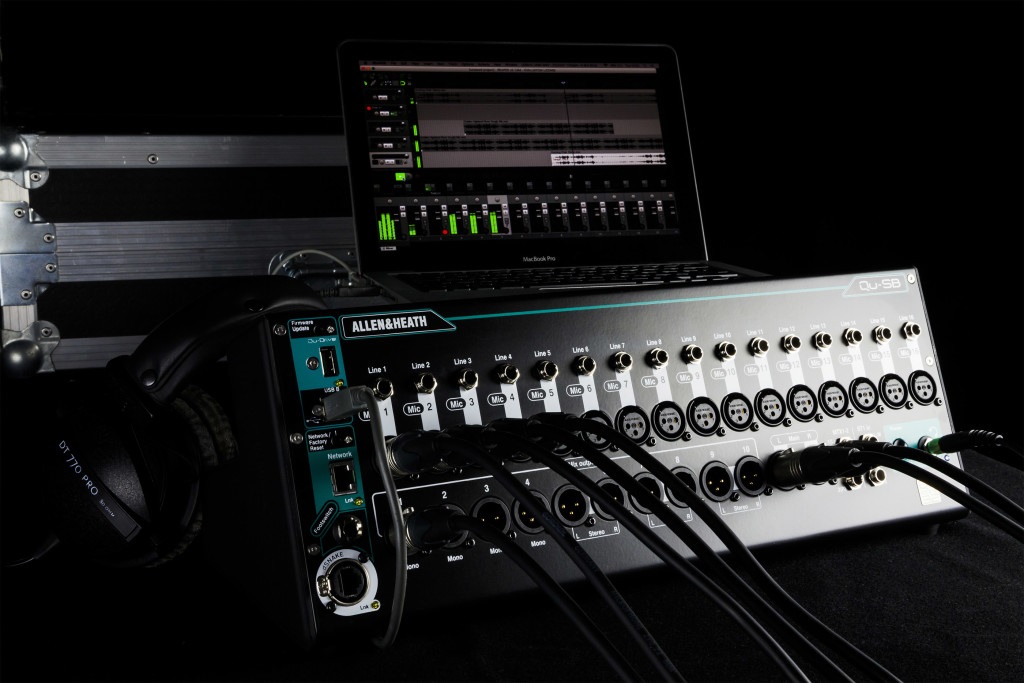

Qu-SB is an ultra-compact digital mixer / interface, designed for iPad control, freeing you to mix from anywhere in the venue and providing a smart, portable solution for bands, AV and installation.

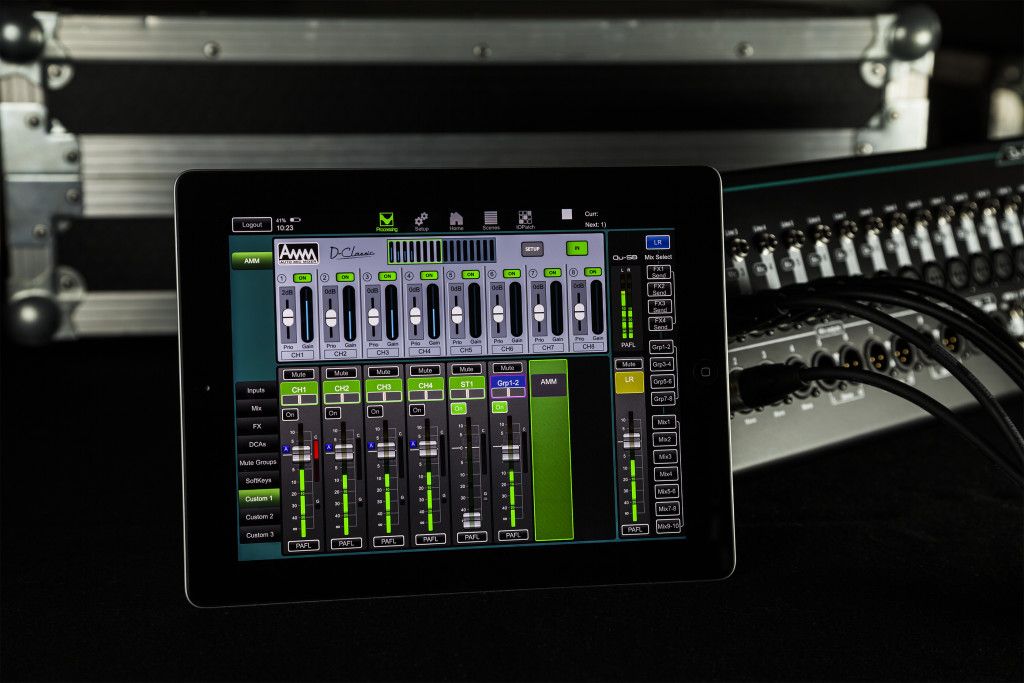

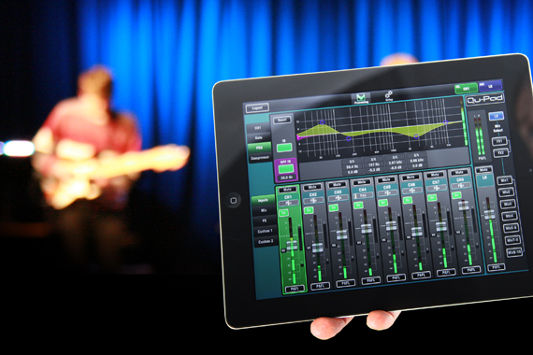

The Qu-Pad app is a beautifully elegant, intuitive mixing interface, giving easy access to the full wealth of Qu features and setup options.

On top of its 18 onboard inputs and 14 outputs, Qu-SB can be expanded up to 32 mono inputs and 24 outputs by connecting to one of our family of remote AudioRacks over a single Cat5 cable. Couple this with the Qu-You personal monitoring app for Android and iOS, plus the ME-1 personal mixers, and Qu-SB is a fantastic choice for bands looking for the same great monitor sound wherever they play.

Technisch papier

Aantal kanalen mengtafel 10 tot 22 kanalen

16 Mono Inputs (TRS + XLR)
1 Stereo Input (TRS)
12 on-board Mix Outputs (LR, Mono Mix 1-4, Stereo Mix 1-3)
1 Stereo Matrix Out (TRS)
Qu-32 Core inside (32 Mono + 3 Stereo Input Channels)
Up to 11 Monitor Mixes (4 mono + 7 stereo)
4 FX Engines
4 FX Sends / Returns
4 Mute Groups
4 DCA Groups
Recallable AnaLOGIQTM Preamps
iLive FX Library
dSNAKE Remote Audio Port expansion up to 38 inputs
Automatic Mic Mixer
32×32 USB Audio Interface
Qu-Drive direct Multitrack Recording / Playback on USB drives
Compatible with ME Personal Mixing System
Qu-Pad iPad App
Qu-You iPhone / Android personal monitoring app
Trim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor and delay on all Inputs
Insert, 1/3 octave GEQ, 4-band PEQ, compressor and delay on all Mix outputs
Built-in Signal Generator
RTA with Peak Band indication
19” Rack Mountable with optional rack ears
Qu-SB - Without box
Width - 435.5mm/17.2"
Depth - 174.5mm/6.9"
Height - 161.8mm/6.4"
Weight - 4.5kg/9.9lbs
Qu-SB - With box
Width - 550mm/21.7"
Depth - 270mm/10.6"
Height - 270mm/10.6"
Weight - 5.75kg/12.7lbs
