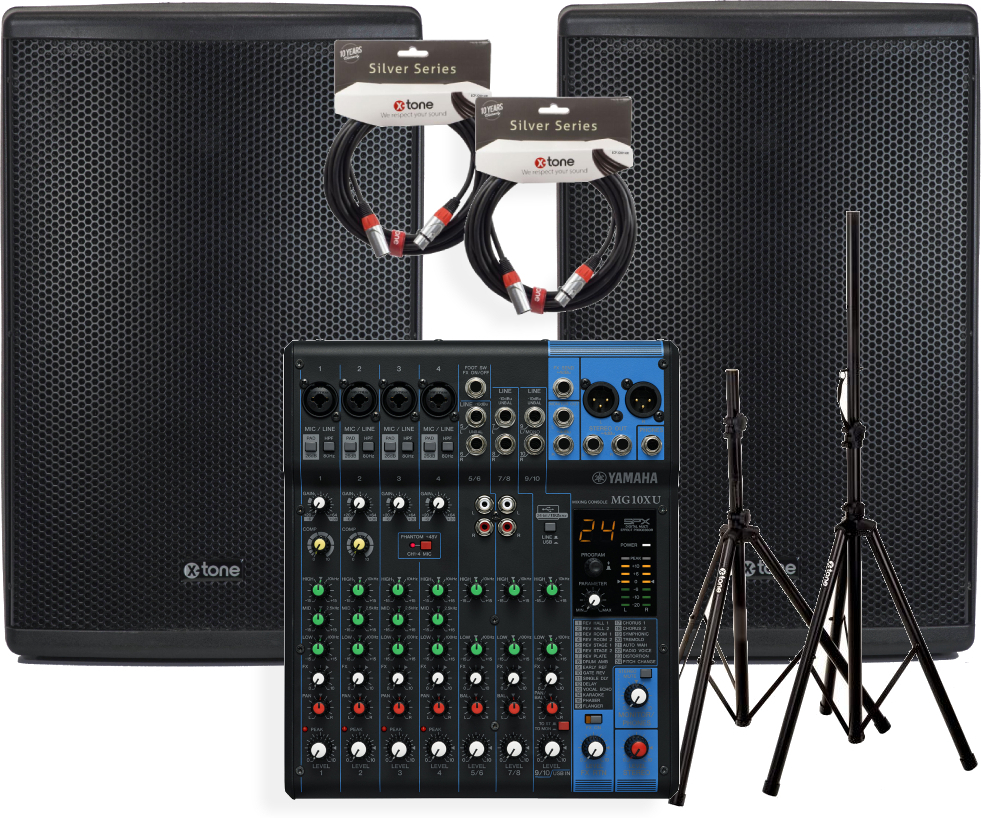

Yamaha Mg10Xu + 2x Xts12 + Xlr Xlr 6M+ Stand

Lees recensies (0)
Gerelateerde accessoires
Vergelijkbare producten

901.00 €

864,00 €

Gratis bezorging
Gegarandeerd lage prijzen
Tevreden of terugbetaald
3 jaar garantie
Ref : 92375

In voorraad

binnen 24 uur leverbaar

Voorraad in de winkel

Niet verkrijgbaar in de winkel

Het merk Yamaha

Leer meer over het merk Yamaha en ontdek de volledige catalogus.

Ontdekken

Het grootste netwerk van winkels in Frankrijk

Vind alle informatie over onze superstores en onze gespecialiseerde boetieks.

meer te weten komen

Neem contact op met een deskundige

Onze muzikanten en enthousiaste teleconsulenten staan ??klaar om al je vragen te beantwoorden.

+33 181 930 900 email

Pa systeem set

Here comes the third generation of MG series with the Yamaha MG10XU mixing console, with 10 channels and 4 Mic inputs, this table is most versatile for its size.

Intuitive and easy-to-use, the solid design and capacities of those tables allows you to deliver top-notch performance.
Use the USB interface 2.0 with 24-bit/192kHz sampling to record in stereo high-res.

With its high quality D-PRE preamp, its outstanding durability, and compressors coupled to the first channels for a better sound dynamic, this mixing console will satisfy every musician.

Technisch papier

Kracht PA luidsprekers 601 tot 1000 watt RMS
Soort PA-luidspreker Stage en FOH monitor

I/O
Phantom power : +48 V
Digital I/O
USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels
Mono[MIC/LINE] : 4
Stereo[LINE]: 3
Output Channels
STEREO OUT : 2
MONITOR OUT : 1
PHONES : 1
AUX SEND : 1
Bus
Stereo: 1, AUX[FX]: 1
Input Channel
Function :
PAD : 26 dB (Mono)
HPF : 80 Hz, 12 dB/oct (Mono)
COMP :1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH : Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID : Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW : Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter : 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
General specifications
Total harmonic distortion : 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response : +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk : -83 dB
Power requirements : PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption : 22.9 W
Dimensions
W: 244 mm (9.6")
H : 71 mm (2.8")
D : 294 mm (11.6")
Net weight : 2.1 kg (4.63 lbs.)
Accessories :
Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5
Others
Operating Temperature: 0 to +40?C
